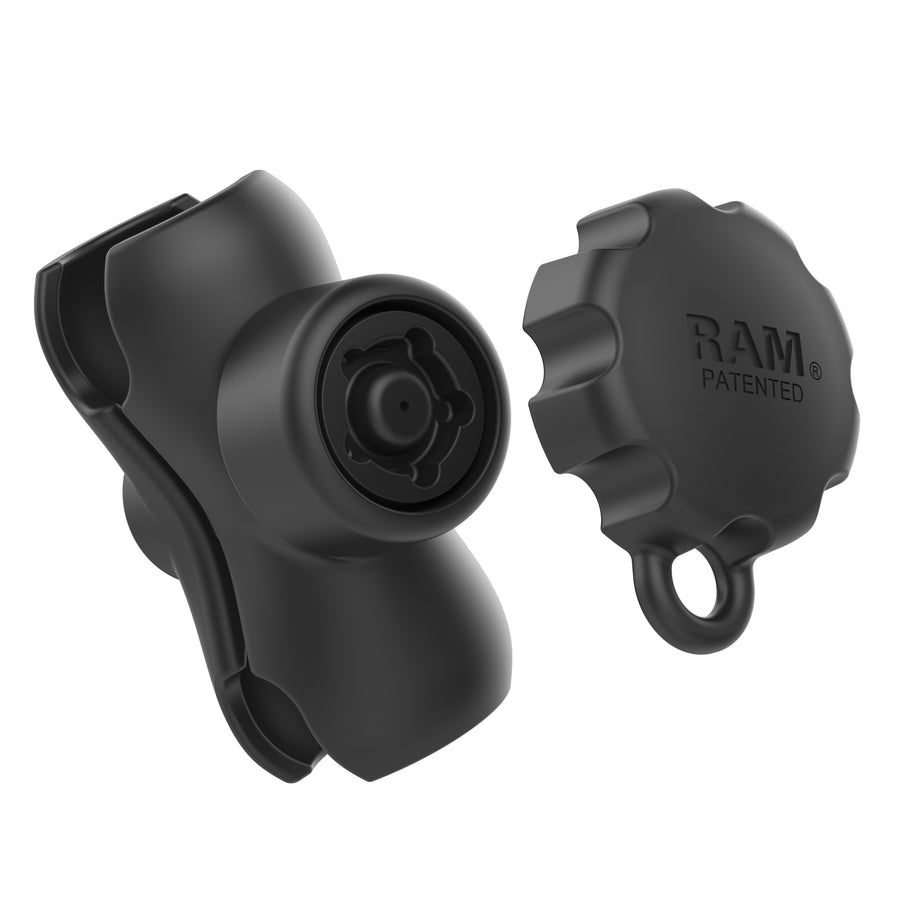

RAM® Double Socket Arm with RAM® Pin-Lock™ 5-Pin Security Knob - C Size

Part #: RAM-201-BS-KEY5U UPC: 793442011498

Features

Short RAM® double socket arm provides an ideal overall length of 3.56" and a socket-to-socket length of 2.5"; includes RAM® Pin-Lock™ security knob and key
Attaches to any C size RAM® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Double Socket Arm with RAM® Pin-Lock™ 5-Pin Security Knob - C Size

Product Information

Overview

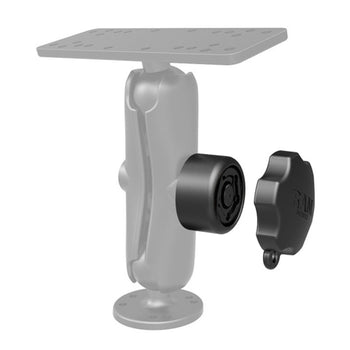

This C size short double socket arm includes a RAM® Pin-Lock™ locking knob for theft deterrence. The socket arm consists of a 1.5" diameter socket size compatible with C size ball bases and adapters. RAM® Pin-Lock™ security solutions are designed to withstand the harshest environments and keep devices locked to the mounting area; perfect for tablet mounts, fishfinder mounts and other larger devices. With an emphasis on aesthetics and function, RAM® security nuts & knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of traditional key locking knobs, the additional peace of mind and tamper resistance comes at a very affordable price.

Specifications
hardware included	(1) Pin-Lock Security Key
product dimensions	Overall Length: 3.56"
socket to socket length	2.5"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.63 lb

RAM® Double Socket Arm with RAM® Pin-Lock™ 5-Pin Security Knob - C Size

Name: RAM® Double Socket Arm with RAM® Pin-Lock™ 5-Pin Security Knob - C Size
Brand: RAM Mounts
SKU: RAM-201-BS-KEY5U
Price: 36.49 USD
Availability: InStock

Part#: RAM-201-BS-KEY5U

UPC: 793442011498

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
