Patented & Pats. Pend.

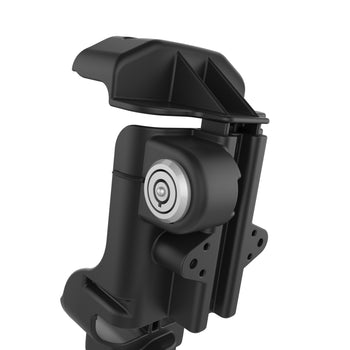

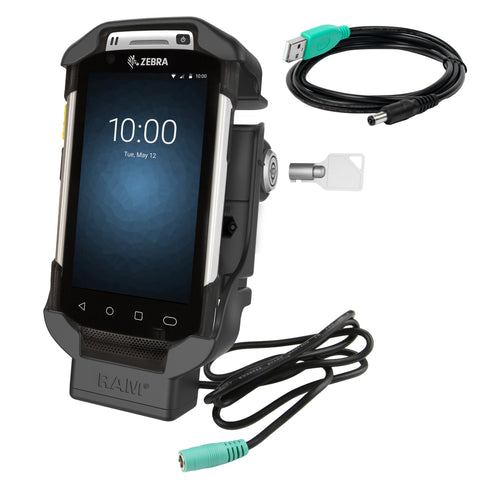

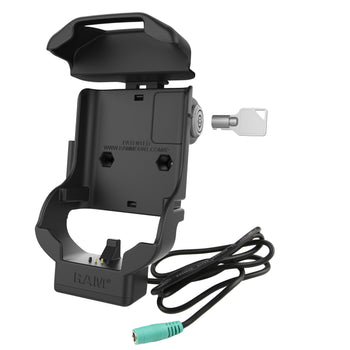

RAM® Key-Locking Form-Fit Powered Dock for Zebra TC70, 72, 75 & 77
Part#: RAM-HOL-ZE7LU
UPC: 793442008986
$159.49

Overview

This locking, spring-loaded cradle with stylus holder allows you to secure your Zebra TC70, TC72, TC75, or TC77 with or without the Zebra Handstrap accessory. To lock, simply insert the device and push the button. The cradle is compatible with RAM® two-hole AMPS pattern diamond bases that will connect to B and C size ball mounts, allowing for a wide variety of mounting options (hardware included). For charging capabilities, this cradle is compatible with the RAM-GDS-CHARGE-V7B1U for hardwire applications or the RAM-POW-CIG-M55 cigarette charger.

Features

  • Spring-loaded key-locking form-fit dock perfectly secures the Zebra TC70, TC72, TC75, or TC77; provides power through 1-meter long DC connector
  • Compatible with the Zebra Handstrap accessory
  • Compatible with RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

hardware included:

(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
(1) USB Type-A to DC Cable

hole pattern:

2-Hole AMPS: 1.912"

materials:

High strength composite

packaging type:

Poly Bag

input connector:

USB Type A

Warranty:

3 year warranty

Weight:

0.78 lb

Additional Information:

Chargers not included. See "Expand Your RAM®" tab to view compatible charging accessories.

Questions & Answers

Have a Question?

Ask a Question
  • I want to hard wire this cradle to my truck, which wire will I need?

    The RAM-GDS-CHARGE-V7B1U is the hardwire charger recommended for use with the RAM-HOL-ZE7LU Key-Locking Form-Fit Powered Cradle for Zebra TC70, 72, 75 & 77.
