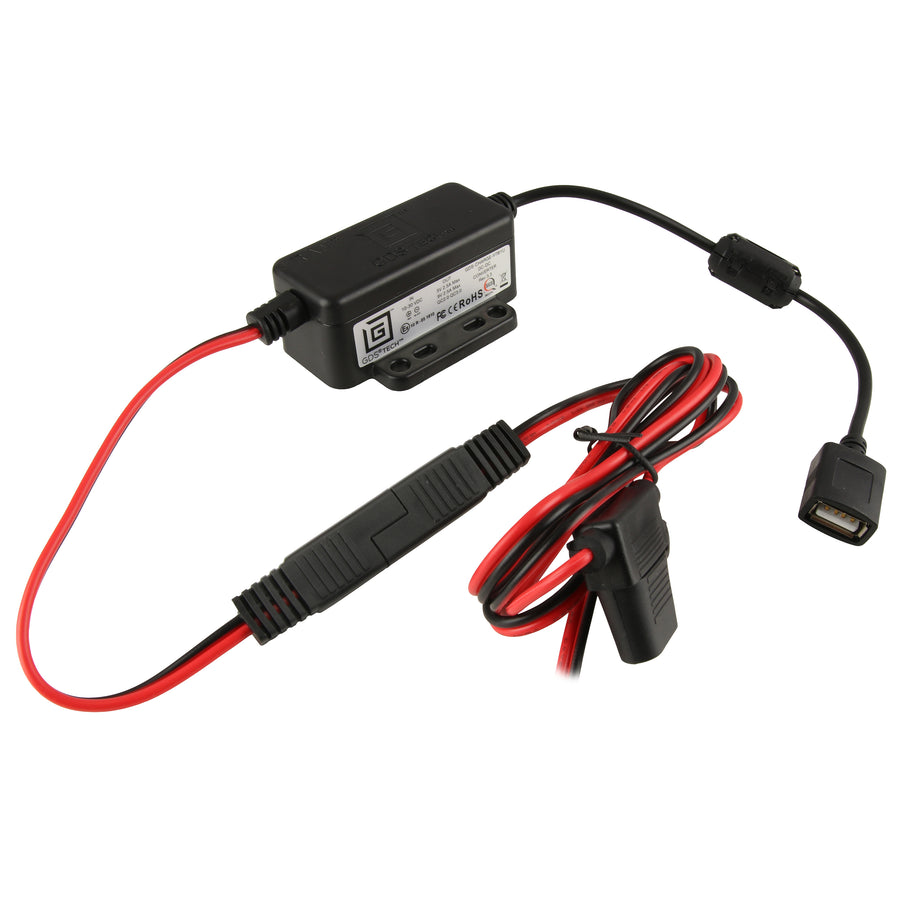

GDS® Modular 10-30V Hardwire Charger with Female USB Type A Connector
Always Protected. Always Connected.®
$37.99
Overview
The GDS® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less. Always Protected. Always Connected.®
Features
- Hardwire charger includes USB Type-A female connector
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
packaging type:
Poly Bag
input voltage:
10-30VDC
output voltage:
5-9VDC*
output current:
2.5A max
input connector:
Female USB Type A
input cable length:
1.2 Meters including 2 Pole Flat Marine Connector
output cable length:
.2 Meters
operating temperature:
-10°C to +70°C
storage temperature:
-40°C to +70°C
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications:
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty:
3 year warranty
Weight:
0.32 lb
Additional Information:
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
Instructions
Documents
Questions & Answers
Have a Question?
-
Do you offer installation instructions for this product?
No, this hardwire kit should be wired directly to your battery. Because every vehicle is different the installation steps will be different for each person. If you are not comfortable installing this kit yourself it is best to reach out to the manufacturer of your vehicle or a local mechanic for assistance.
-
Is the DCDC waterproof?
No this charger is not waterproof.
Add-on & Accessories

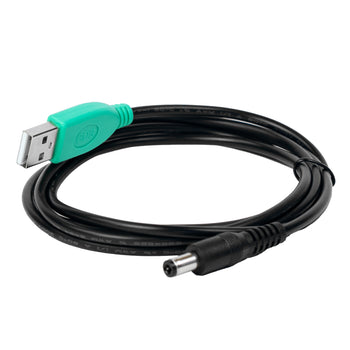

USB Type A Cables
