Overview

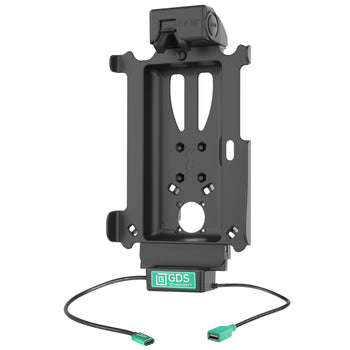

This GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCK-SAM54NCDU) is designed to support the Samsung Galaxy Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes one USB Type-A connector to support one peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Features

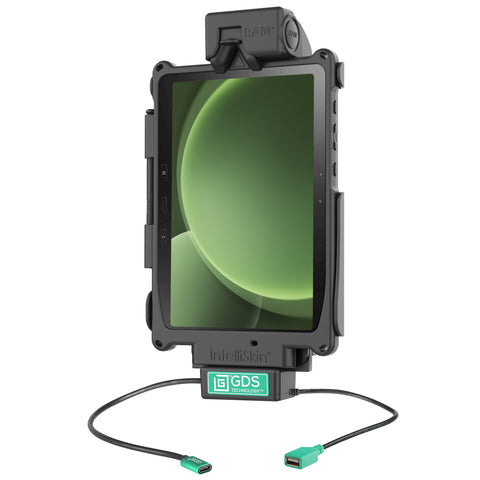

- Spring-loaded vehicle dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in an IntelliSkin® Next Gen protective sleeve

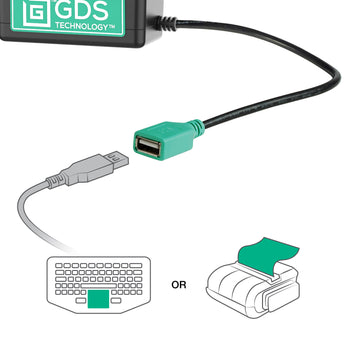

- Power delivered via USB-C connector; connect a single input device via USB-A connector
- RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand
- Backed by a 3-year warranty
hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp with Zip Ties
(1) USB Type-C to Type-A Cable

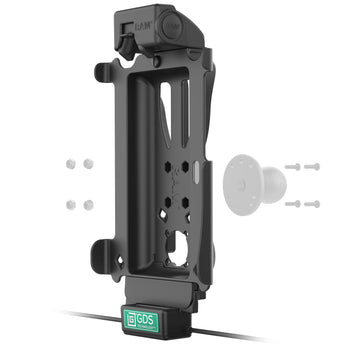

hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V - 12V @ 3A max
Peripheral: 5V @ 900mA max
power output:
15W
input connector:
USB Type-C
USB Type A for 1 Peripheral
output cable length:
215mm
peripheral output:
500mAh
Warranty:
3 year warranty
Weight:
1.7 lb
Additional Information:
This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
