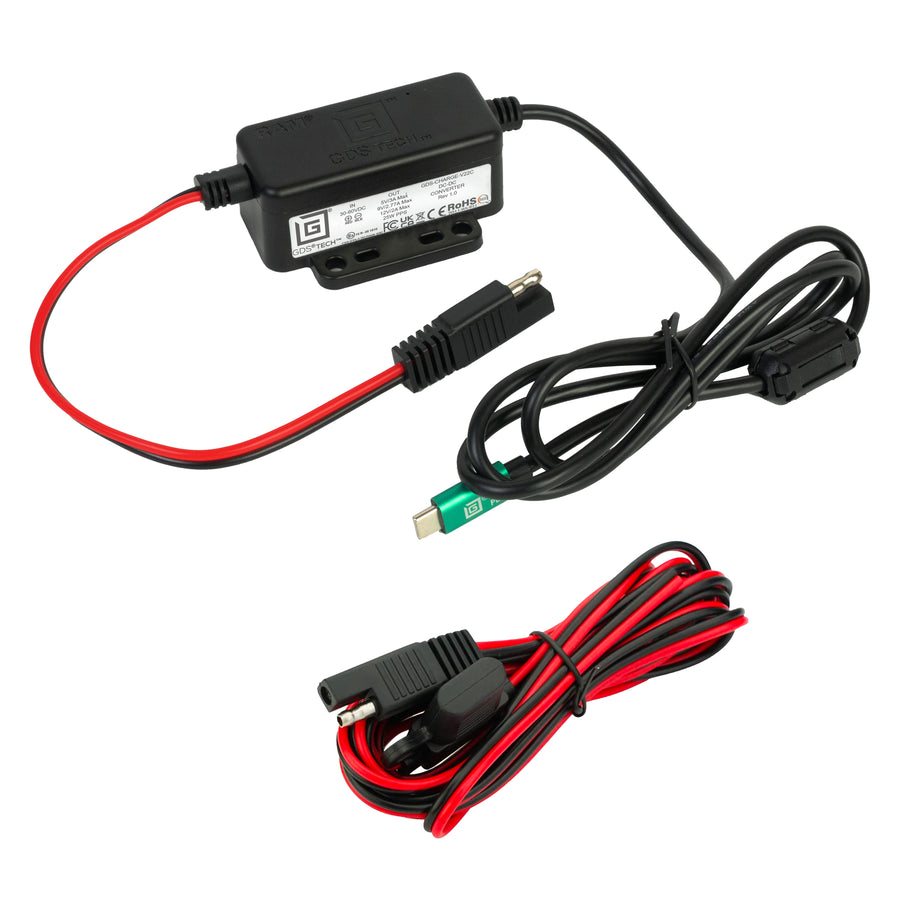

GDS® Modular 30-60V Power Delivery (25W) Male USB-C Hardwire Charger

Always Protected. Always Connected.®
Part#: RAM-GDS-CHARGE-V22CU
UPC: 793442033230
$74.99

Overview

The GDS® Modular 30-60V Power Delivery (25W) Male USB-C Hardwire Charger (RAM-GDS-CHARGE-V22CU) is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 12V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.®

Features

  • Hardwire charger includes USB Type-C male connection with input of 30-60VDC and output of 5-12VDC
  • Supports Power Delivery
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

packaging type:

Poly Bag

input voltage:

30-60VDC

output voltage:

12VDC

power output:

25W

output current:

2.5A max

input connector:

Bare Wire

input cable length:

.2 Meters

output connector:

USB Type-C Male

output cable length:

1 Meter

operating temperature:

-20°C to +70°C

storage temperature:

-40°C to +85°C

regulatory:

Over Voltage Protection
Over Current Protection
Short Circuit Protection
SAE J-1113-5a Load Dump (Transient Voltage)
WEEE Compliance
RoHS Compliance

certifications:

FCC, CSA, CE, UKCA, RCM, e-Mark

Warranty:

3 year warranty

Additional Information:

To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
