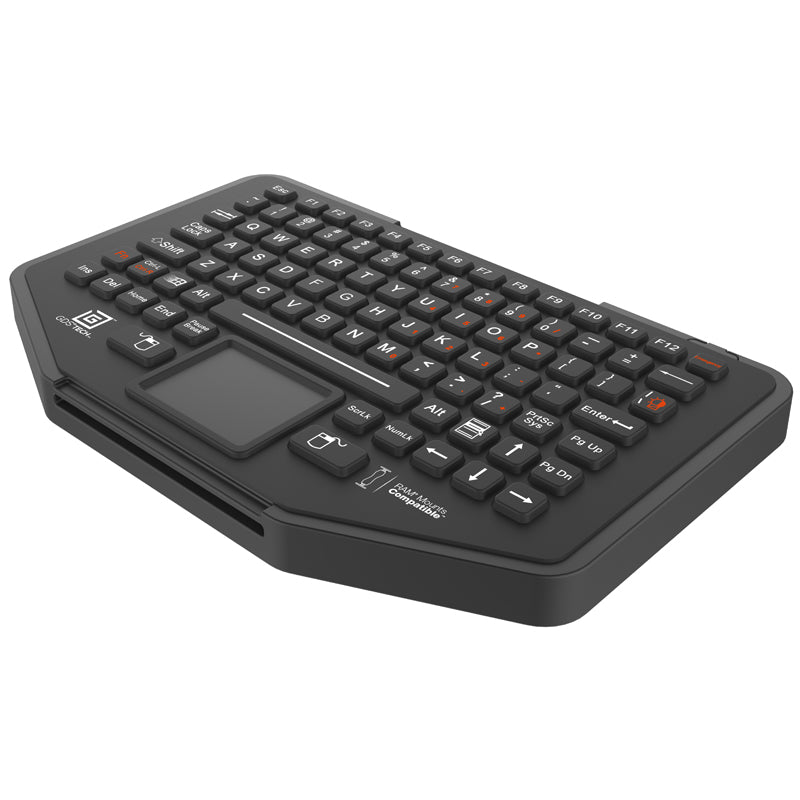

GDS® Keyboard™ with Track Pad
Part #: RAM-KB2-USB UPC: 793442007439 Patented Features 89 keys and 12 function keys Clean key to easily disable keyboard during cleaning Backlight keypad with red illumination to reduce eye strain Multi-touch two finger capable mousepad Communicates via USB 1.1 or 2.0

Product Information

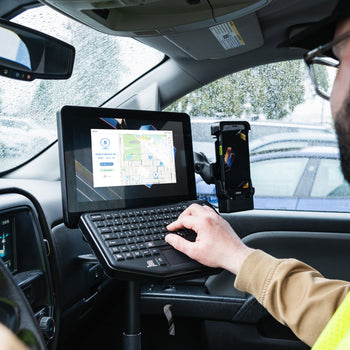

Overview	With the GDS® Tech™ rugged keyboard with USB cable and built-in mouse track pad, complete your in-vehicle mobile office setup. This keyboard features VESA and AMPS hole patterns, making it compatible with a wide variety of RAM® mounting solutions. Easily secure the keyboard with either the RAM® Tab-Tite™ dock or RAM® Tab-Lock™ dock, and then quickly remove the keyboard for use on your lap or center console.

Product Information

Overview

With the GDS® Tech™ rugged keyboard with USB cable and built-in mouse track pad, complete your in-vehicle mobile office setup. This keyboard features VESA and AMPS hole patterns, making it compatible with a wide variety of RAM® mounting solutions. Easily secure the keyboard with either the RAM® Tab-Tite™ dock or RAM® Tab-Lock™ dock, and then quickly remove the keyboard for use on your lap or center console.

Specifications
hardware included	(4) #8-32 x 1/2" Machine Screws
product dimensions	Overall Length: 11.625" Overall Width: 7.5"
hole pattern	75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Box
output cable length	33" Coiled Tension Relief USB Cable
operating temperature	-20°C to +60°C
storage temperature	-40°C to +85°C
certifications	IP65, MIL-810G 514.5, SAE-J1455, FCC, CE, and RoHS Compatible with Mac, Microsoft Windows 7/8/Vista/XP/2000/ME/98
Warranty	1 year warranty
Weight	2.56 lb
