RAM® Locking Drill-Down Dashboard Mount with Backing Plate - C Size Med

Part#: RAM-101L-225B2U
UPC: 793442028786

Kit Components

Previous Slide Next Slide
$80.49

Size Guide

Arm lengths
Short, medium, and long double socket arms compared side by side. This product uses a Medium arm

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length Measurement A Size B Size C Size — this product's ball size D Size E Size
Short Overall Length N/A 2.42" 3.56" 5.69" 5.69"
Socket-to-Socket Length N/A 1.75" 2.5" 4.66" 4.66"
Medium Overall Length 2.42" 3.73" 5.69" — this product 8.44" 12.63"
Socket-to-Socket Length 1.75" 3" 4.66" 6.88" 9.88"
Long Overall Length 3.56" 6" 9.13" 12.98" N/A
Socket-to-Socket Length 3.12" 5.31" 8" 11.41" N/A
GDS® Modular 10-30V Hardwire Charger with Male USB Type-C

GDS® Modular 10-30V Hardwire Charger with Male USB Type-C

$50.49

Overview

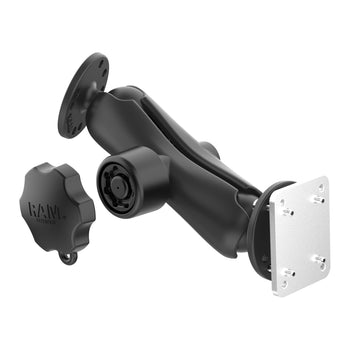

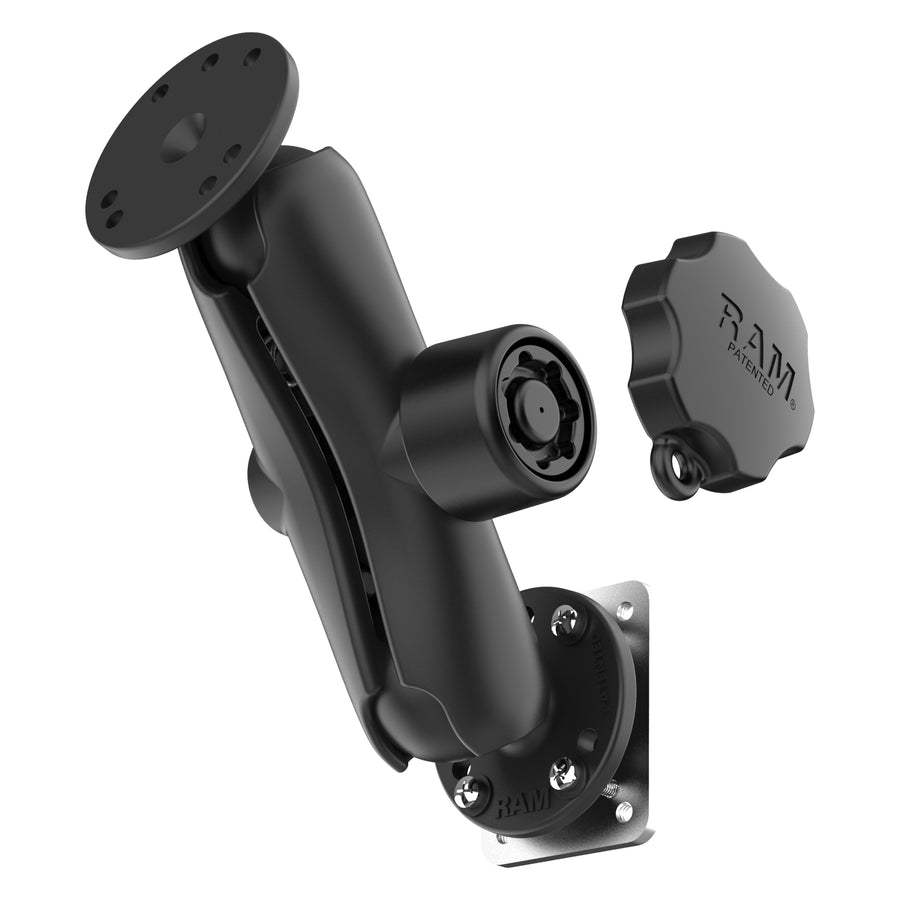

The RAM® Locking Drill-Down Dashboard Mount with Backing Plate - C Size Med (RAM-101L-225B2U) is our go-to mount and component option for securing any holder or dock to a vehicle dashboard. This bundle includes a C size medium length double socket arm with a Pin-Lock™ Security Knob, two round 2.5" diameter round bases with the universal AMPS hole pattern, and one 2.10” x 2.60” steel backing plate (hardware included). RAM®'s patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling perfect viewing and operating angle of your device.

Features

  • Drill-down double ball mount with 2.10" x 2.60" steel backing plate that connects to RAM® components containing the universal AMPS hole pattern
  • Theft deterring, tamper resistant security knob provides peace of mind
  • Includes C size 1.5" RAM® rubber ball and medium length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

hardware included:

(1) Key
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Machine Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

product dimensions:

Overall Height: 7.35"

socket to socket length:

4.66"

hole pattern:

Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum
Steel

packaging type:

Poly Bag

Weight:

1.41 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
