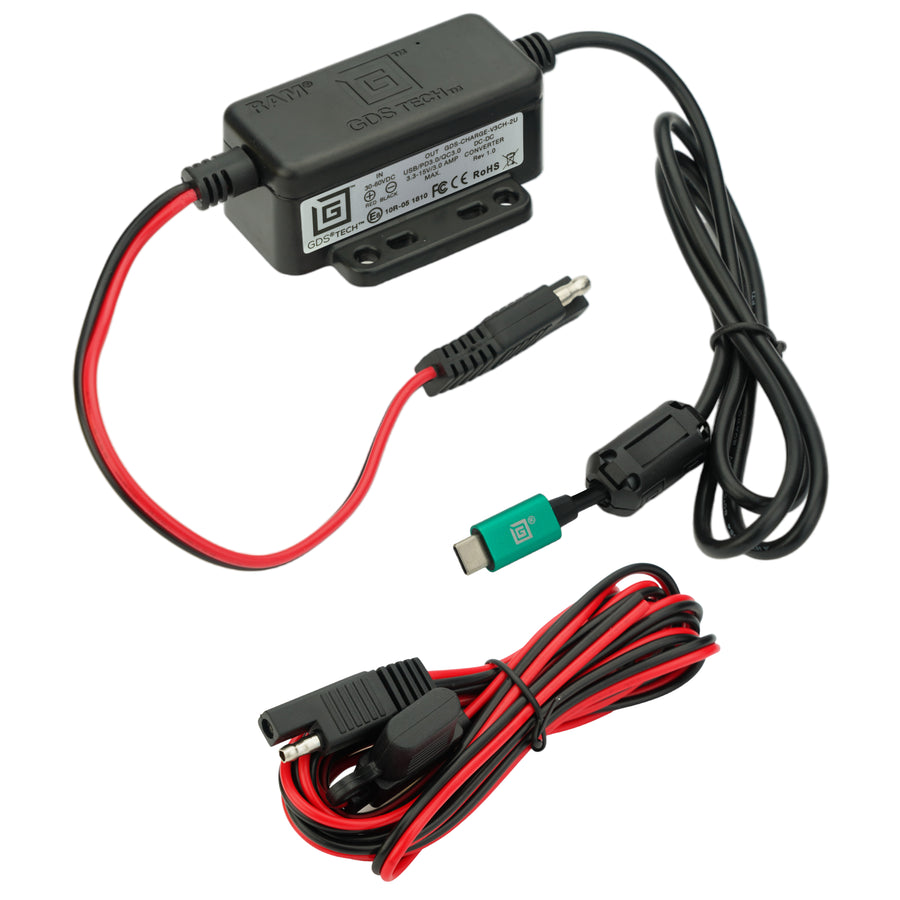

GDS® Modular 30-64V Power Delivery Hardwire Charger with Male USB Type-C
Always Protected. Always Connected.®
Part#: RAM-GDS-CHARGE-V3CH-2U
UPC: 793442015908
$101.99

Overview

The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.®

Features

  • Hardwire charger includes USB Type-C male connection with input of 30-64VDC and output of 5-15VDC
  • Supports Power Delivery
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

packaging type:

Poly Bag

input voltage:

30-64VDC

output voltage:

5-15VDC

output current:

3A max

input connector:

Bare Wire

input cable length:

2.5 Meters

output connector:

USB Type-C Male

output cable length:

1 Meter

operating temperature:

-20°C to +70°C

storage temperature:

-40°C to +85°C

regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

certifications:

CE Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton

Warranty:

3 year warranty

Weight:

0.47 lb

Print

Instructions

Instructions for Modular Hardwire Charger
