RAM® Key-Locking Power + Dual USB Data Dock for Tab Active5 Pro & 4 Pro
$180.99
Overview

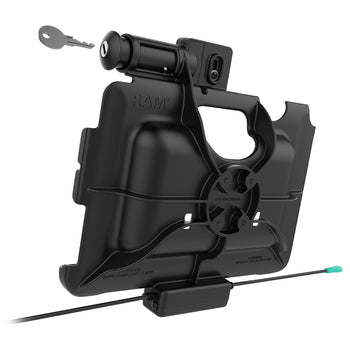

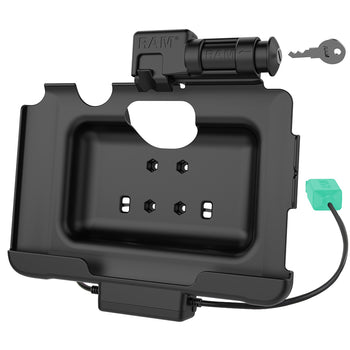

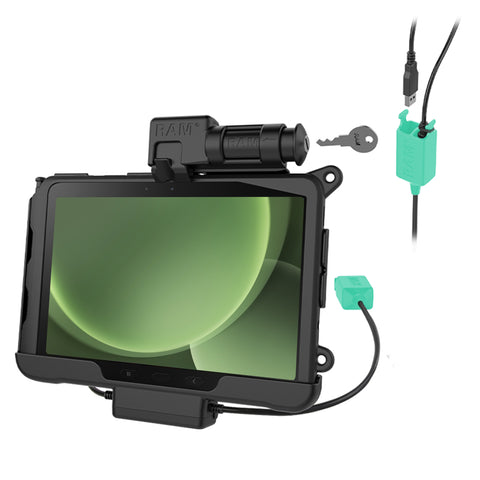

This RAM® EZ-Roll’r™ power cradle for the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. For security and theft deterrence, this powered cradle features a key lock. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Galaxy Tab Active5 Pro, Tab Active4 Pro, or Tab Active Pro from your vehicle, to your person, to your desk with zero hassle.
Features
- Key locking powered dock supports the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector

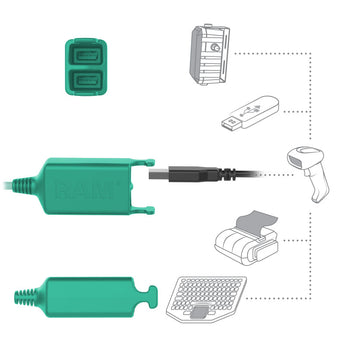

- Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector
- Extra space in the back of the cradle allows for GDS® Hand-Stand™ compatibility; contains 4-hole AMPS hole pattern for RAM® ball components

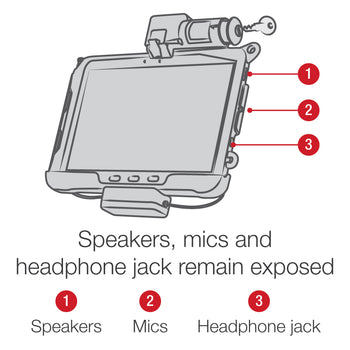

- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty

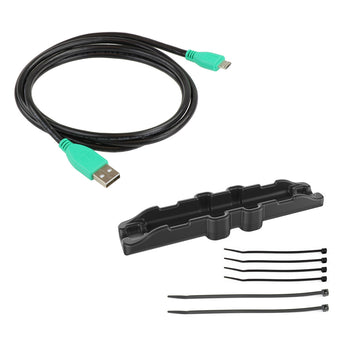

hardware included:
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable

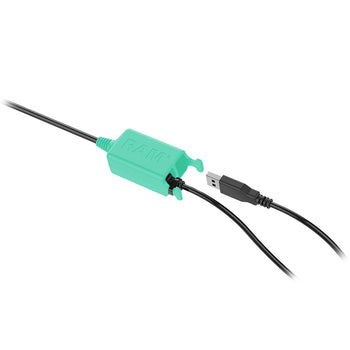

(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output cable length:
.22 Meters
Warranty:
3 year warranty
Weight:
1.41 lb
Additional Information:
This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
