Overview

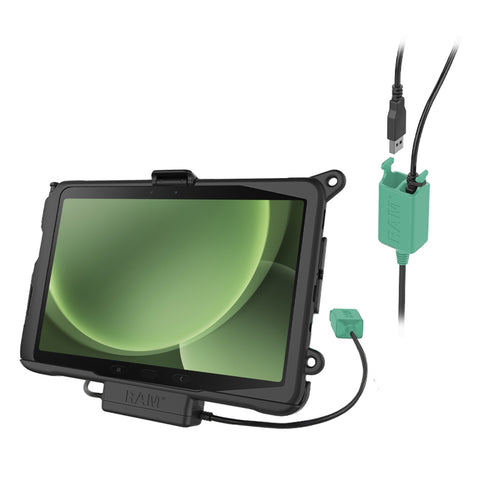

This RAM® EZ-Roll’r™ power cradle for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Galaxy Tab Active4 Pro and Tab Active Pro from your vehicle, to your person, to your desk with zero hassle.
Features
- Powered dock provides charging and data transfer capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only

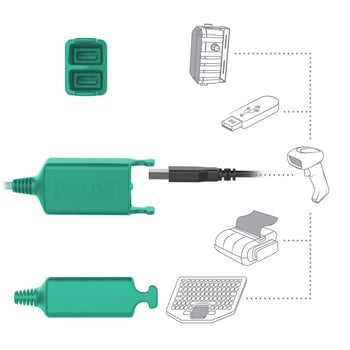

- Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector

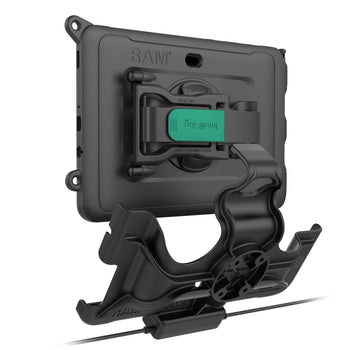

- Extra space in the back of the cradle allows for GDS® Hand-Stand™ compatibility; contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty

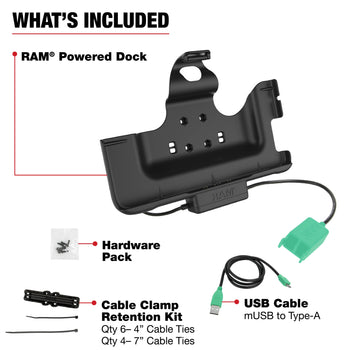

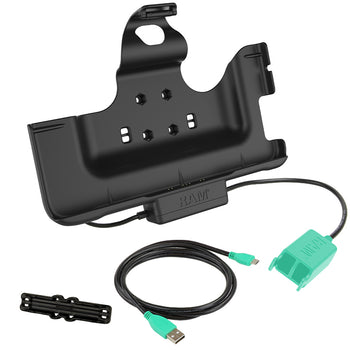

hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output cable length:
.22 Meters
peripheral output:
900mAh (per port)
Warranty:
3 year warranty
Weight:
0.88 lb
Additional Information:
This holder is intended only for light-duty applications in landscape mode. For heavy duty applications and/or operating in portrait mode, see locking options here.
This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
Instructions
Documents
Questions & Answers
Have a Question?
-
How can i connect the power supply, due to the RAM-GDS-CHARGE-7B1U is female USB A, and RAM-HOL-SAM52PD2U is also female USB.
The RAM-HOL-SAM52PD2U Dock for Tab Active4 Pro & Tab Active Pro, has a male USB port for power as stated in the Features and options tab. The RAM-GDS-CHARGE-7B1U Charger will work for this dock.
-
Is the RAM SKIN a required accessory?
No, the RAM Skin (RAM-SKIN-SAM52-1) is not required for use with the RAM-HOL-SAM52PD2U as that powered dock is also compatible with the factory skin from Samsung.
-
Hi, does this dock need to be supplemented with RAM-GDS-CHARGE-V7B1U to work in a forklift?
The hardwire charger would be dependent on the power supply you're using. The RAM-GDS-CHARGE-7B1U is compatible with 10-30V power sources, while the RAM-GDS-CHARGE-V8BU is intended for use with 30-64V power supplies.
