RAM^® Rotating Ball Adapter for Phone and Handheld Holders - B Size

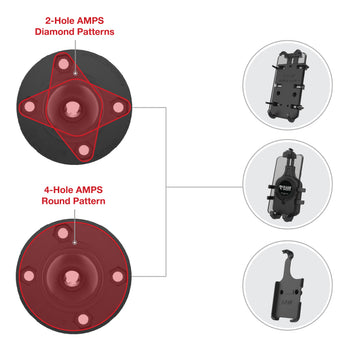

Part #: RAP-B-351-4RU UPC: 793442027178 Features Easily rotate devices without loosening your mounting system Made of high-strength composite for durability and reliability in the most demanding environments RAM^® Compatible^™; one 4-hole AMPS and two 2-hole AMPS patterns Backed by a lifetime warranty

Product Information

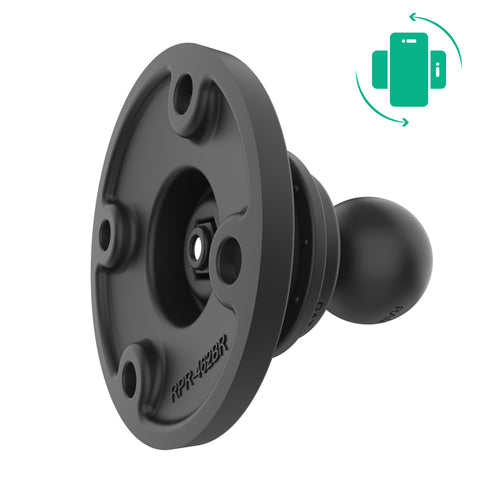

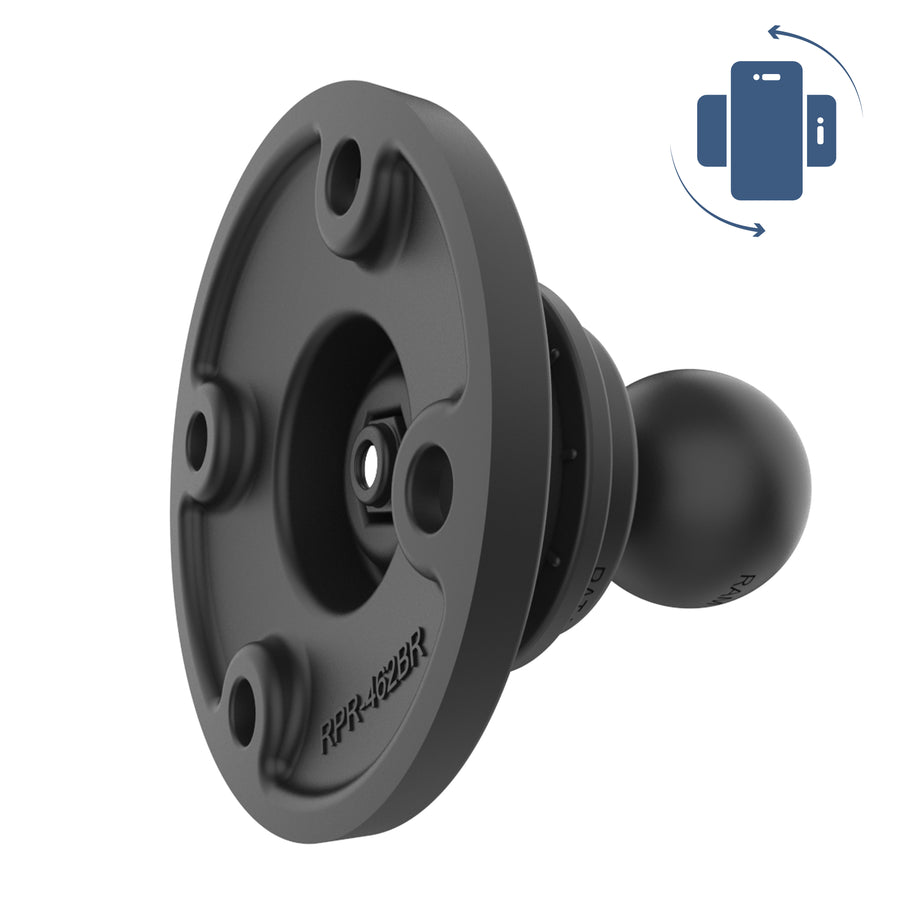

Overview	The RAM^® Rotating Ball Adapter for Phone and Handheld Holders - B Size (RAP-B-351-4RU) allows your device holder to rotate between landscape and vertical orientations. This adapter is RAM^® Compatible^™, featuring one 4-hole AMPS and two 2-hole AMPS patterns found on all RAM^® holders. Using the screw in the center of the ball, you can adjust the tension required to pivot the holder making it a versatile adapter capable of handling the most rugged conditions. Integrate this solution into your existing setup or complete the solution with a B size base, double socket arm, and device holder.

Product Information

Overview

The RAM^® Rotating Ball Adapter for Phone and Handheld Holders - B Size (RAP-B-351-4RU) allows your device holder to rotate between landscape and vertical orientations. This adapter is RAM^® Compatible^™, featuring one 4-hole AMPS and two 2-hole AMPS patterns found on all RAM^® holders. Using the screw in the center of the ball, you can adjust the tension required to pivot the holder making it a versatile adapter capable of handling the most rugged conditions. Integrate this solution into your existing setup or complete the solution with a B size base, double socket arm, and device holder.

Specifications
hole pattern	4-Hole AMPS: 1.181" x 1.496"
plate size	2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.15 lb

RAM<sup>®</sup> Rotating Ball Adapter for Phone and Handheld Holders - B Size

Questions about our products? Email us for support.

RAM^® Rotating Ball Adapter for Phone and Handheld Holders - B Size

Part#: RAP-B-351-4RU

UPC: 793442027178

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$22.49

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Easily rotate devices without loosening your mounting system
Made of high-strength composite for durability and reliability in the most demanding environments
RAM^® Compatible^™; one 4-hole AMPS and two 2-hole AMPS patterns
Backed by a lifetime warranty
