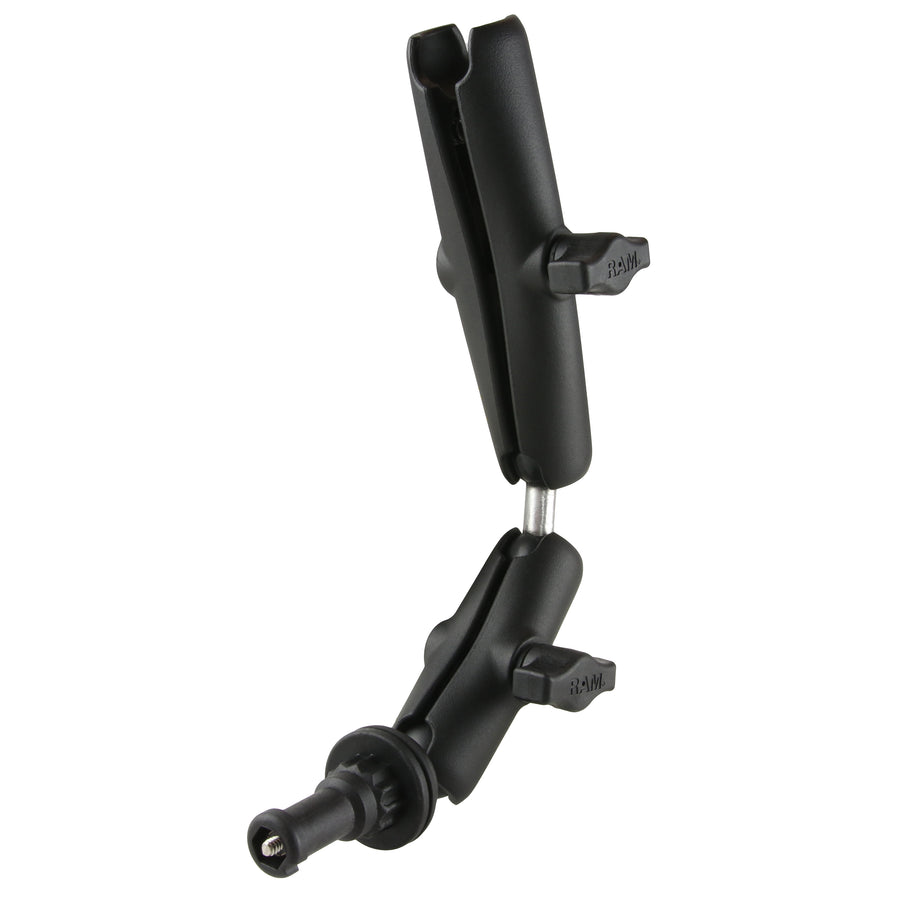

RAM® Quick Release Socket Arm Extension for Wheelchair Armrests | |
---|---|
Part #:
RAP-B-419-201-201U-C
UPC:
793442015144
Features
|
![]() |
Product Information | |
---|---|
Overview | The RAM® Quick Release Socket Arm Extension consists of a 6" long B size socket arm, a 3.73" long B size socket arm, a double ball adapter connecting the two arms together, and a post ball adapter that will connect to the RAM® Universal Wheelchair Base receiver. The quick disconnect feature on the post allows you to quickly insert and remove the mount from the base as needed. These socket arms can adapt to any RAM® holder with ball for supporting your phone, tablet, cup holder, or any other device. To achieve the perfect mounting position of your device you could use only one of the socket arms provided, or connect the two arms together for the extra extension. |
Specifications | |
---|---|
hardware included | Assembly Hardware |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | Marine-grade aluminum High strength composite |
packaging type | Poly Bag |
Weight | 1.02 lb |

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAP-B-419-201-201U-C!
We'll email you once the item is available.
Overview
The RAM® Quick Release Socket Arm Extension consists of a 6" long B size socket arm, a 3.73" long B size socket arm, a double ball adapter connecting the two arms together, and a post ball adapter that will connect to the RAM® Universal Wheelchair Base receiver. The quick disconnect feature on the post allows you to quickly insert and remove the mount from the base as needed. These socket arms can adapt to any RAM® holder with ball for supporting your phone, tablet, cup holder, or any other device. To achieve the perfect mounting position of your device you could use only one of the socket arms provided, or connect the two arms together for the extra extension.
Features
- Connects to RAM® universal quick release wheelchair base with ease
- Ball and socket technology sets your device at the perfect viewing angle with optional ball extension
- Supports any RAM® phone or tablet holder on a wheelchair armrest
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
1.02 lb
