RAM® Tough-Charge™ 15W Waterproof Wireless Charging Holder with Charger

Part #: RAM-HOL-UN12WB-V7M-1 UPC: 793442944956 Patented & Pats. Pend.

Features

Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output
Kit for motorcycles includes wireless cradle, B size diamond ball base, and hardwire charger; attaches to B size double socket arms
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

RAM® Tough-Charge™ 15W Waterproof Wireless Charging Holder with Charger

Product Information

Overview

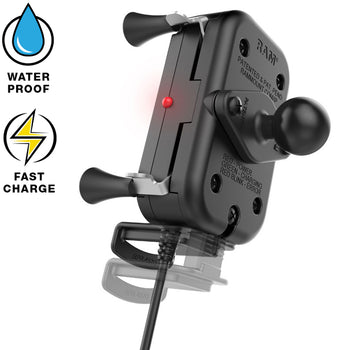

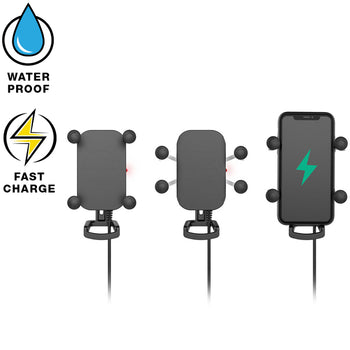

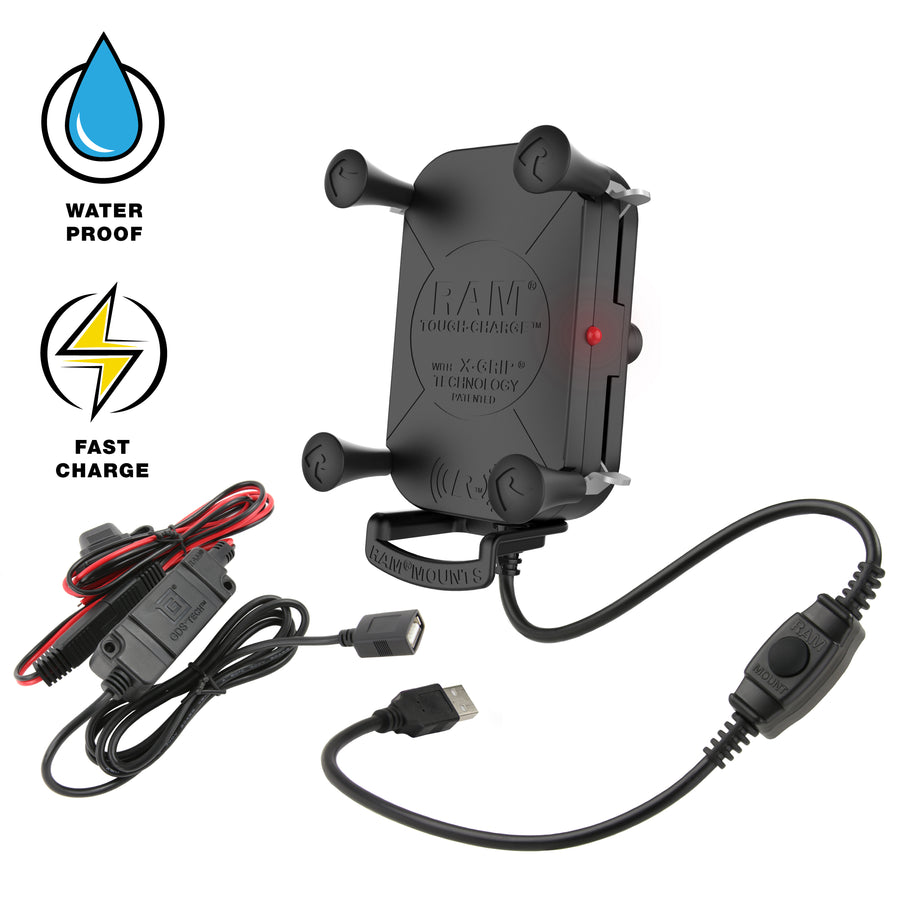

The RAM® Tough-Charge™ 15W Waterproof Wireless Charging Holder with Charger (RAM-HOL-UN12WB-V7M-1) is the world’s first patented, waterproof, universal wireless charging cradle for phones—built to handle rugged environments while keeping your device powered and accessible. Featuring the spring-loaded RAM® X-Grip® design, the cradle’s signature “X” arms expand and contract to securely hold nearly any smartphone while delivering reliable Qi wireless charging. Rubber-coated end caps on all four arms grip your device firmly, and the open-frame design keeps side buttons and ports unobstructed. To insert your phone, simply squeeze one side of the cradle, set your device in place, and release. This waterproof Qi charging cradle delivers consistent charging at virtually any orientation. For added confidence during aggressive riding or outdoor use, a device tether is included. A removable and adjustable support leg provides additional stability. The connected Type-A male pigtail includes an in-line power switch for turning the charging module on or off as needed. For in-vehicle setups, simply connect the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit also includes a hardwire charger for direct power integration. For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty.

Specifications

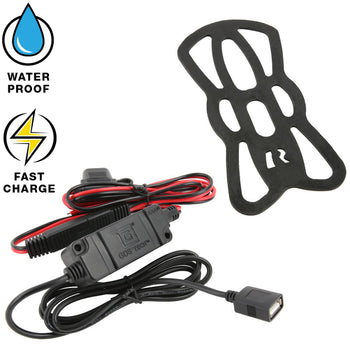

hardware included	(1) Safety Tether (1) Glue Tube for Rubber Caps (1) Cradle Leg (1) Cradle Leg Cover (1) Silicon sleeve for USB waterproof connection (1) Hardwire Charger with Cable (4) Small zip ties (4) Large zip ties
holder dimensions	Width Range: 2.375" - 3.25" Depth Range: .875" max
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite Stainless steel
packaging type	Retail Box
power specifications	Input Power:5V-2A; 9V-1.67A Output: 15W Conversion Efficiency: 85% Max Maximum Case Thickness: 6mm Working Frequency: 110-205KHZ Product Standard: WPC v.1.2.4 Qi Compatible Compatible with QC2.0/QC3.0 power supplies
operating temperature	0°C to +37.7°C
regulatory	Over Voltage Protection Short Circuit Protection Reverse Polarity Protection RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture Resistant
certifications	CE Certification E-Mark Certification RCM Certification FCC Certification
Warranty	1 year warranty
Weight	1.4 lb
Additional Information	This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W. Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more. MagSafe is a registered trademark of Apple, Inc., Cupertino, CA

Patented & Pats. Pend.

RAM® Tough-Charge™ 15W Waterproof Wireless Charging Holder with Charger

Name: RAM® Tough-Charge™ 15W Waterproof Wireless Charging Holder with Charger
Brand: RAM Mounts
SKU: RAM-HOL-UN12WB-V7M-1
Price: 226.99 USD
Availability: InStock

Part#: RAM-HOL-UN12WB-V7M-1

UPC: 793442944956

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$226.99

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output
Kit for motorcycles includes wireless cradle, B size diamond ball base, and hardwire charger; attaches to B size double socket arms
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

hardware included:

(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover

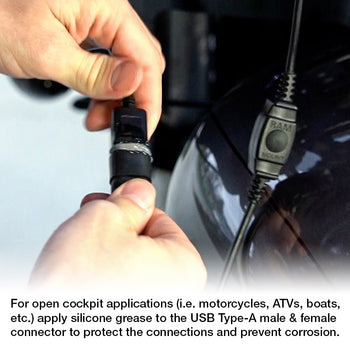

(1) Silicon sleeve for USB waterproof connection

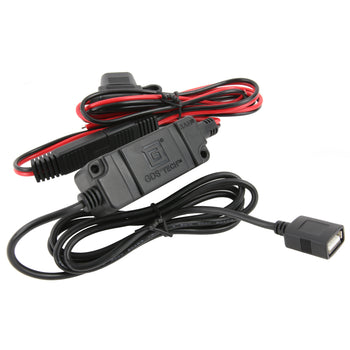

(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties

holder dimensions:

Width Range: 2.375" - 3.25"
Depth Range: .875" max

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite
Stainless steel

packaging type:

Retail Box

power specifications:

Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies

operating temperature:

0°C to +37.7°C

regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

certifications:

CE Certification
E-Mark Certification
RCM Certification
FCC Certification

Warranty:

1 year warranty

Weight:

1.4 lb

Additional Information:

This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

MagSafe is a registered trademark of Apple, Inc., Cupertino, CA
