Patented

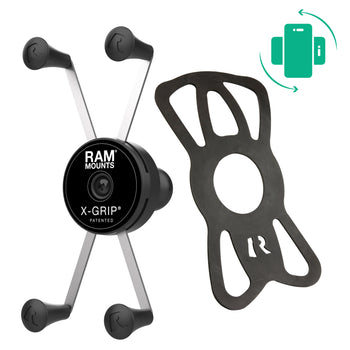

RAM® Rotating X-Grip® Large Phone Holder with Ball - B Size

Part#: RAM-HOL-UN10BRU
UPC: 793442024078

Compatibility

Garmin

Drive 50 Drive 51 LM Drive 52 Drive 61 LM DriveSmart 51 LMT-S DriveSmart 61 LMT-S DriveTrack 71 RV 660LMT RV 770 LMT-S

Magellan

TR5 TR7

Rand McNally

Road Explorer 5 TND 540

Apple

iPhone 11 iPhone 11 Pro iPhone 11 Pro Max iPhone 12 iPhone 12 Pro iPhone 12 Pro Max iPhone 13 iPhone 13 Pro iPhone 13 Pro Max iPhone 14 iPhone 14 Plus iPhone 14 Pro iPhone 14 Pro Max iPhone 15 iPhone 15 Plus iPhone 15 Pro Max iPhone 16 iPhone 16 Plus iPhone 16 Pro iPhone 16 Pro Max iPhone 16e iPhone 17 iPhone 17 Pro iPhone 17 Pro Max iPhone 8 Plus iPhone Air iPhone Xr iPhone Xs Max

Blackberry

Evolve X

Blackview

BV9900 BV9900 Pro

Cat

S42 S62 S62 Pro

Google

Pixel 2 XL Pixel 3 XL Pixel 3a XL Pixel 4 XL Pixel 6 Pixel 6 Pro Pixel 7 Pixel 7 Pro Pixel 8 Pro Pixel 9 Pixel 9 Pro Pixel 9 Pro XL Pixel 9a

HTC

U11

Huawei

Mate 20 Pro Mate 20 X P30 Pro

Kyocera

DuraSport 5G

LG

Aristo 2 Fiesta 2 LTE Fiesta LTE G6 G6 Plus G7 ThinQ G8 ThinQ G8S ThinQ Harmony K20 K20 Plus Stylo 3 Plus Titan Stylo 4 V30 V35 ThinQ V40 ThinQ V50 ThinQ X venture Zone 4

Motorola

moto e4 moto e4 plus moto g5s plus moto g6 moto g7 power moto X4 moto z2 moto z2 play moto z3

Nexa

RHINO C6

Nokia

3 5 8 7 plus 8 Sirocco 9 PureView

OnePlus

7 6T 7 Pro 7T 7T Pro

Panasonic

Eluga X1 Pro

Razer

Phone 2

Samsung

Galaxy A10 Galaxy A10s Galaxy A11 Galaxy A15 Galaxy A20 Galaxy A30 Galaxy A50 Galaxy A50s Galaxy A6 Plus Galaxy A7 Galaxy A70 Galaxy A8 Galaxy A8 Plus Galaxy A80 Galaxy A9 Galaxy A90 5G Galaxy J5 Galaxy J7 (2017) Galaxy J7 (2018) Galaxy J7 Max Galaxy J7 Prime 2 Galaxy Note 10 Galaxy Note 10 Plus Galaxy Note 20 Galaxy Note 20 Ultra Galaxy Note 8 Galaxy Note 9 Galaxy Note Fan Edition Galaxy S10 5G Galaxy S10 Plus Galaxy S20 FE 5G Galaxy S20 Plus 5G Galaxy S20 Ultra 5G Galaxy S21 5G Galaxy S21 Plus 5G Galaxy S21 Ultra 5G Galaxy S22 Plus 5G Galaxy S22 Ultra 5G Galaxy S23 Plus Galaxy S23 Ultra Galaxy S24 Plus Galaxy S24 Ultra Galaxy S25 Plus Galaxy S25 Ultra Galaxy S26 Galaxy S26 Plus Galaxy S26 Ultra Galaxy S8 Active Galaxy S8 Plus Galaxy S9 Plus Galaxy XCover 4 Galaxy XCover 5 Galaxy XCover FieldPro Galaxy XCover Pro Galaxy XCover7

Sony

Xperia L1 Xperia L2 Xperia XZ1 Xperia XZ2 Xperia XZ3

Xiaomi

Mi 9 Mi 9 Explorer Mi Mix 2S Mi Mix 3

ZTE

Axon 10 Pro Axon 9 Pro

Kit Components

Previous Slide Next Slide
$48.99

Overview

The RAM® Rotating X-Grip® Large Phone Holder with Ball - B Size (RAM-HOL-UN10BRU) features the popular spring-loaded 'X' design that expands and contracts to provide a perfect fit for your device and pairs it with rotating hardware, allowing users to pivot their device between landscape and portrait orientations. Historically, to change orientations, users have had to loosen the knob of the double socket arm that secures their holder to the three-part mounting solution—this X-Grip® style gets rid of that hassle! Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite, the RAM® X-Grip® phone holder is compatible with a wide variety of RAM® double socket arms and mounting bases. This large version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. No matter what double socket arm and mounting base you pair the RAM® X-Grip® with, RAM® ball-and-socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications – like being used as a motorcycle phone mount – the RAM® X-Grip® includes a device tether recommended for added security and peace of mind.

Features

  • Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use

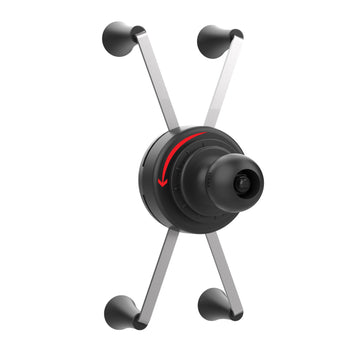

  • Easily rotate device without having to loosen the double socket arm
  • Compatible with any B size RAM® Mounts double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

hardware included:

(1) Optional Tether
(1) Glue Tube for Rubber Caps

holder dimensions:

Width Range: 1.75" - 4.5"
Depth Range: .875" max

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite
Stainless steel

packaging type:

Poly Bag

Weight:

0.29 lb

Additional Information:

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Documents

Q&A
Questions & Answers loading...
RAM® Rotating X-Grip® Large Phone Holder with Ball - B Size
$48.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
