RAM® Quick-Grip™ Pro Phone Holder with Ball & Vibration Damper | |
---|---|
Part #:
RAM-HOL-PD5BVU
UPC:
793442026553
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|

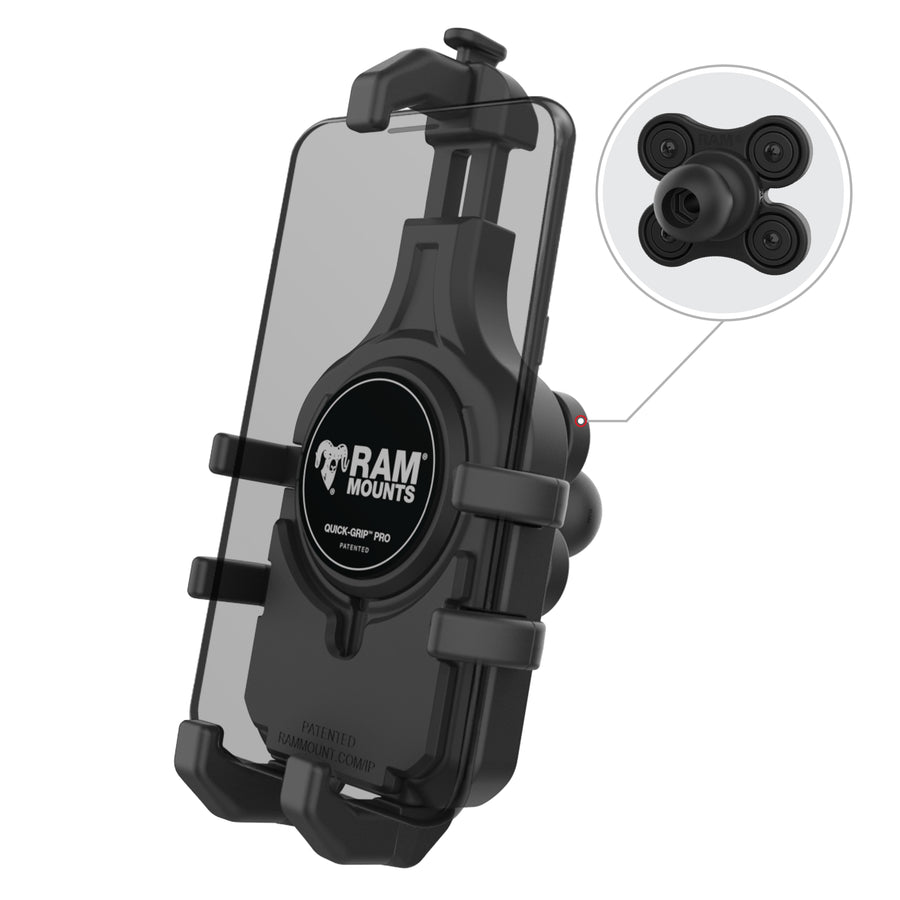

Overview | The RAM® Quick-Grip™ Pro Phone Holder with Ball & Vibration Damper (RAM-HOL-PD5BVU) is the next evolution of the RAM® Quick-Grip™ series with an integrated vibration damper. Re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. This phone holder features an integrated cavity for an Apple Magsafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. Complete the solution by building your mount—this holder is RAM® Compatible™ and includes a B size pin-lock ball. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size. |
Specifications | |
---|---|
hardware included | Assembly Hardware |
holder dimensions | Height Range: 5.5" - 7.75" Width Range: 2.625" - 3.75" Max Depth: .67" |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | High strength composite |
packaging type | Poly Bag |
Additional Information | A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device. |

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Apple
iPhone 6s Plus
iPhone 8 Plus
iPhone X
iPhone Xr
iPhone Xs
iPhone Xs Max
iPhone 11
iPhone 11 Pro
iPhone 11 Pro Max
iPhone 12
iPhone 12 Pro
iPhone 12 Pro Max
iPhone 13
iPhone 13 Pro
iPhone 13 Pro Max
iPhone 14
iPhone 14 Plus
iPhone 14 Pro
iPhone 14 Pro Max
iPhone 15
iPhone 15 Plus
iPhone 15 Pro
iPhone 15 Pro Max
iPhone 16
iPhone 16 Plus
iPhone 16 Pro
iPhone 16 Pro Max
Blackberry
Evolve X
Blackview
BV9900
BV9900 Pro
Pixel 2
Pixel 2 XL
Pixel 3
Pixel 3 XL
Pixel 3a
Pixel 3a XL
Pixel 4
Pixel 4 XL
Pixel 4a
Pixel 5
Pixel 6
Pixel 6 Pro
Pixel 7
Pixel 7 Pro
Pixel 8
Pixel 8 Pro
HTC
U11
Huawei
Mate 20 Pro
Mate 20 X
P30 Pro
LG
Aristo 2
Fiesta 2 LTE
Fiesta LTE
G6
G6+
G7 ThinQ
G8 ThinQ
G8S ThinQ
Harmony
K20
K20 Plus
Q6
Stylo 3 Plus Titan
Stylo 4
V30
V35 ThinQ
V40 ThinQ
V50 ThinQ
X venture
Zone 4
Motorola
moto e4
moto e4 plus
moto g5s plus
moto g6
moto g7 power
moto X4
moto z2
moto z2 play
moto z3
Nokia
2
3
5
8
7 plus
8 Sirocco
9 PureView
OnePlus
7
6T
7 Pro
7T
7T Pro
Panasonic
Eluga X1 Pro
Razer
Phone 2
Samsung
Galaxy A10
Galaxy A10e
Galaxy A10s
Galaxy A11
Galaxy A15
Galaxy A20
Galaxy A20e
Galaxy A30
Galaxy A40
Galaxy A50
Galaxy A50s
Galaxy A6
Galaxy A6+
Galaxy A7
Galaxy A70
Galaxy A8
Galaxy A80
Galaxy A9 (2016)
Galaxy A90 5G
Galaxy J2 (2016)
Galaxy J5
Galaxy J7 (2017)
Galaxy J7 (2018)
Galaxy J7 Prime 2
Galaxy Note 10
Galaxy Note 10 Plus
Galaxy Note 8
Galaxy Note 9
Galaxy Note Fan Edition
Galaxy Note20
Galaxy Note20 Ultra
Galaxy S10
Galaxy S10 5G
Galaxy S10+
Galaxy S10e
Galaxy S20
Galaxy S20 FE 5G
Galaxy S20 Ultra 5G
Galaxy S20+
Galaxy S21 5G
Galaxy S21 Ultra 5G
Galaxy S21+ 5G
Galaxy S22 5G
Galaxy S22 Ultra 5G
Galaxy S22+ 5G
Galaxy S23
Galaxy S23 Ultra
Galaxy S23+
Galaxy S24
Galaxy S24 Ultra
Galaxy S24+
Galaxy S25
Galaxy S25 Ultra
Galaxy S25+
Galaxy S8
Galaxy S8 Active
Galaxy S8+
Galaxy S9
Galaxy S9+
Galaxy XCover 4
Galaxy XCover 5
Galaxy XCover FieldPro
Galaxy XCover Pro
Galaxy XCover6 Pro
Galaxy XCover7
Social
Mobile Rhino C6
Sony
Xperia 1 V
Xperia 10 V
Xperia C4
Xperia L1
Xperia L2
Xperia X
Xperia X Performance
Xperia XA
Xperia XA Ultra
Xperia XA1
Xperia XA1 Plus
Xperia XA1 Ultra
Xperia XA2
Xperia XA2 Ultra
Xperia XZ
Xperia XZ Premium
Xperia XZ1
Xperia XZ2
Xperia XZ3
Xperia XZs
Xperia Z3
Xperia Z3+
Xperia Z5
Xiaomi
Mi 9
Mi 9 Explorer
Mi Mix 2S
Mi Mix 3
Redmi Note 7
ZTE
Axon 10 Pro
Axon 9 Pro

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-HOL-PD5BVU!
We'll email you once the item is available.
Overview
The RAM® Quick-Grip™ Pro Phone Holder with Ball & Vibration Damper (RAM-HOL-PD5BVU) is the next evolution of the RAM® Quick-Grip™ series with an integrated vibration damper. Re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. This phone holder features an integrated cavity for an Apple Magsafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. Complete the solution by building your mount—this holder is RAM® Compatible™ and includes a B size pin-lock ball. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Features

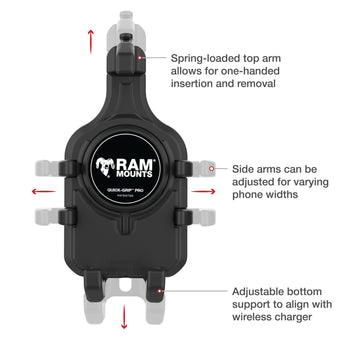

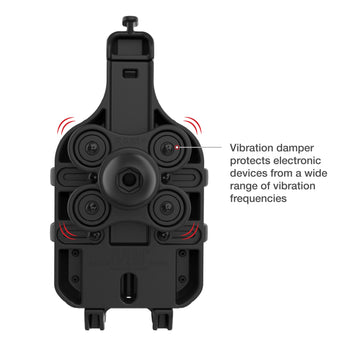

- Spring-loaded holder features adjustable side supports overmolded with a soft rubber and integration vibration damper; easily insert and remove your phone with one hand

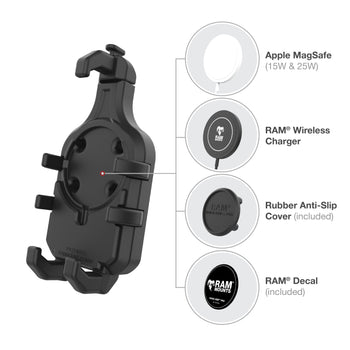

- Center cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included
- Comes with optional device tether for open cockpit environments
- Made of high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
holder dimensions:
Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
packaging type:
Poly Bag
Additional Information:
A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.
Questions & Answers
Have a Question?
-
Will this support an iPhone 16 Pro Max
This will hold the iPhone 16 Pro Max. If you have a case please compare to HOLDER dimencions
holder dimensions:
Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"
