RAM^® Double Socket Arm Adapter with Medium & Long Arms - B Size
Part #: RAM-B-201-201U-C UPC: 793442934131 Features Includes one medium length B size RAM^® double socket arm, one long length B size RAM^® double socket arm, and double ball adapter Attaches to any B size RAM^® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Double Socket Arm Adapter with Medium & Long Arms - B Size

Part #: RAM-B-201-201U-C UPC: 793442934131

Features

Includes one medium length B size RAM^® double socket arm, one long length B size RAM^® double socket arm, and double ball adapter
Attaches to any B size RAM^® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Double Socket Arm Adapter with Medium & Long Arms - B Size

Product Information

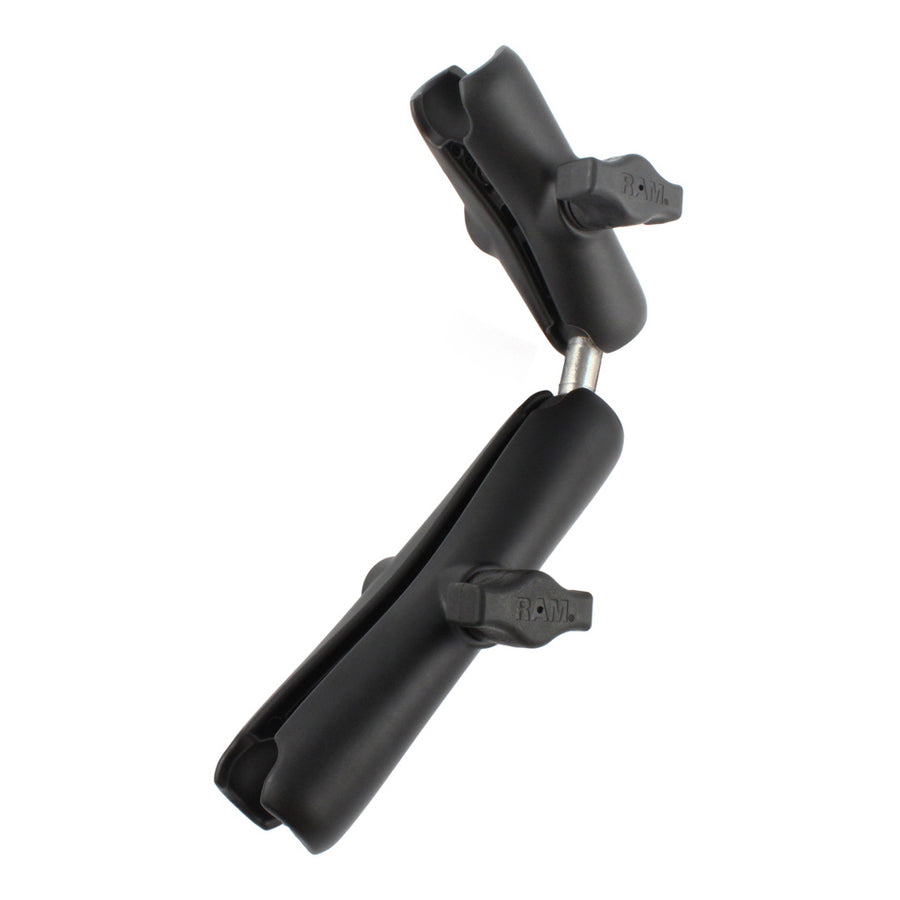

Overview	The RAM-B-201-201U-C consists of a standard-length double socket arm, long-length double socket arm and double ball adapter that joins the two arms together. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

Specifications
product dimensions	Overall Length: 10.65"
socket to socket length	9.92"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.93 lb

Questions about our products? Email us for support.

RAM^® Double Socket Arm Adapter with Medium & Long Arms - B Size

Part#: RAM-B-201-201U-C

UPC: 793442934131

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$63.49

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM-B-201-201U-C consists of a standard-length double socket arm, long-length double socket arm and double ball adapter that joins the two arms together. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

Features

Includes one medium length B size RAM^® double socket arm, one long length B size RAM^® double socket arm, and double ball adapter
Attaches to any B size RAM^® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

product dimensions:

Overall Length: 10.65"

socket to socket length:

9.92"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.93 lb

Print

Documents

Wheelchair Mount Compatibility Guide

Questions & Answers

Have a Question?

Ask a Question

What is the overall length of these arms.

These arms and double ball adapter are 10.65" long when assembled.
what is the length of each individual arm?

The long arm included as part of the RAM-B-201-201U-C is 6" overall and the medium arm is 3.73" long.
