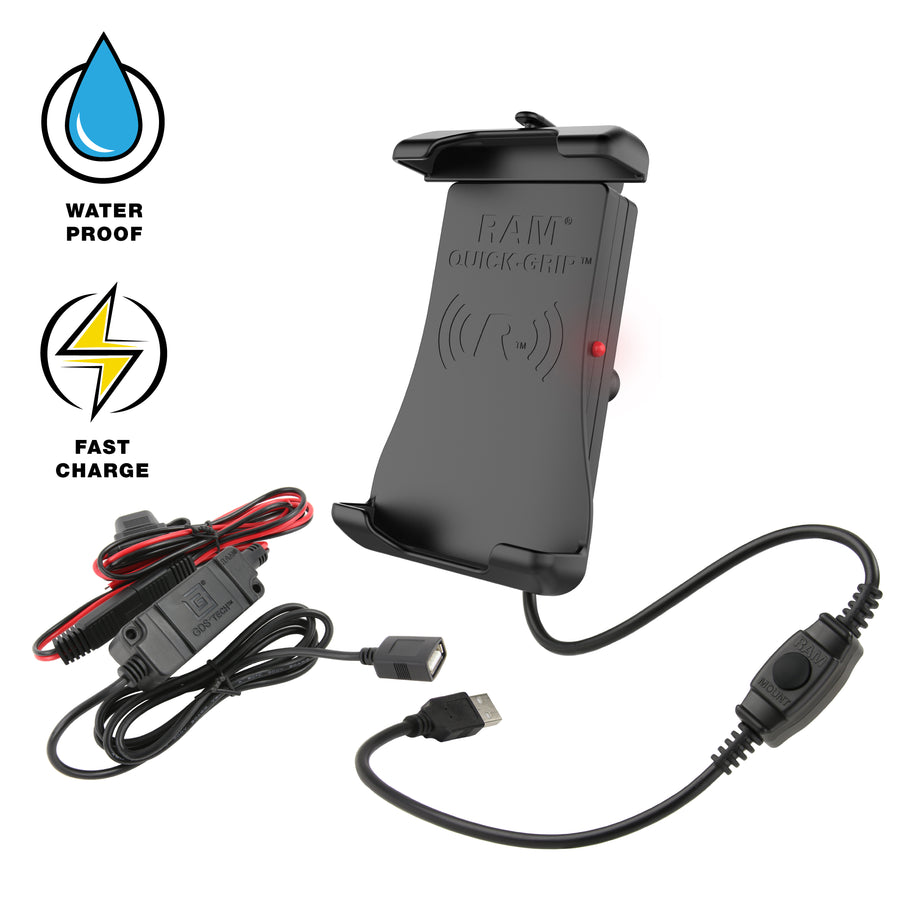

RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder with Charger | |
---|---|
Part #:
RAM-HOL-UN14WB-V7M-1
UPC:
793442920325
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|
Overview | The RAM® Quick-Grip™ Wireless is a patented, universal water resistant wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications.This RAM® Quick-Grip™ Wireless kit for motorcycles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger. |
Specifications | |
---|---|
hardware included | (1) Safety Tether (1) Silicon sleeve for USB waterproof connection (1) Hardwire Charger with Cable (4) Small zip ties (4) Large zip ties |
holder dimensions | Height Range: 5.625" - 6.625" Max Width: 3.125" Max Depth: .7" |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | High strength composite Stainless steel |
packaging type | Retail Box |
power specifications | Input Power:5V-2A; 9V-1.67A Output: 15W Conversion Efficiency: 85% Max Maximum Case Thickness: 6mm Working Frequency: 110-205KHZ Product Standard: WPC v.1.2.4 Qi Compatible Compatible with QC2.0/QC3.0 power supplies |
operating temperature | 0°C to +37.7°C |
regulatory | Over Voltage Protection Short Circuit Protection Reverse Polarity Protection RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture Resistant |
certifications | CE Certification E-Mark Certification RCM Certification FCC Certification |
Warranty | 1 year warranty |
Weight | 1.29 lb |
Additional Information |
This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W. Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more. MagSafe is a registered trademark of Apple, Inc., Cupertino, CA |

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Apple
iPhone 11
iPhone 11 Pro
iPhone 11 Pro Max
iPhone 8
iPhone 8 Plus
iPhone SE
iPhone X
iPhone Xr
iPhone Xs
iPhone Xs Max
Blackberry
Evolve X
Blackview
BV9900
BV9900 Pro
Pixel 3
Pixel 3 XL
Pixel 4
Pixel 4 XL
Pixel 5
Pixel 6
Pixel 6 Pro
Pixel 7
Pixel 7 Pro
Pixel 8
Pixel 8 Pro
Huawei
Mate 20 Pro
P30 Pro
LG
G6
G6+
G7 ThinQ
G8 ThinQ
G8S ThinQ
V30
V35 ThinQ
V40 ThinQ
V50 ThinQ
Nokia
8 Sirocco
9 PureView
Razer
Phone 2
Samsung
Galaxy Note 10
Galaxy Note 10 Plus
Galaxy Note 5
Galaxy Note 8
Galaxy Note 9
Galaxy S10
Galaxy S10 5G
Galaxy S10+
Galaxy S10e
Galaxy S20
Galaxy S20+
Galaxy S20 Ultra 5G
Galaxy S21 5G
Galaxy S21+ 5G
Galaxy S21 Ultra 5G
Galaxy S22 5G
Galaxy S22+ 5G
Galaxy S22 Ultra 5G
Galaxy S23
Galaxy S23+
Galaxy S23 Ultra
Galaxy S24
Galaxy S24+
Galaxy S24 Ultra
Galaxy S25
Galaxy S25+
Galaxy S25 Ultra
Galaxy S6
Galaxy S6 Edge
Galaxy S6 Edge+
Galaxy S7
Galaxy S7 Active
Galaxy S7 Edge
Galaxy S8
Galaxy S8+
Galaxy S8 Active
Galaxy S9
Galaxy S9+
Sony
Xperia XZ2
Xperia XZ2 Compact
Xperia XZ3
Xiaomi
Mi 9
Mi 9 Explorer
Mi Mix 2S
Mi Mix 3
ZTE
Axon 10 Pro
Axon 9 Pro
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
MagSafe is a registered trademark of Apple, Inc., Cupertino, CA
Kit Components

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Apple
iPhone 11
iPhone 11 Pro
iPhone 11 Pro Max
iPhone 8
iPhone 8 Plus
iPhone SE
iPhone X
iPhone Xr
iPhone Xs
iPhone Xs Max
Blackberry
Evolve X
Blackview
BV9900
BV9900 Pro
Pixel 3
Pixel 3 XL
Pixel 4
Pixel 4 XL
Pixel 5
Pixel 6
Pixel 6 Pro
Pixel 7
Pixel 7 Pro
Pixel 8
Pixel 8 Pro
Huawei
Mate 20 Pro
P30 Pro
LG
G6
G6+
G7 ThinQ
G8 ThinQ
G8S ThinQ
V30
V35 ThinQ
V40 ThinQ
V50 ThinQ
Nokia
8 Sirocco
9 PureView
Razer
Phone 2
Samsung
Galaxy Note 10
Galaxy Note 10 Plus
Galaxy Note 5
Galaxy Note 8
Galaxy Note 9
Galaxy S10
Galaxy S10 5G
Galaxy S10+
Galaxy S10e
Galaxy S20
Galaxy S20+
Galaxy S20 Ultra 5G
Galaxy S21 5G
Galaxy S21+ 5G
Galaxy S21 Ultra 5G
Galaxy S22 5G
Galaxy S22+ 5G
Galaxy S22 Ultra 5G
Galaxy S23
Galaxy S23+
Galaxy S23 Ultra
Galaxy S24
Galaxy S24+
Galaxy S24 Ultra
Galaxy S25
Galaxy S25+
Galaxy S25 Ultra
Galaxy S6
Galaxy S6 Edge
Galaxy S6 Edge+
Galaxy S7
Galaxy S7 Active
Galaxy S7 Edge
Galaxy S8
Galaxy S8+
Galaxy S8 Active
Galaxy S9
Galaxy S9+
Sony
Xperia XZ2
Xperia XZ2 Compact
Xperia XZ3
Xiaomi
Mi 9
Mi 9 Explorer
Mi Mix 2S
Mi Mix 3
ZTE
Axon 10 Pro
Axon 9 Pro
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
MagSafe is a registered trademark of Apple, Inc., Cupertino, CA
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-HOL-UN14WB-V7M-1!
We'll email you once the item is available.
Overview
The RAM® Quick-Grip™ Wireless is a patented, universal water resistant wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications.This RAM® Quick-Grip™ Wireless kit for motorcycles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.
Features
- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output
- Kit includes wireless charging cradle, B size diamond ball base, and hardwire charger; attaches to B size double socket arms
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
hardware included:
(1) Safety Tether
(1) Silicon sleeve for USB waterproof connection
(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties
holder dimensions:
Height Range: 5.625" - 6.625"
Max Width: 3.125"
Max Depth: .7"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
Stainless steel
packaging type:
Retail Box
power specifications:
Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
operating temperature:
0°C to +37.7°C
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications:
CE Certification
E-Mark Certification
RCM Certification
FCC Certification
Warranty:
1 year warranty
Weight:
1.29 lb
Additional Information:
This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
MagSafe is a registered trademark of Apple, Inc., Cupertino, CA
Questions & Answers
Have a Question?
-
Does this not work with the iPhone 15 Pro?I don't see it on the list,
This will NOT be compatible with the iPhone 15 Pro. Its ONLY compatible with the models listed under each make.
-
Will this work with an otterbox case or will it need to be removed?
This charger will work with a maximum case thickness of 6mm, if it is thicker than this you may need to take off the case.
-
Will this fit an iPhone 14 pro max.
No, RAM does not currently offer a wireless charging cradle that will accommodate any of the iPhone 13 or 14 models.
