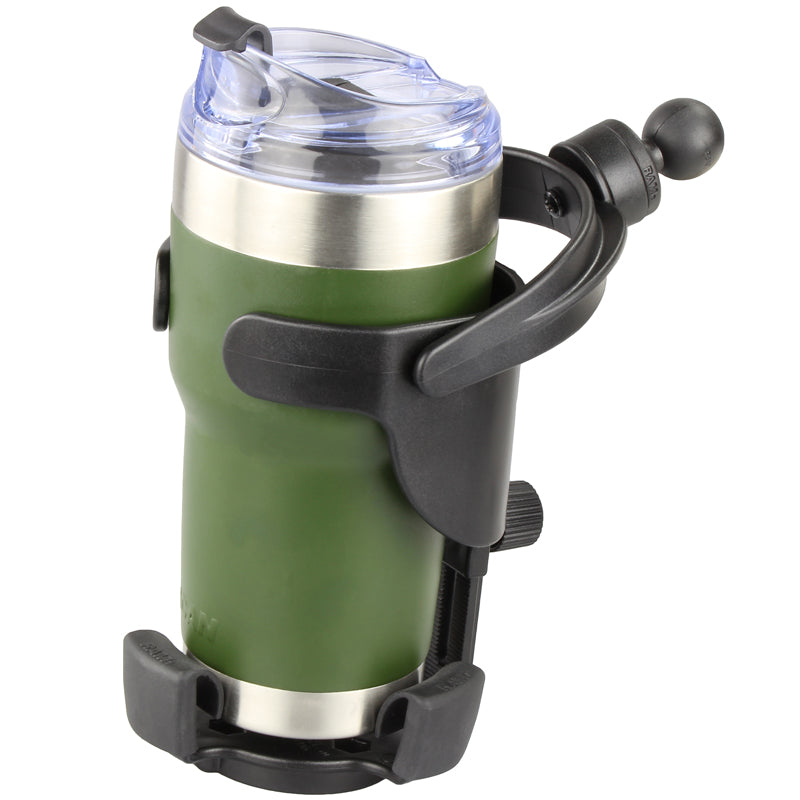

RAM^® Level Cup^™ XL 32oz Drink Holder with Ball
Part #: RAP-B-417BU UPC: 793442953064 Patented Features Self-leveling holder keeps your drink upright regardless of the conditions, including 12oz cans, water bottles, insulated cups, and 32oz containers; includes drink koozie Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Level Cup^™ XL 32oz Drink Holder with Ball

Part #: RAP-B-417BU UPC: 793442953064 Patented

Features

Self-leveling holder keeps your drink upright regardless of the conditions, including 12oz cans, water bottles, insulated cups, and 32oz containers; includes drink koozie
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Level Cup<sup>™</sup> XL 32oz Drink Holder with Ball

Product Information
Overview	Designed for bigger insulated cups, plastic water bottles or even your reliable steel coffee cup, the Level Cup^™ XL keeps your drink upright, regardless of the conditions. This kit includes the RAM^® Level Cup^™ XL with a 1" B size rubber ball directly attached. The oversized opening cradles the biggest of gulps and the adjustable bottom piece moves up and down to accommodate taller cups. In addition, the rubber feet flex to fit various size cups as well. Drink koozie included.

Product Information

Overview

Designed for bigger insulated cups, plastic water bottles or even your reliable steel coffee cup, the Level Cup^™ XL keeps your drink upright, regardless of the conditions. This kit includes the RAM^® Level Cup^™ XL with a 1" B size rubber ball directly attached. The oversized opening cradles the biggest of gulps and the adjustable bottom piece moves up and down to accommodate taller cups. In addition, the rubber feet flex to fit various size cups as well. Drink koozie included.

Specifications
hardware included	(3) Rubber Support Fins (1) Glue Tube for Rubber Fins
drink size	12-32 oz
hole pattern	4-Hole AMPS: 1.181" x 1.496"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.62 lb

Video Thumbnail — YouTube video thumbnail for iTTT2XXyRws

Questions about our products? Email us for support.

Patented

RAM^® Level Cup^™ XL 32oz Drink Holder with Ball

Part#: RAP-B-417BU

UPC: 793442953064

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$44.99

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Self-leveling holder keeps your drink upright regardless of the conditions, including 12oz cans, water bottles, insulated cups, and 32oz containers; includes drink koozie
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

(3) Rubber Support Fins
(1) Glue Tube for Rubber Fins

drink size:

12-32 oz

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.62 lb

Print

Instructions

Level Cup XL Instruction Guide

Documents

Wheelchair Mount Compatibility Guide

On Water Catalog

Questions & Answers

Have a Question?

Ask a Question

What is the measurement of the base area?

From outer fin to outer fin on the base of that xl cupholder is four inches.
Ram level cup XL 32oz drink holder uses a 'B' size ball rated for 1 or 2 lbs. Many 32oz insulated cups full of liquid weight 4 lbs. ( I weighed one) Maybe this should be offered with "C" size ball?

That is a very good point. We do offer a C size version of this holder, RAP-417B, which would accomodate that heavier weight. The weights will vary depending on each application but both options are available.
