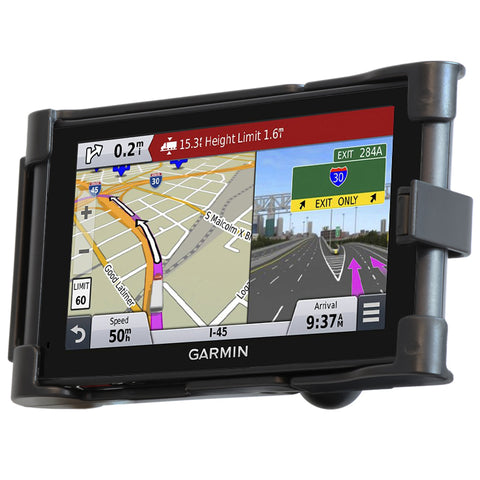

RAM^® EZ-Roll'r^™ Locking Cradle with Ball for Garmin nuviCam and dezlCam
Part #: RAM-B-HOL-GA68LU UPC: 793442950261 Patented & Pats. Pend.

Product Information

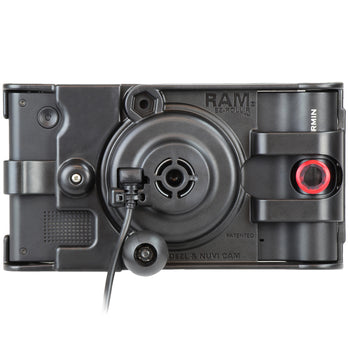

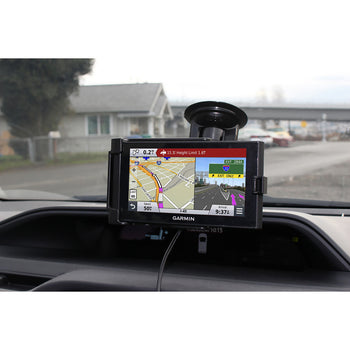

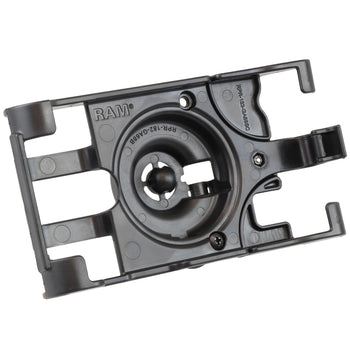

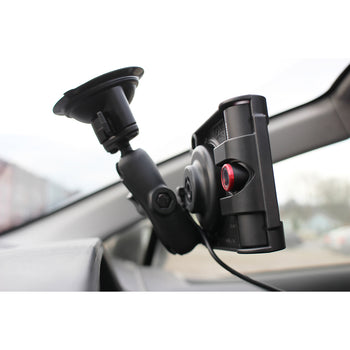

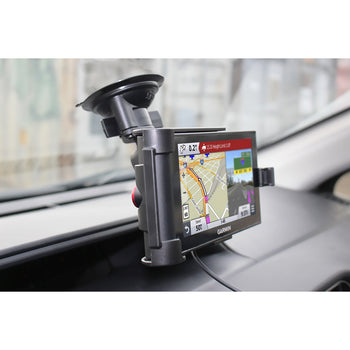

Overview	The Garmin nüviCam^™ and dēzlCam^™ keeps an extra eye on the road. And RAM Mounts custom cradle for these innovative devices keeps traffic information in your line of sight and keeps the device secure in your vehicle. The cradle allows for full range of motion of the device camera and integrates the factory Garmin magnetic dock for access to charging. The high-strength composite mount integrates a cable retention system to prevent accidental unplugging. The custom-fit cradle also has a locking option that is installed using press-fit nuts to enhance security. The cradle has two location options to attach the RAM ball (comes with 1" B-Size ball). Compatible with the Garmin nüviCam^™ LMTHD and the Garmin dēzlCam^™ LMTHD.

Product Information

Overview

The Garmin nüviCam^™ and dēzlCam^™ keeps an extra eye on the road. And RAM Mounts custom cradle for these innovative devices keeps traffic information in your line of sight and keeps the device secure in your vehicle. The cradle allows for full range of motion of the device camera and integrates the factory Garmin magnetic dock for access to charging. The high-strength composite mount integrates a cable retention system to prevent accidental unplugging. The custom-fit cradle also has a locking option that is installed using press-fit nuts to enhance security. The cradle has two location options to attach the RAM ball (comes with 1" B-Size ball). Compatible with the Garmin nüviCam^™ LMTHD and the Garmin dēzlCam^™ LMTHD.

Specifications
hardware included	Assembly Hardware
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.3 lb

RAM<sup>®</sup> EZ-Roll'r<sup>™</sup> Locking Cradle with Ball for Garmin nuviCam and dezlCam

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM^® EZ-Roll'r^™ Locking Cradle with Ball for Garmin nuviCam and dezlCam

Part#: RAM-B-HOL-GA68LU

UPC: 793442950261

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$25.49

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

hardware included:

Assembly Hardware

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.3 lb

Print

Instructions

RAM Locking Cradle for Garmin dezlCam Instructions

Questions & Answers

Have a Question?

Ask a Question

Hi, how does this product work with Garmin Portable Friction Mount ? I think the center hole size has to be 11mm.

This come with a 1" ball to go on the back of the cradle. You would add a double socket arm. Then the base of your choice with a 1" ball. We do not have an 11mm ball.
