RAM® Tough-Charge™ with X-Grip® 10W Waterproof Wireless Charging Holder
Overview

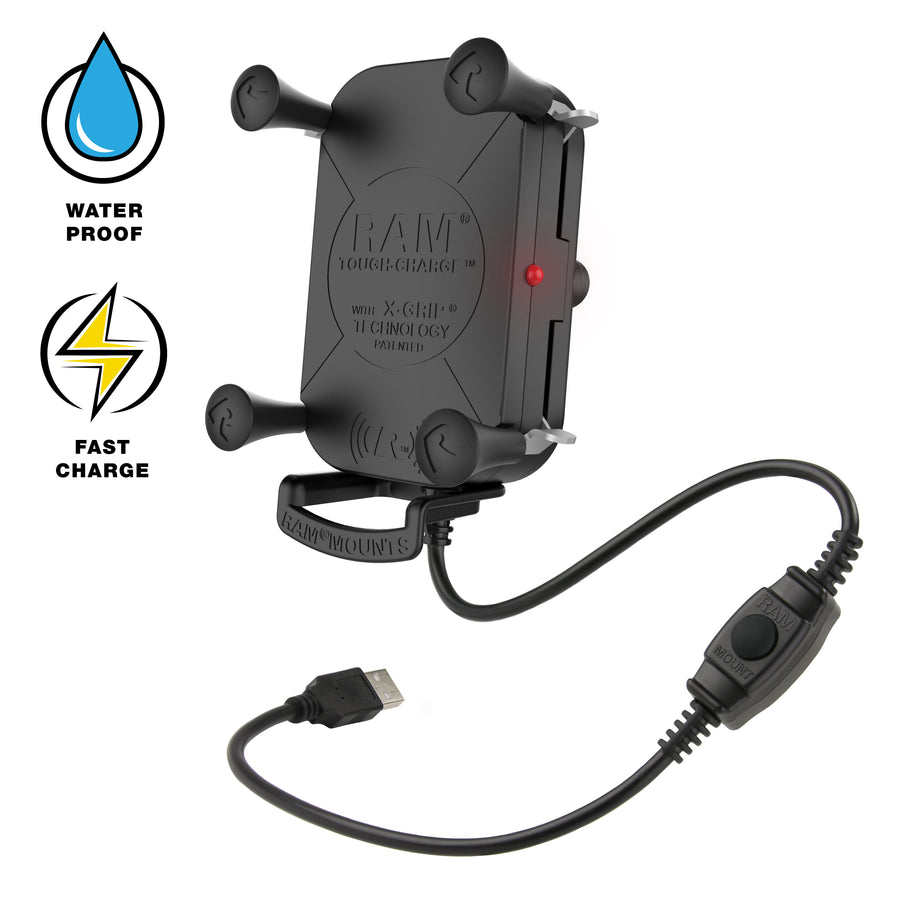

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi compatible wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit for vehicles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.
Features
- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 10W maximum output
- RAM® Mounts Compatible™ with B size double socket arms and ball bases for mounting in your preferred location
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
hardware included:
(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) 1.2 Meter USB Extension Cable
(4) Small zip ties
(2) Large zip ties
holder dimensions:
Width Range: 2.375" - 3.25"
Depth Range: .875" max
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
Stainless steel
packaging type:
Retail Box
power specifications:
Input Power:5V-2A; 9V-1.67A
Output: 5W / 7.5W / 10W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
operating temperature:
0°C to +37.7°C
certifications:
FCC, IC, KC, CE, E-Mark, WEEE, RCM, and RoHS Compliant
Warranty:
1 year warranty
Weight:
1.2 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
I don't see my phone listed in the compatibility section for this cradle. How can I make sure my tablet is compatible before placing an order?
You can find a list of compatible dimensions for this holder in the product information section. If you want to make sure your tablet will fit in this holder you can measure your tablet to make sure it falls within the compatible dimensions.
-
Why is the power indicator flashing red?
FLASHING RED indicates an Error. This means it's not working, and you should turn it off; unplug it from the charger; re-plug it in and turn it back on. Also, there is a Compatibility list to make sure you are using the correct devise in this mount.
-
will the new sonim xp10 fit in this with keeping the bottom support in place?
Yes, you can use the foot support supplied with the RAM-HOL-UN12WB to ensure the spring loaded arms don't interfere with the buttons on your Sonim XP10.
-
Is this compatible with the iPhone 13 ProMax for fit and charging? Is there enough allowance that it will work with an OtterBox case or other case on it?
This holder will not support the iPhone 13 Pro Max. As long as this is not being mounted in any open cockpit environments, what we would recommend for this is our ball adapter for the MagSafe: RAP-B-202-AP-MAGU. We'd also recommend to ensuring there's no more than 8 mm of seperation between the device and the MagSafe on your OtterBox case.
-
How would I connect this to RAM® 12" Long 1/4" NPSM Male Threaded Flexible Pipe RAM-PF-585-12
The RAM-B-200-1U would be the component to achieve this. The threads will engage with the 1/4" NPSM pipe and this socket will accommodate the B Size ball on the holder.
