$99.99
mUSB Power, 2 USB-A Peripherals

Features

  • RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects two additional USB peripherals through an integrated pogo pin connector
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
  • Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector
  • Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Backed by a 3-year warranty

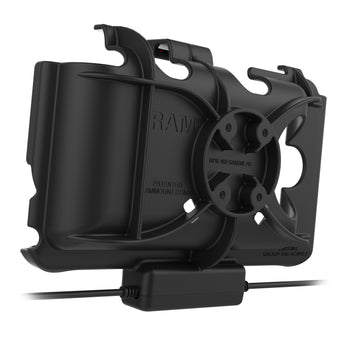

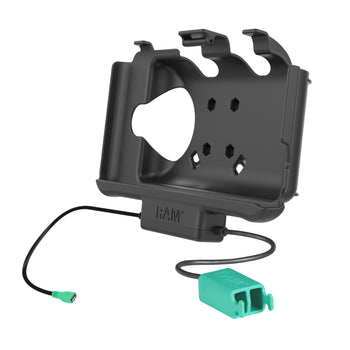

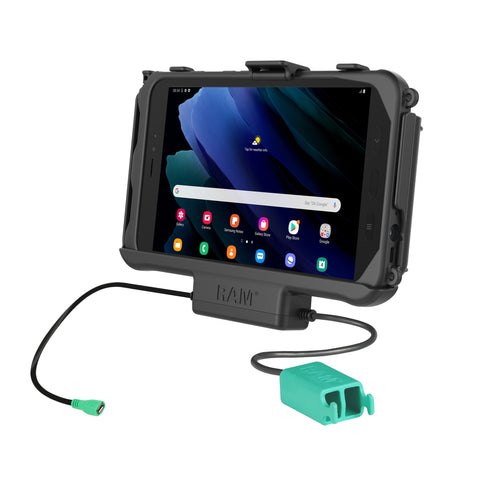

RAM® EZ Roll'r™ Dual USB Dock for Samsung Tab Active5 & 3
Part#:RAM-HOL-SAM60PD2U UPC:793442011207 Patented & Pats. Pend.
Overview
This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 and 2 from your vehicle, to your person, to your desk with zero hassle.

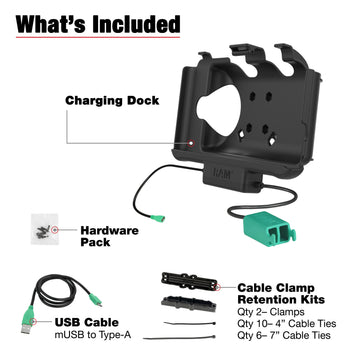

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties

product dimensions

Width: 9.24"
Height: 6.34"
Depth: 2.57"

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

input voltage

4.4-5.4VDC (USB power source dependent)

output voltage

4.4VDC-5.4VDC (USB power source dependent)

power output

500mA per USB port

input connector

mUSB 2.0 Female

input cable length

214mm

output connector

(2) USB 1.1 Type A

output cable length

217mm

peripheral output

900mAh (per port)

transfer speed

12Mbps

Warranty

3 year warranty

Weight

0.84 lb

Additional Information

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
