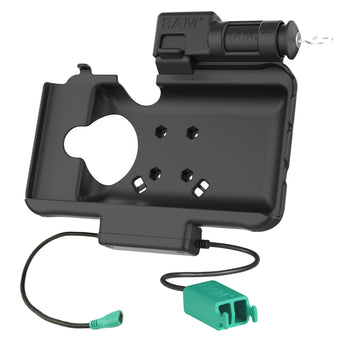

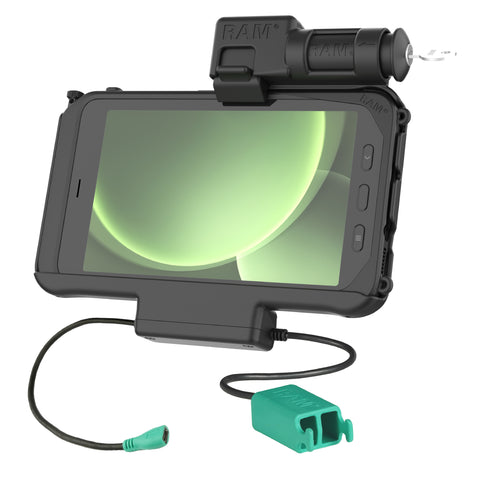

RAM® Key Locking Power + Dual USB Dock for Samsung Tab Active5 & 3
$181.49
Key Lock, Power + Dual USB-A Peripheral
Features
- Key locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector

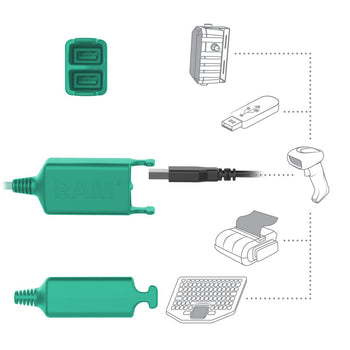

- Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector
- Contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. For security and theft deterrence, this powered cradle features a key lock. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.
RAM® Key Locking Power + Dual USB Dock for Samsung Tab Active5 & 3
Overview
This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. For security and theft deterrence, this powered cradle features a key lock. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.
hardware included
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties
product dimensions
Width: 9.25"
Height: 7.75"
Depth: 3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
4.4-5.4VDC (USB power source dependent)
output voltage
4.4VDC-5.4VDC (USB power source dependent)
power output
500mA per USB port
input connector
mUSB 2.0 Female
input cable length
214mm
output connector
(2) USB 1.1 Type A
output cable length
217mm
peripheral output
900mAh (per port)
transfer speed
12Mbps
Warranty
3 year warranty
Weight
1.26 lb
Additional Information
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
