Overview

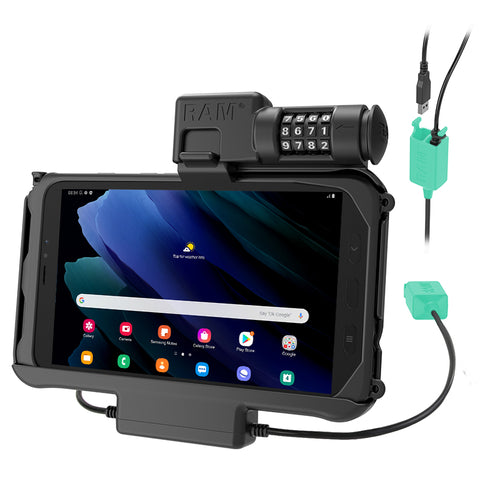

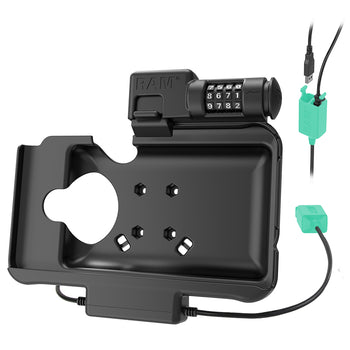

This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB-A port supporting up to two peripherals making this the ideal, compact mounting solution for your mobile workstation. For security and theft deterrence, this powered cradle features a combination lock. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern.
Features
- Combination locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector

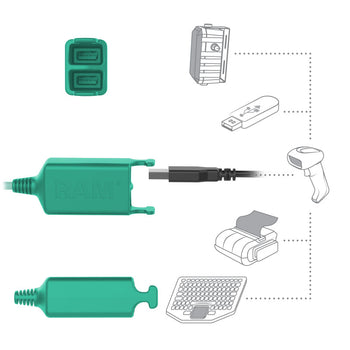

- Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector
- Contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty

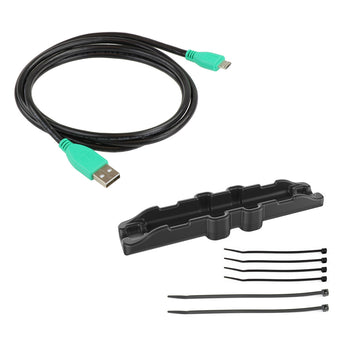

hardware included:
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties
product dimensions:
Width: 9.25"
Height: 7.75"
Depth: 3"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
4.4-5.4VDC (USB power source dependent)
output voltage:
4.4VDC-5.4VDC (USB power source dependent)
power output:
500mA per USB port
input connector:
mUSB 2.0 Female
input cable length:
214mm
output connector:
(2) USB 1.1 Type A
output cable length:
217mm
peripheral output:
900mAh (per port)
transfer speed:
12Mbps
Warranty:
3 year warranty
Weight:
1.18 lb
Additional Information:
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
