Patented & Pats. Pend.

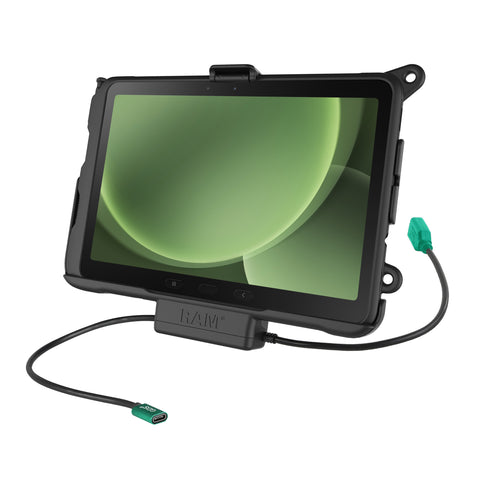

RAM® EZ-Roll'r™ Power & Data Dock for Tab Active5 Pro & 4 Pro

Part#: RAM-HOL-SAM52CP-1AU
UPC: 793442022142
$109.49

Overview

The RAM® EZ-Roll’r™ powered/data cradle for the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a Type-A female pigtail connector for data or to connect a USB peripheral such as a scanner.

Features

  • Powered dock provides charging and data transfer capabilities for Samsung GalaxyTab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
  • Powered via USB-C connector (Non-Power Delivery charger required); connect a single input device via USB-A connector
  • Easily insert and remove the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, or Tab Active Pro with one hand
  • Compatible with factory skin and RAM® Skin™
  • Backed by a 3-year warranty

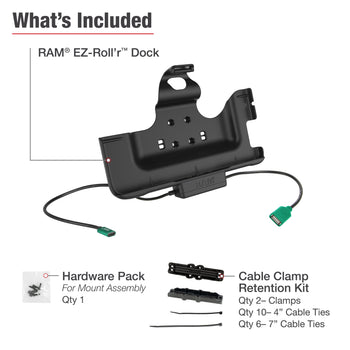

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties

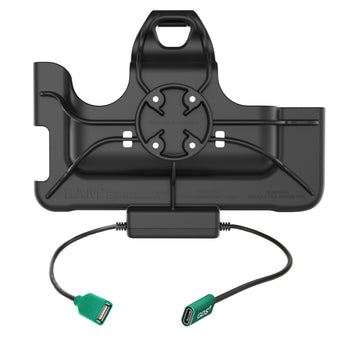

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

input voltage:

5.3-5.4VDC

output voltage:

5VDC

power output:

500mA

input connector:

USB Type-C Female

input cable length:

250mm

output connector:

USB 1.1 Type A

output cable length:

250mm

peripheral output:

500mA

transfer speed:

12Mbps

Warranty:

3 year warranty

Weight:

0.74 lb

Additional Information:

Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This holder is intended only for light-duty applications in landscape mode. For heavy duty applications and/or operating in portrait mode, see locking options here.

This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
