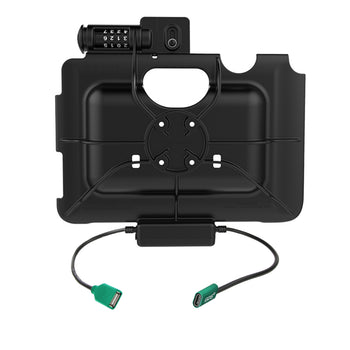

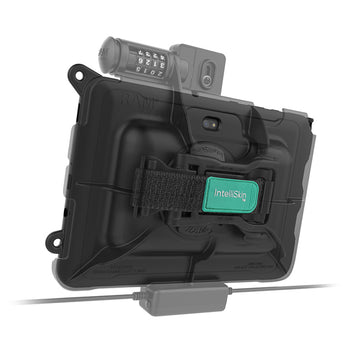

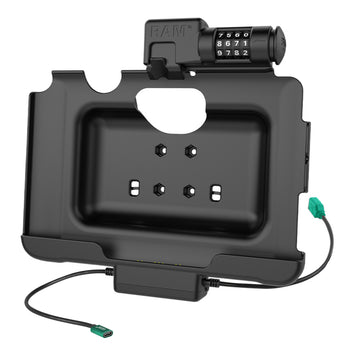

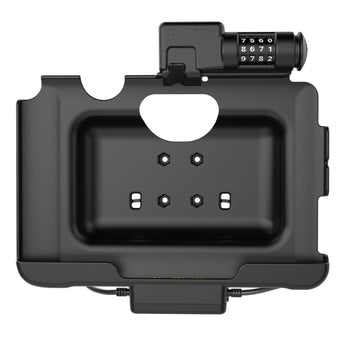

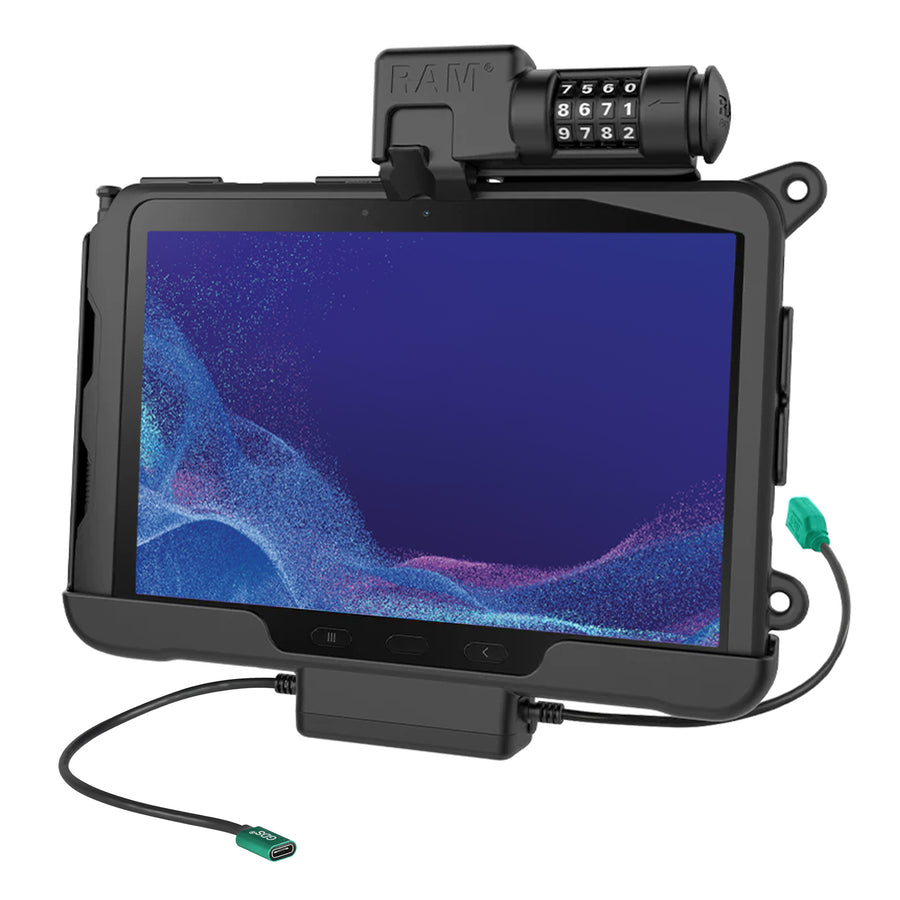

RAM® Combo-Locking Power + Data Dock for Tab Active5 Pro & 4 Pro
Part#: RAM-HOL-SAM57CPCL-1AU
UPC: 793442022128
$163.99

Overview

This power cradle for the Samsung Galaxy Tab Active5 Pro & 4 Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a combination lock that’s compatible with the RAM® Skin or factory device skin, as well as GDS® Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-A female pigtail, cable clamp, and zip ties.

Features

  • Combination locking powered dock supports the Samsung Galaxy Tab Active5 Pro & 4 Pro with factory Samsung case or with RAM® Skin; powered through integrated pogo pin connector

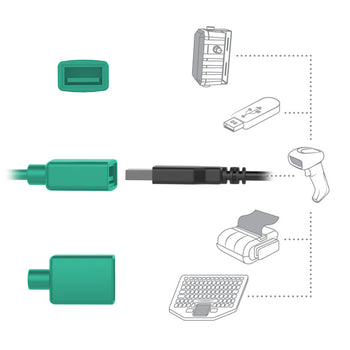

  • Powered via USB-C connector (Non-Power Delivery charger required); connect a single input device via USB-A connector
  • RAM® Mounts Compatible with AMPS hole pattern components
  • Made of high-strength composite materials for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

input voltage:

5.3-5.4VDC

output voltage:

5VDC

power output:

500mA

input connector:

USB Type-C Female

input cable length:

250mm

output connector:

USB 1.1 Type A

output cable length:

250mm

peripheral output:

500mAh

transfer speed:

12Mbps

Warranty:

3 year warranty

Weight:

1.12 lb

Additional Information:

Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case options here.
