Patented & Pats. Pend.

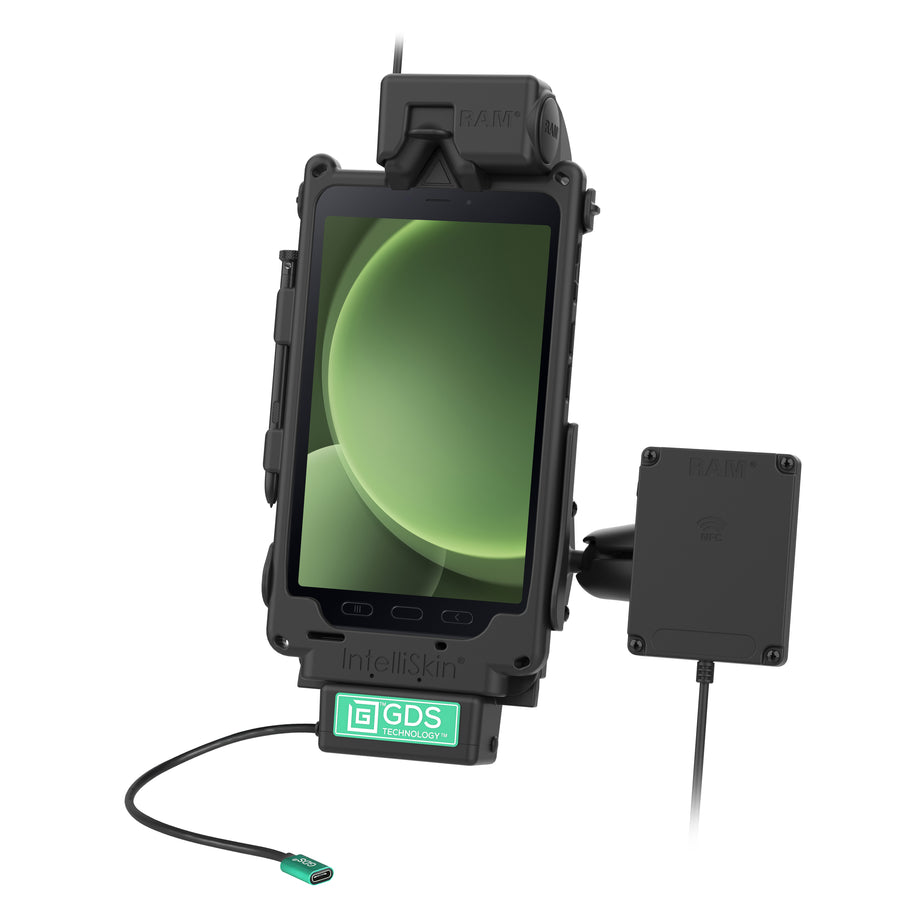

GDS® Tough-Dock™ for Tab Active5 & 3 with NFC Extender
Always Protected. Always Connected.®
Part#: RAM-GDS-DOCK-SAM62CP-NFCU
UPC: 793442928932
$289.49

Overview

The GDS® Tough-Dock™ is the newest vehicle dock in the GDS® Tech™ line of vehicle docks designed to support the Samsung Galaxy Tab Active5 & Tab Active3 in an IntelliSkin® Next Gen protective sleeve for your fleet. This kit features a diamond ball base paired with a double socket arm that enables use of the RAM® NFC Extender. The NFC extender acts as an extension of NFC readers on the back of compatible devices, giving end users easier access to programs like Tap to Pay, asset tracking, time management, and more. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the Samsung Galaxy Tab Active5 & Tab Active3. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

Features

  • Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging
  • Designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in an IntelliSkin® Next Gen protective sleeve
  • USB Type-C Female connector incorporated into the bottom docking cup provides high speed charging to the dock
  • NFC repeater supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more
  • Backed by a 3-year warranty

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite
Marine-grade aluminum

packaging type:

Poly Bag

output voltage:

5V - 12V @ 3A

power output:

15W

input connector:

USB Type-C

Warranty:

3 year warranty

Weight:

1.87 lb

Additional Information:

This product will not support the GDS® Hand-Stand™. This product will not support any NFC functionality of the Tab Active2

Potential interference of NFC functionality may occur when positioned close to strong magnets.

Print

Instructions

Assembly Instructions for NFC Repeater
