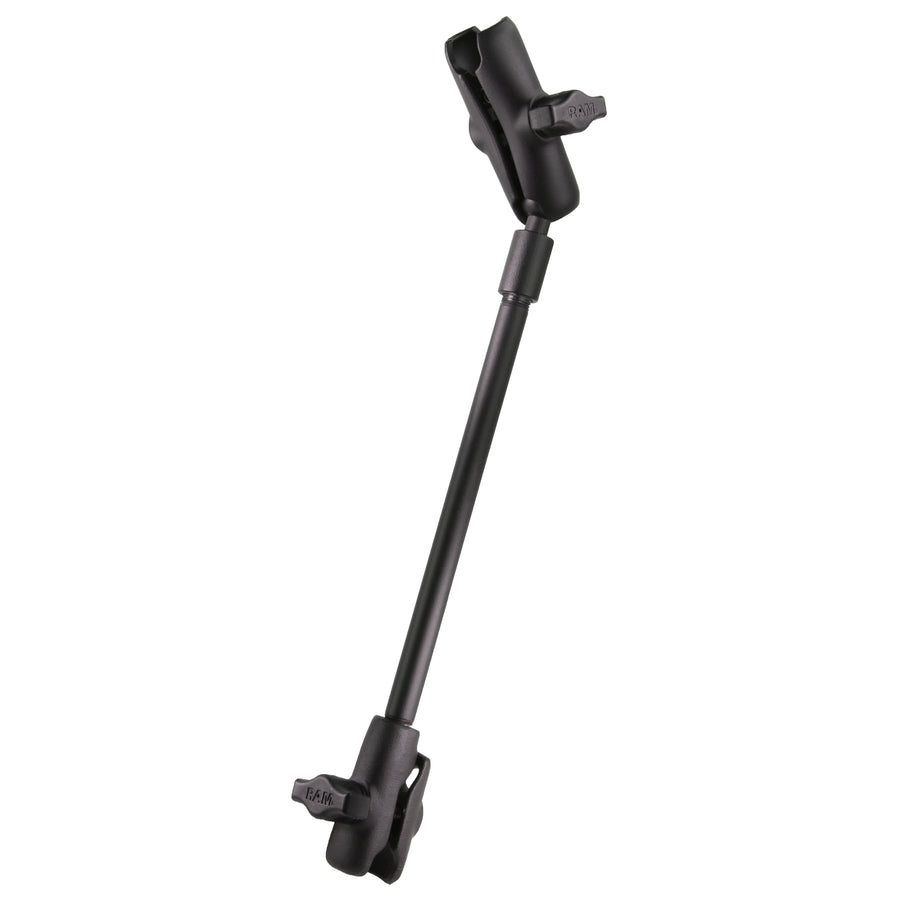

RAM^® Pipe & Socket 16" Extension Arm for Wheelchairs
Part #: RAM-B-200-9-201 UPC: 793442008085

Product Information
Overview	This kit is designed to mount nearly any phone to the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. The included B size short single socket arm can be attached to the RAM^® B size wheelchair track base (sold separately), and connects to the included pipe extension and medium double socket arm. To complete your setup, pair with a compatible B size phone holder.

Product Information

Overview

This kit is designed to mount nearly any phone to the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. The included B size short single socket arm can be attached to the RAM^® B size wheelchair track base (sold separately), and connects to the included pipe extension and medium double socket arm. To complete your setup, pair with a compatible B size phone holder.

Specifications
product dimensions	Overall Height: 16"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Retail Bag
Weight	0.77 lb

RAM<sup>®</sup> Pipe & Socket 16" Extension Arm for Wheelchairs

Questions about our products? Email us for support.

RAM^® Pipe & Socket 16" Extension Arm for Wheelchairs

Part#: RAM-B-200-9-201

UPC: 793442008085

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
