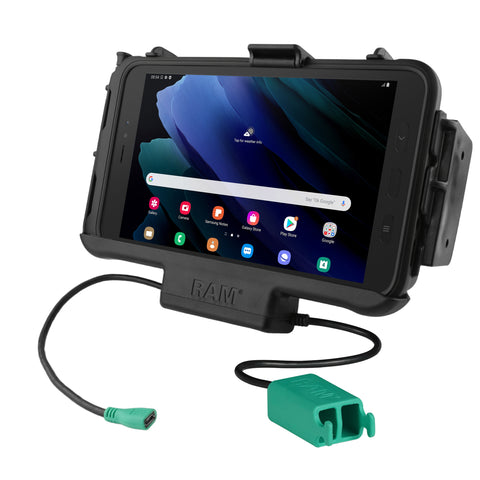

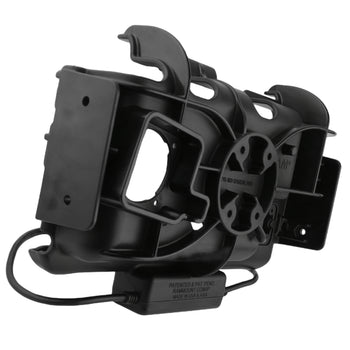

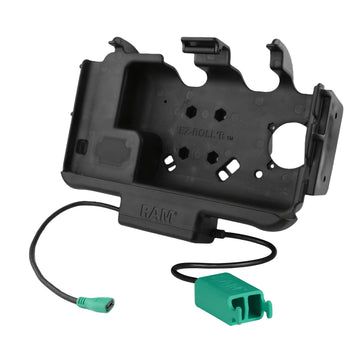

RAM® EZ Roll'r™ Modular Dual USB Dock for Samsung Tab Active5 & 3
$122.49
mUSB Power, 2 USB-A Peripherals
Features
- EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and mUSB cable

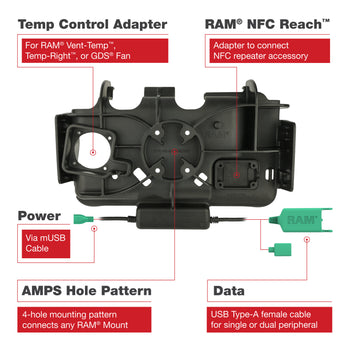

- Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
- Power delivered via mUSB connector; connect up to 2 input devices via dual USB-A connector
- Compatible with the Samsung OEM skin as well as the RAM® Skin™
- Backed by a 3-year warranty
The RAM® EZ Roll'r™ Modular Dual USB Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60PD2NU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties.
RAM® EZ Roll'r™ Modular Dual USB Dock for Samsung Tab Active5 & 3
Overview
The RAM® EZ Roll'r™ Modular Dual USB Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60PD2NU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties.

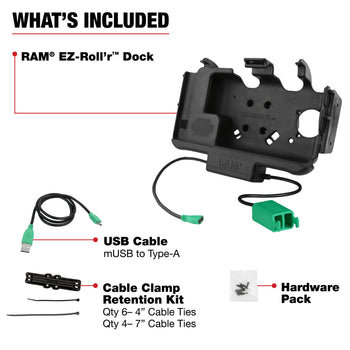

hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
4.4-5.4VDC (USB power source dependent)
output voltage
4.4VDC-5.4VDC (USB power source dependent)
power output
500mA per USB port
input connector
mUSB Female
input cable length
214mm
output connector
(2) USB 2.0 Type A
output cable length
217mm
peripheral output
900mAh (per port)
Warranty
3 year warranty
Weight
0.91 lb
Additional Information
This dock is not compatible with the GDS® Hand-Stand™.
