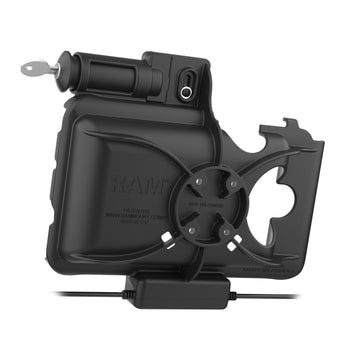

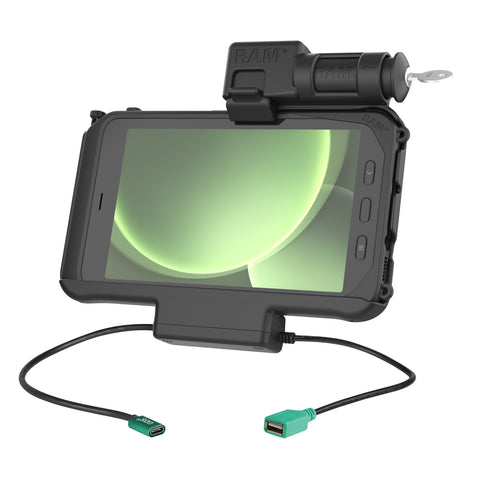

RAM® Key Locking Power + Data Dock for Samsung Tab Active5 & 3
$169.49
Key Lock, Power + USB-A Peripheral
Features
- Key locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- Contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
This key locking RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.
RAM® Key Locking Power + Data Dock for Samsung Tab Active5 & 3
Overview
This key locking RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.

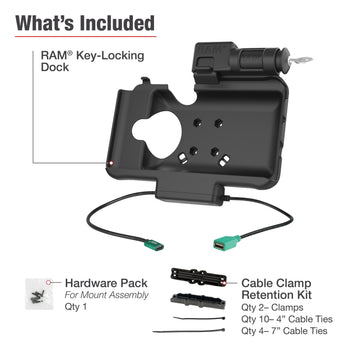

hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties
product dimensions
Width: 9.25"
Height: 7.75"
Depth: 3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
250mm
output connector
USB 1.1 Type A
output cable length
250mm
peripheral output
500mAh
transfer speed
12Mbps
Warranty
3 year warranty
Weight
1.1 lb
Additional Information
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
