RAM® Drill-Down Double Ball Mount for Humminbird Helix 7 - Medium

Part #: RAM-202-24-202U UPC: 793442948589

Features

Complete flat surface, drill-down mounting solution for the Humminbird Helix 7; RAM® Mounts ball and socket technology allows for near-infinite adjustability
Includes 2.5" round base with C size 1.5" rubber ball, medium length C size double socket arm, and a 1.5" x 3.5" rectangle base with C size 1.5" rubber ball that connects to your Humminbird Helix 7
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

RAM® Drill-Down Double Ball Mount for Humminbird Helix 7 - Medium

Product Information

Overview

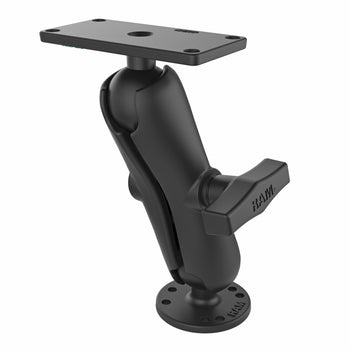

The RAM® Drill-Down Double Ball Mount for Humminbird Helix 7 (RAM-202-24-202U) is a rugged, adjustable mounting solution designed for reliable performance on the water. Constructed from powder-coated, marine-grade aluminum, this mount includes a C size medium-length double socket arm, a 2.5" round base with the universal AMPS hole pattern for drill-down installation, and a 2" x 4" rectangular ball adapter for the Humminbird Helix 7. Its overmolded rubber ball helps absorb shock and vibration for a smoother, more secure experience.

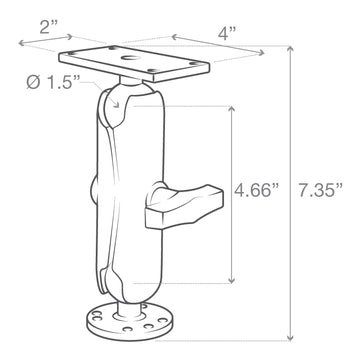

Specifications
product dimensions	Overall Height: 7.35"
socket to socket length	4.66"
hole pattern	Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter Rectangular Plate: 1.5" x 3.5"
plate size	Top Plate: 2" x 4" Bottom Plate: 2.5" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.24 lb

RAM® Drill-Down Double Ball Mount for Humminbird Helix 7 - Medium

Name: RAM® Drill-Down Double Ball Mount for Humminbird Helix 7 - Medium
Brand: RAM Mounts
SKU: RAM-202-24-202U
Price: 73.49 USD
Availability: InStock

Part#: RAM-202-24-202U

UPC: 793442948589

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
