Overview

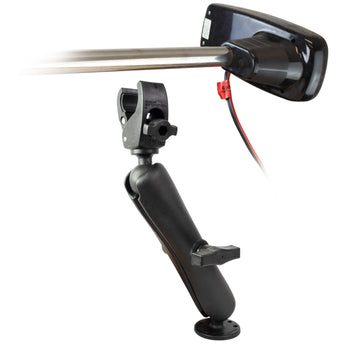

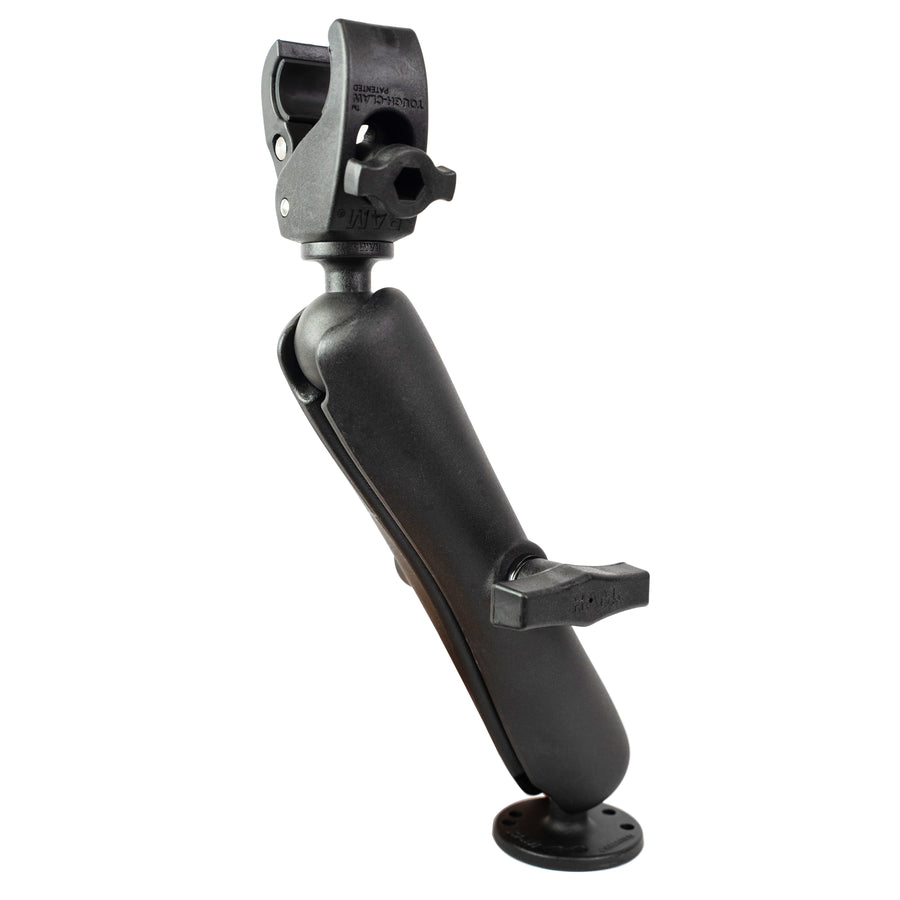

Ideal for stabilizing trolling motors, the RAP-400-D-202U consists of the small RAM® Tough-Claw™ base, C size long double socket arm, and round base adapter. The RAM® Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails, and bars. The RAM® Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. The round base adapter contains the industry standard universal AMPS hole pattern. This mount is designed with RAM® C size 1.5" diameter patented ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
Features
- Includes small version of the RAM® Tough-Claw™, long length C size RAM® double socket arm, and 2.5" round plate with C size 1.5" RAM® rubber ball

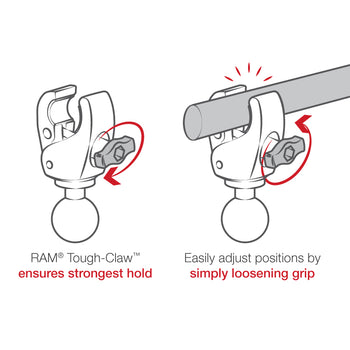

- Small RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
clamp range:
.625" - 1.14" diameter
socket to socket length:
8"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
2.19 lb
Questions & Answers
Have a Question?
-
what is the total height of from mounting base to trolling motor shaft clamp?
The total height of the RAP-400-D-202U is approximately 12" from the bottom of the drill down base to the inside of the clamping area of the Tough Claw.
