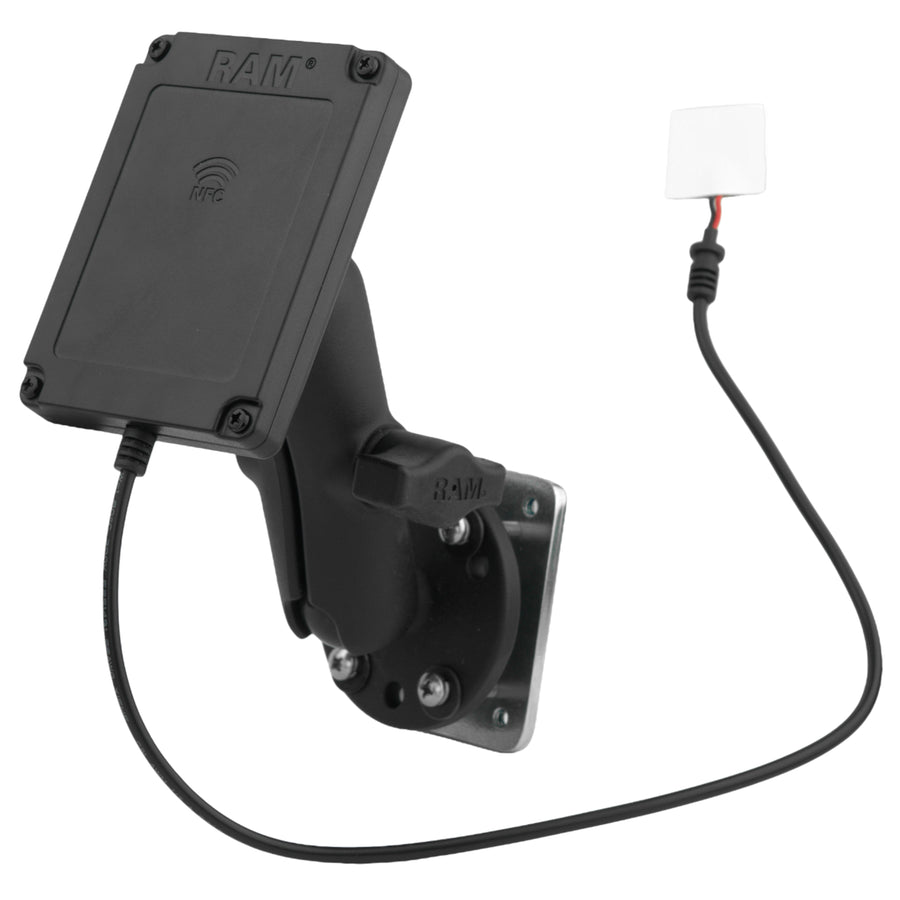

RAM^® NFC Extender with Dashboard Mount
Part #: RAM-B-101-225B-NFCU UPC: 793442802904 Patented Features Includes 2.10" x 2.60" steel backing plate with B size RAM^® double ball mount and NFC repeater NFC repeater extends to 30cm of reach and attaches to the back of select RAM^® and GDS^® tablet docks Supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more Backed by a 3-year warranty

RAM^® NFC Extender with Dashboard Mount

Part #: RAM-B-101-225B-NFCU UPC: 793442802904 Patented

Features

Includes 2.10" x 2.60" steel backing plate with B size RAM^® double ball mount and NFC repeater
NFC repeater extends to 30cm of reach and attaches to the back of select RAM^® and GDS^® tablet docks
Supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more
Backed by a 3-year warranty

RAM<sup>®</sup> NFC Extender with Dashboard Mount

Product Information
Overview	This NFC repeater dashboard mount with backing plate (RAM-B-101-225B-NFCU) consists of a NFC repeater, double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles. The NFC mount is ideal for transportation applications.

Product Information

Overview

This NFC repeater dashboard mount with backing plate (RAM-B-101-225B-NFCU) consists of a NFC repeater, double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1" diameter rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles. The NFC mount is ideal for transportation applications.

Specifications
hardware included	Assembly Hardware
socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Steel Marine-grade alluminum High strength composite
packaging type	Poly Bag
Weight	0.83 lb
Additional Information	Potential interference of NFC functionality may occur when positioned close to strong magnets.

RAM<sup>®</sup> Drill-Down Dashboard Mount with NFC Repeater Accessory

Questions about our products? Email us for support.

Patented

RAM^® NFC Extender with Dashboard Mount

Part#: RAM-B-101-225B-NFCU

UPC: 793442802904

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$123.49

Options

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Includes 2.10" x 2.60" steel backing plate with B size RAM^® double ball mount and NFC repeater
NFC repeater extends to 30cm of reach and attaches to the back of select RAM^® and GDS^® tablet docks
Supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more
Backed by a 3-year warranty

hardware included:

Assembly Hardware

socket to socket length:

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Steel
Marine-grade alluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.83 lb

Additional Information:

Potential interference of NFC functionality may occur when positioned close to strong magnets.
