RAM® Trolling Motor Stabilizer - Tough-Claw™ .625" - 1.14" Medium Arm
Part#: RAP-400-202U
UPC: 793442946882
Ball Icon C Size
Arm Icon Medium Arm
$87.49

Overview

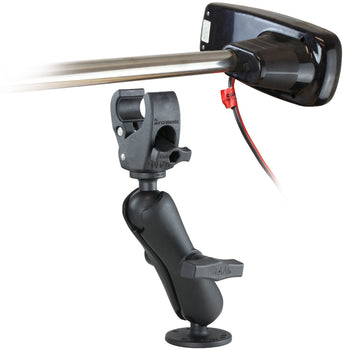

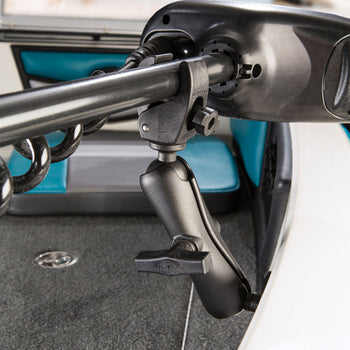

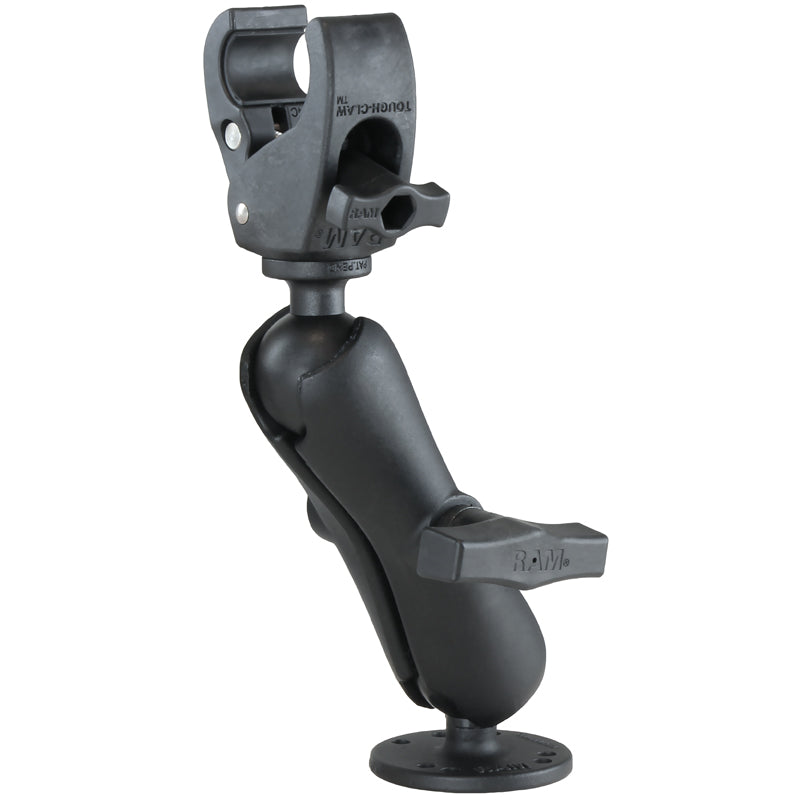

Ideal for stabilizing trolling motors, the RAP-400-202U consists of the small RAM® Tough-Claw™ base, C size medium length double socket arm, and round base adapter. The RAM® Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails, and bars. The RAM® Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. The round base adapter contains the industry standard universal AMPS hole pattern. This mount is designed with RAM® C size 1.5" diameter patented ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

Features

  • Includes small version of the RAM® Tough-Claw™, medium length C size RAM® double socket arm, and 2.5" round plate with C size 1.5" RAM® rubber ball

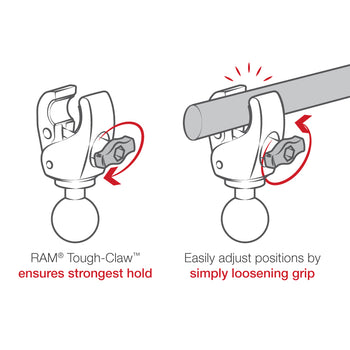

  • Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

clamp range:

.625" - 1.14" diameter

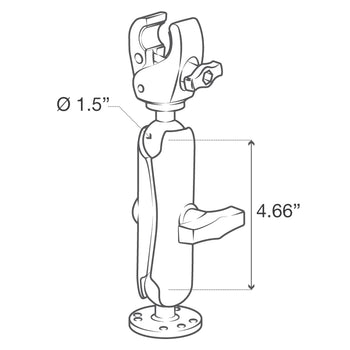

socket to socket length:

4.66"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size:

2.5" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.32 lb

Print

Documents

Drawing File - RAM Tough-Claw Base
On-Water Catalog

Questions & Answers

Have a Question?

Ask a Question

  • Is there a lock for the tough claw on this kit?

    No, we don't have a lock for the tough claws, but you can lock that double socket arm on that kit with either RAM-KNOB5LU or RAP-S-KNOB5U.

  • What size screws are needed for the holes on this ball plate?

    The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.

  • Can I by the claw seperate?

    With ball: RAM® Tough-Claw™ Small Clamp Ball Base – RAM Mounts

    Without ball: RAM® Tough-Claw™ Small Clamp Base with RAM® Pin-Lock™ Pattern – RAM Mounts

  • Can you get this with a bow rail mount instead of the screw base?

    Yes, but this is not available as a complete kit. If you select RAP-400U and RAM-201U, you can then pair these components with any C Size ball base that you can find here. You can select the proper Clamp Range filter on the left to narrow down the base options that will support the size of your rail.
