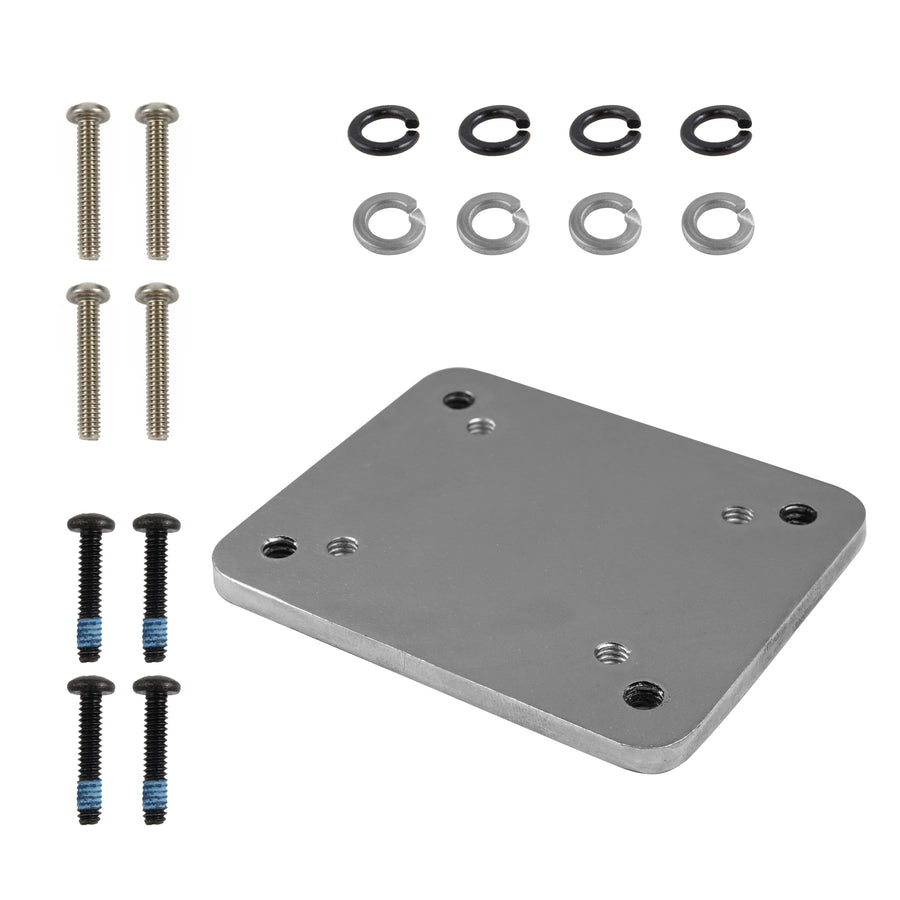

RAM® Backing Plate Adapter

rammount.com
1-800-497-7479
sales@rammount.com

RAM^® Backing Plate Adapter
Part #: RAM-202-225B-2U UPC: 793442114090 Features 2.10" x 2.60" steel backing plate with hardware attaches to a variety of RAM^® Mounts ball bases Includes screws and lock washers Backed by a lifetime warranty

Product Information
Overview	2.10” x 2.60” steel backing plate with hardware and two hole patterns: 4-hole AMPS pattern with #8-32 threaded holes, and 4-hole 2" x 2.5" pattern with #10-24 threaded holes. Included hardware can attach to ball bases such as RAM-202U and RAM-202U-225

Specifications
hardware included	(1) 2.1" x 2.6" Stainless Steel Backing Plate (4) #10-24 x 1" Machine Screws (4) #10 Lock Washers (4) #8-32 x 1" Machine Screws (4) #8 Lock Washers
product dimensions	2.1" x 2.6" x .15"
hole pattern	4-Hole AMPS: 1.181" x 1.496" (#8-32) 1.5" x 2" (#10-24)
materials	Steel
packaging type	Poly Bag
Weight	0.32 lb

Video Thumbnail — YouTube video thumbnail for Uuf9odZCCmE

Questions about our products? Email us for support.

RAM^® Backing Plate Adapter

Part#: RAM-202-225B-2U

UPC: 793442114090

$12.49

Overview

2.10” x 2.60” steel backing plate with hardware and two hole patterns: 4-hole AMPS pattern with #8-32 threaded holes, and 4-hole 2" x 2.5" pattern with #10-24 threaded holes. Included hardware can attach to ball bases such as RAM-202U and RAM-202U-225

Features

2.10" x 2.60" steel backing plate with hardware attaches to a variety of RAM^® Mounts ball bases
Includes screws and lock washers
Backed by a lifetime warranty

hardware included:

(1) 2.1" x 2.6" Stainless Steel Backing Plate
(4) #10-24 x 1" Machine Screws
(4) #10 Lock Washers
(4) #8-32 x 1" Machine Screws
(4) #8 Lock Washers

product dimensions:

2.1" x 2.6" x .15"

hole pattern:

4-Hole AMPS: 1.181" x 1.496" (#8-32)
1.5" x 2" (#10-24)

materials:

Steel

packaging type:

Poly Bag

Weight:

0.32 lb

Print

Questions & Answers

Have a Question?

Ask a Question

Will it work with a 109v 1u

These 2 parts are not compatible with each other.
Will this backing plate fit RAM-D-109HS-4U?

This is not compatible with the RAM-D-109HS-4U.
Is there a rectangular base this backing plate is compatible with?

Yes, either the RAM-347U (rectangular AMPS base plate with a 1.5" diameter ball) or the RAM-B-347U (rectangular AMPS base plate with 1" diameter ball) can be used with the RAM-202-225B-2U.
