RAM® Double Ball Mount for Lowrance Elite-5 & Elite-7 Ti + More
Part #: RAM-101-LO11 UPC: 793442933899 Features Drill-down mounting solution for Lowrance devices RAM® Mounts ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments Backed by a lifetime warranty

Product Information

Overview

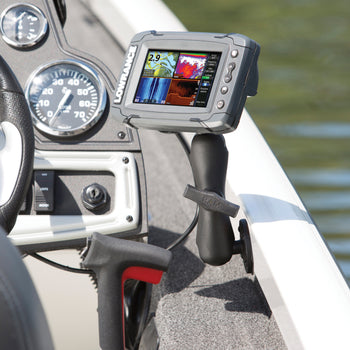

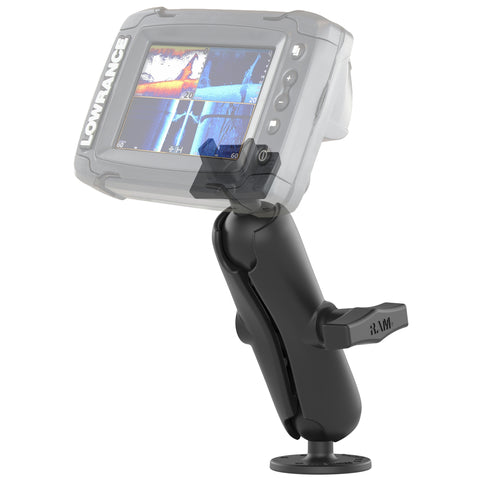

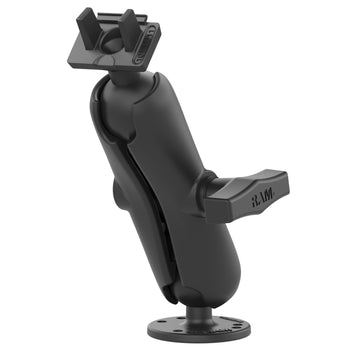

The RAM® Double Ball Mount for Lowrance Elite-5 & Elite-7 Ti + More (RAM-101-LO11) is a complete, drill-down mounting solution for compact Lowrance fish finders. This kit consists of C size components, including a 2.5" diameter round base, medium-length double socket arm, and adapter inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5, and MARK-5 fish finders. The adapter base serves as a quick release mechanism, allowing you to remove or transfer your fish finder in seconds. The patented rubber ball for use within the double socket arm system, allowing for almost infinite adjustment and perfect viewing angles. The drill-down base features the universal 4-hole AMPS pattern.

Specifications
product dimensions	Overall Height: 7.35"
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Retail Box
Weight	1.22 lb
Additional Information	This product is not compatible with the standard Lowrance Elite-7.

RAM® Double Ball Mount for Lowrance Elite-5 & Elite-7 Ti + More

Name: RAM® Double Ball Mount for Lowrance Elite-5 & Elite-7 Ti + More
Brand: RAM Mounts
SKU: RAM-101-LO11
Price: 72.99 USD
Availability: InStock

Part#: RAM-101-LO11

UPC: 793442933899

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
