Key Locking

Features

  • Locking, spring-loaded vehicle dock featuring GDS® Technology™ for data and fast charging capabilities for an IntelliSkin®-wrapped Zebra EM45/EM45 RFID

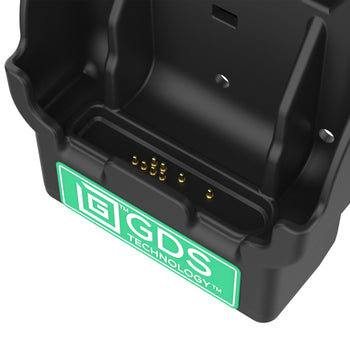

  • Charging capabilities provided USB-C connector and built-in pogo pin docking contacts for a seamless charging experience
  • Compatible with C size RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty
GDS® Powered Locking Vehicle Dock for Zebra EM45 with IntelliSkin®
Always Protected. Always Connected.®
Part#:RAM-GDS-DOCKL-ZE38-A-PU UPC:793442027130 Patented & Pats. Pend.

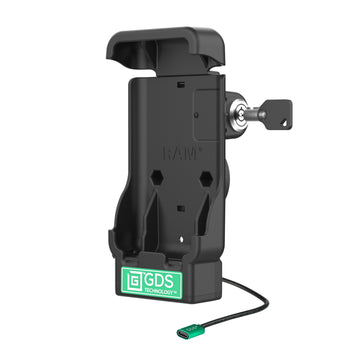

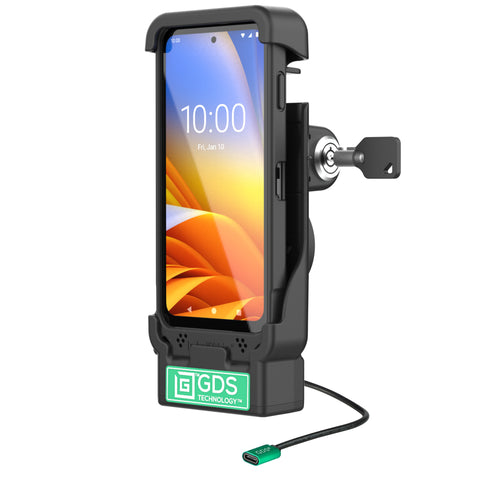

The GDS® Powered Locking Vehicle Dock for Zebra EM45 with IntelliSkin® (RAM-GDS-DOCKL-ZE38-A-PU) is a spring-loaded, quick-release holder that offers a secure fit with easy access to the mounted device. This docking station features a top-cup molded for the Zebra EM45, ensuring the device stays safe on the roughest roads. When docked, the built-in pogo pin docking contacts provide a seamless charging experience, powered by the USB-C female connector. The key lock provides peace of mind and theft deterrence for high-traffic environments. Complete the solution by building your mount—these docks are RAM® Compatible™ equipped with a 2-hole AMPS pattern for adding a diamond ball adapter. Always Protected. Always Connected.®

hardware included

(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit

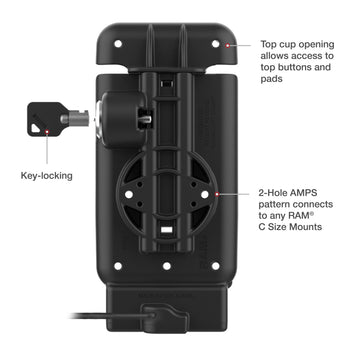

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

output voltage

5V - 12V @ 3A

power output

15W

input connector

USB Type-C

input cable length

380mm

Warranty

3 year warranty
