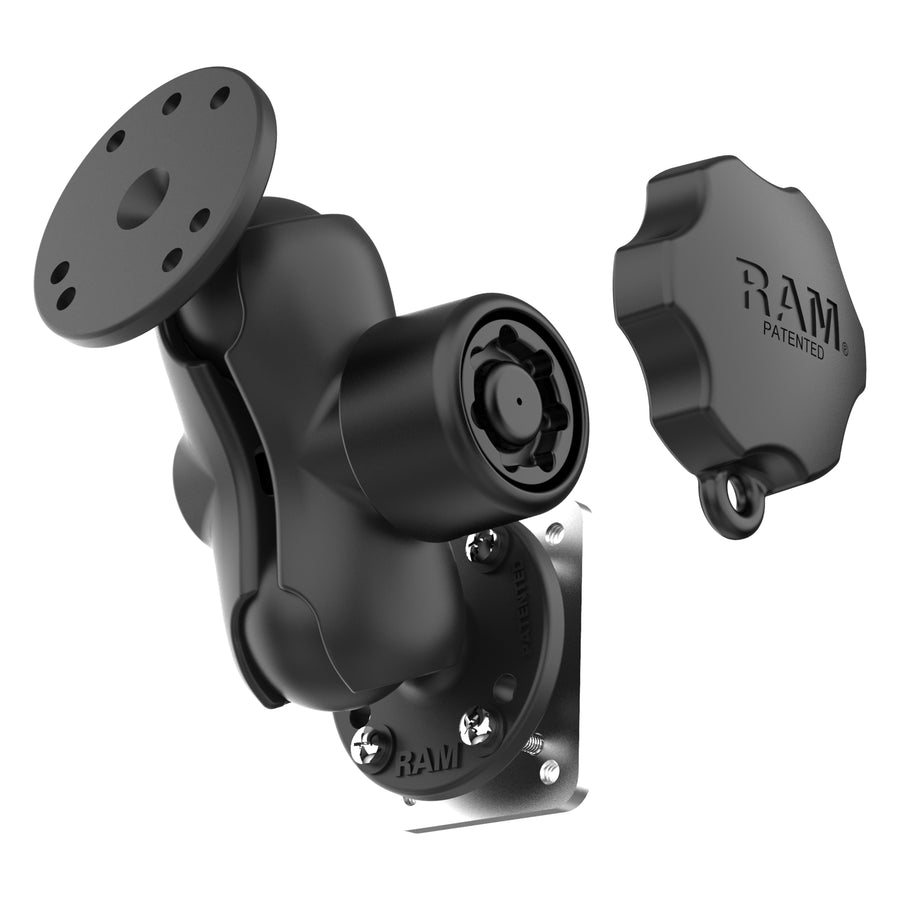

RAM^® Locking Drill-Down Dashboard Mount with Backing Plate C Size Short
Part #: RAM-101L-B-225B2U UPC: 793442028793 Features Drill-down double ball mount with 2.10" x 2.60" steel backing plate that connects to RAM^® components containing the universal AMPS hole pattern Theft deterring, tamper resistant security knob provides peace of mind Includes C size 1.5" RAM^® rubber ball and short length double socket arm; ball and socket technology allows for near-infinite adjustability Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Locking Drill-Down Dashboard Mount with Backing Plate C Size Short

Part #: RAM-101L-B-225B2U UPC: 793442028793

Features

Drill-down double ball mount with 2.10" x 2.60" steel backing plate that connects to RAM^® components containing the universal AMPS hole pattern
Theft deterring, tamper resistant security knob provides peace of mind
Includes C size 1.5" RAM^® rubber ball and short length double socket arm; ball and socket technology allows for near-infinite adjustability
Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Locking Drill-Down Dashboard Mount with Backing Plate C Size Short

Product Information
Overview	The RAM^® Drill-Down Dashboard Mount with Backing Plate - C Size Short (RAM-101L-B-225B2U) is our go-to mount and component option for securing any holder or dock to a vehicle's dashboard. This bundle includes a C size short length double socket arm with a Pin-Lock^™ Security Knob, two round 2.5" diameter round bases with the universal AMPS hole pattern, and one 2.10” x 2.60” steel backing plate (hardware included). RAM^®'s patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling perfect viewing and operating angle of your device.

Product Information

Overview

The RAM^® Drill-Down Dashboard Mount with Backing Plate - C Size Short (RAM-101L-B-225B2U) is our go-to mount and component option for securing any holder or dock to a vehicle's dashboard. This bundle includes a C size short length double socket arm with a Pin-Lock^™ Security Knob, two round 2.5" diameter round bases with the universal AMPS hole pattern, and one 2.10” x 2.60” steel backing plate (hardware included). RAM^®'s patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling perfect viewing and operating angle of your device.

Specifications
hardware included	(1) Key
product dimensions	Overall Height: 5.225"
socket to socket length	2.5"
hole pattern	Round Plate: 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum Steel
packaging type	Poly Bag
Weight	1.35 lb

Questions about our products? Email us for support.

RAM^® Locking Drill-Down Dashboard Mount with Backing Plate C Size Short

Part#: RAM-101L-B-225B2U

UPC: 793442028793

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$75.49

Options

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Drill-down double ball mount with 2.10" x 2.60" steel backing plate that connects to RAM^® components containing the universal AMPS hole pattern
Theft deterring, tamper resistant security knob provides peace of mind
Includes C size 1.5" RAM^® rubber ball and short length double socket arm; ball and socket technology allows for near-infinite adjustability
Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

(1) Key

product dimensions:

Overall Height: 5.225"

socket to socket length:

2.5"

hole pattern:

Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum
Steel

packaging type:

Poly Bag

Weight:

1.35 lb
