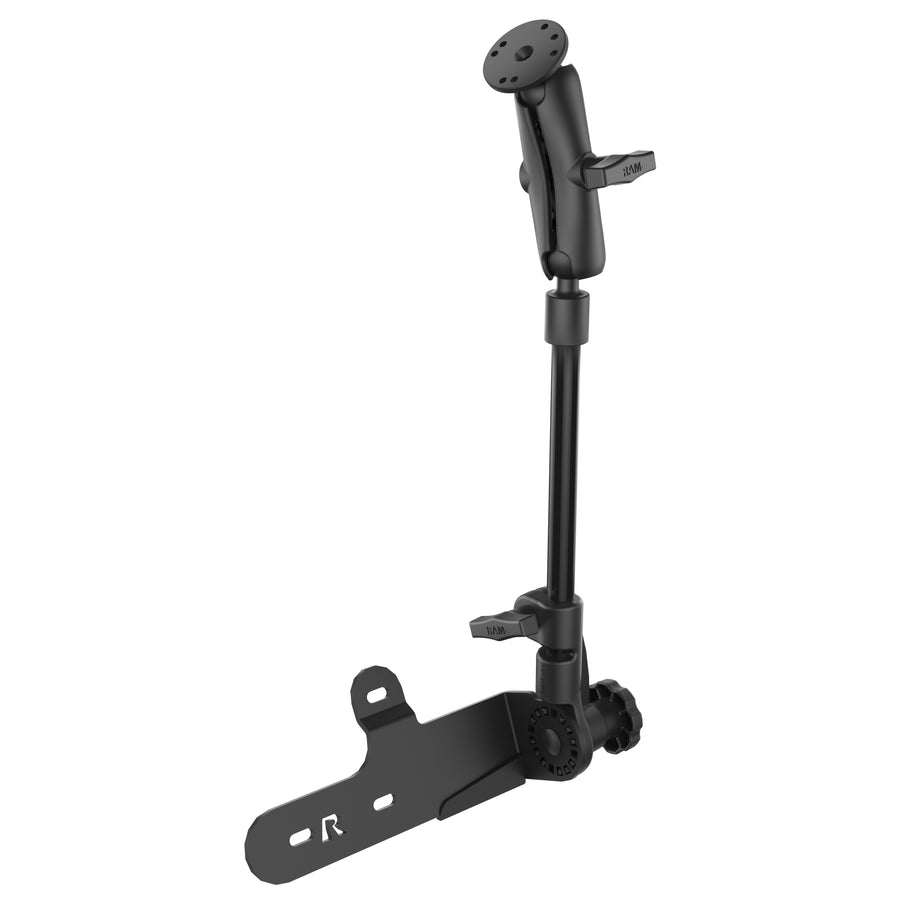

RAM® Pod HD™ Vehicle Mount for ’07-’24 Mercedes Sprinter Van
Part #: RAM-316-HD-18-202-SPRU UPC: 793442008504 Patented

Product Information

Overview

Blending the best of versatility, strength and installation ease, the RAM® Pod HD™ is a workhorse for fleet transportation and serious consumers alike. This version of the RAM® Pod HD™ vehicle mount is designed for 2007-2019 Mercedes Sprinter vans, and is RAM® Mounts Compatible™ with device holders for tablets, small laptops, and other devices. Requiring minimal space in the vehicle cab, the RAM® Pod HD™ can be removed without the use of tools.

Specifications
hardware included	Assembly Hardware (3) 1.68" Stand-Offs (3) M8-1.25 x 70mm Hex Bolts (4) M8 Steel Washers (3) 5/16" Lock Washers (1) M8-1.25 Nut Stabilizer Foot
product dimensions	Height Range: 24.75" - 31.75"
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	See Drawing
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Powder coated steel Marine-grade aluminum
packaging type	Poly Bag
Weight	4.72 lb

RAM® Pod HD™ Vehicle Mount for ’07-’24 Mercedes Sprinter Van

Patented

RAM® Pod HD™ Vehicle Mount for ’07-’24 Mercedes Sprinter Van

Name: RAM® Pod HD™ Vehicle Mount for ’07-’24 Mercedes Sprinter Van
Brand: RAM Mounts
SKU: RAM-316-HD-18-202-SPRU
Price: 261.99 USD
Availability: InStock

Part#: RAM-316-HD-18-202-SPRU

UPC: 793442008504

$261.99

Overview

hardware included:

Assembly Hardware
(3) 1.68" Stand-Offs
(3) M8-1.25 x 70mm Hex Bolts
(4) M8 Steel Washers
(3) 5/16" Lock Washers
(1) M8-1.25 Nut
Stabilizer Foot

product dimensions:

Height Range: 24.75" - 31.75"

socket to socket length:

4.66"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size:

See Drawing

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Powder coated steel
Marine-grade aluminum

packaging type:

Poly Bag

Weight:

4.72 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

RAM® Pod HD™ Vehicle Mount for '07-19 Sprinter Van

Documents

RAM® Pod HD™ Compatibility Guide

Transportation Catalog

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

RAM® Pod HD™ Vehicle Mount for ’07-’24 Mercedes Sprinter Van

$261.99

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size	Ball Diameter	Max Load*	Best For
A	0.56" (14.3 mm)	0.5 lb	Action cameras and other ultra-light devices
B	1" (25.4 mm)	2 lbs	Phones, GPS units, and small tablets — the most common size
C — this product	1.5" (38.1 mm)	4 lbs	Large tablets, fish finders, and rougher rides
D	2.25" (57.2 mm)	6 lbs	Rugged tablets, laptops, and heavy equipment
E	3.38" (85.9 mm)	15 lbs	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

Short, medium, and long double socket arms compared side by side. This product uses a Medium arm — Arm lengths

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length	Measurement	A Size	B Size	C Size — this product's ball size	D Size	E Size
Short	Overall Length	N/A	2.42"	3.56"	5.69"	5.69"
Short	Socket-to-Socket Length	N/A	1.75"	2.5"	4.66"	4.66"
Medium	Overall Length	2.42"	3.73"	5.69" — this product	8.44"	12.63"
Medium	Socket-to-Socket Length	1.75"	3"	4.66"	6.88"	9.88"
Long	Overall Length	3.56"	6"	9.13"	12.98"	N/A
Long	Socket-to-Socket Length	3.12"	5.31"	8"	11.41"	N/A
