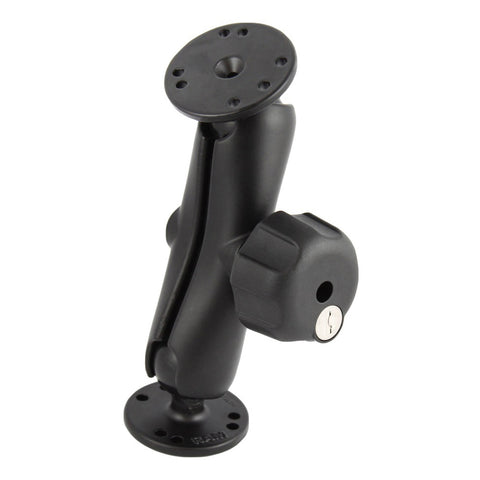

RAM® Double Ball Mount with Key Lock Knob - C Size Medium
Part #: RAM-101U-L UPC: 793442005565

Product Information
Overview	The RAM-101U-L consists of a medium length C size double socket arm and two round plates with the 1.5" diameter C size ball. The round plates each have the industry standard 4 hole AMPS hole pattern, as well as a 3 hole 120 degree offset pattern. The tightening knob has been replaced with a keyed locking knob on the double socket arm. standard AMPS four hole pattern and a three hole 120 degree hole pattern.

Product Information

Overview

The RAM-101U-L consists of a medium length C size double socket arm and two round plates with the 1.5" diameter C size ball. The round plates each have the industry standard 4 hole AMPS hole pattern, as well as a 3 hole 120 degree offset pattern. The tightening knob has been replaced with a keyed locking knob on the double socket arm. standard AMPS four hole pattern and a three hole 120 degree hole pattern.

Specifications
hardware included	(2) Keys
product dimensions	Overall Height: 7.35"
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.32 lb

RAM® Double Ball Mount with Key Lock Knob - C Size Medium

Part#: RAM-101U-L

UPC: 793442005565

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
