$93.99
Short Arm, Diamond Plate

Features

  • 2.43" x 1.31" diamond plate connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes 4" clamping base for posts and a short length, C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

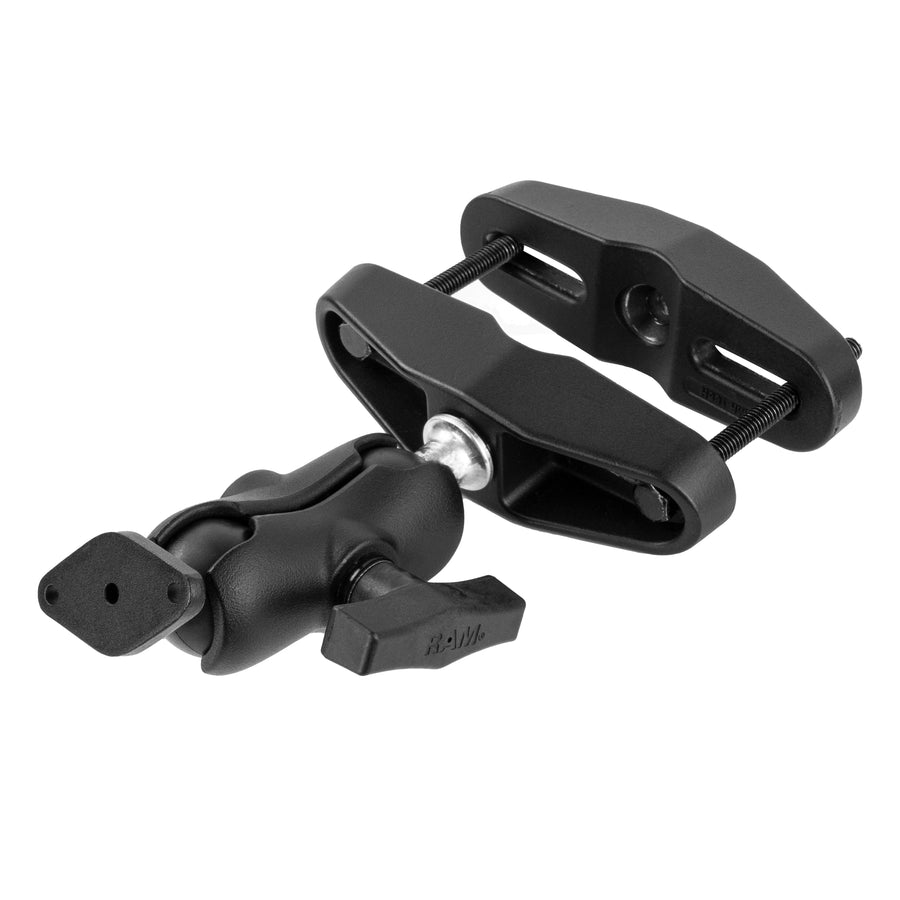

RAM® Universal Post Clamp Mount with Diamond Plate - C Size Short Arm
Part#:RAM-102U-B-247 UPC:793442018336
The RAM® Universal Post Clamp Mount with Diamond Plate - C Size Medium Arm (RAM-102U-B-247) is a mounting solution designed to secure large handheld devices to forklifts. This kit consists of one (1) double socket C size short arm, one (1) diamond plate with C size ball, and one (1) square post clamp. The square post clamp will wrap around a square post with a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. The RAM® rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.

hardware included

Assembly Hardware

clamp range

1.75" - 4" width

socket to socket length

2.5"

hole pattern

2-Hole AMPS 1.912"

plate size

2.43" x 1.31"

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

2.05 lb

Components

RAM® Diamond Ball Base - C Size RAM-238U $15.99
RAM® Double Socket Arm - C Size Short RAM-201U-B $27.49
RAM® Square Post Clamp Base for Posts 1.75" - 4" Wide - C Size RAM-247U $58.99
