Overview

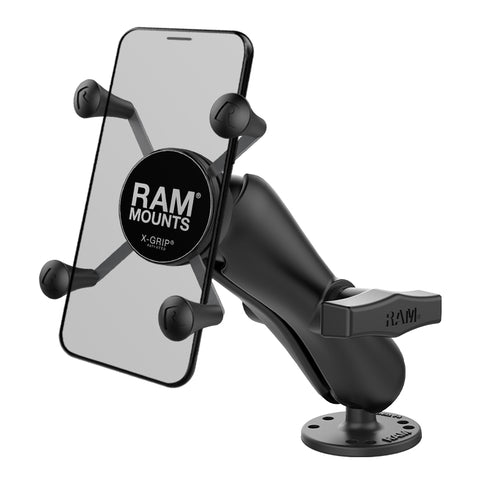

The RAM-138-UN7U consists of a round flat plate, double socket arm and universal X-Grip® cradle. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved.
hardware included:

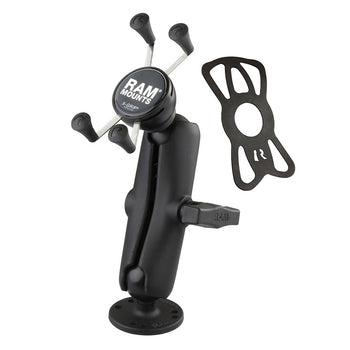

(1) Optional Tether
(1) Glue Tube for Rubber Caps
holder dimensions:
Width Range: 1.875" - 3.25"
Depth Range: .875" max
socket to socket length:
4.66"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
1.19 lb
Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Questions & Answers
Have a Question?
-
I noticed my phone can be rotated back and forth about 15 degrees when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
