Overview

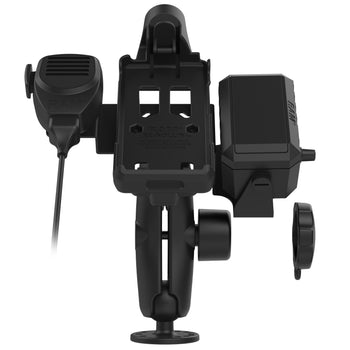

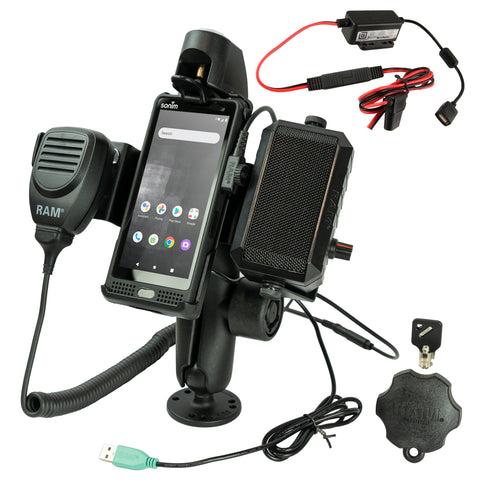

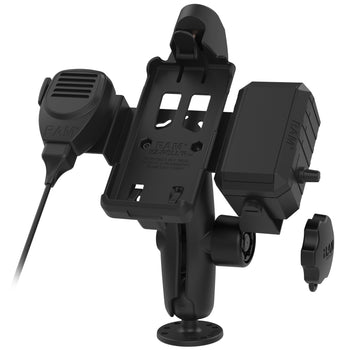

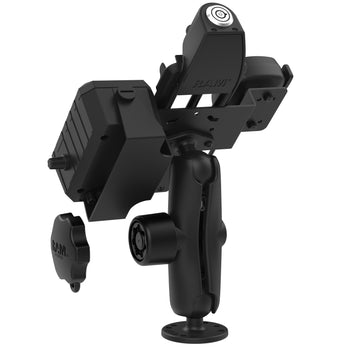

This Sonim XP10 bundle includes the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP10, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP10 and keeps your peripherals together and connected as one unit. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger. Optional backing plate not included
Features
- Bundle for Sonim XP10 includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
- Powered RAM® EZ-Roll'r™ form-fit dock provides a perfect fit for your device while keeping the device charged

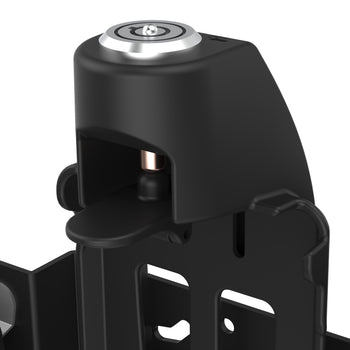

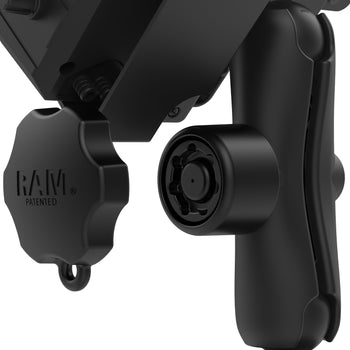

- Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
- RAM® components backed by lifetime warranty; dock and electronics backed by a 3-year warranty

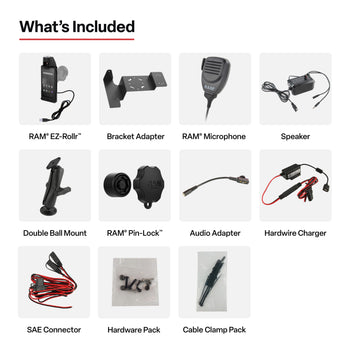

hardware included:
Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob
(1) 10-pin to 3.5 Audio Adapter Cable
(1) Modular Hardwire Charger

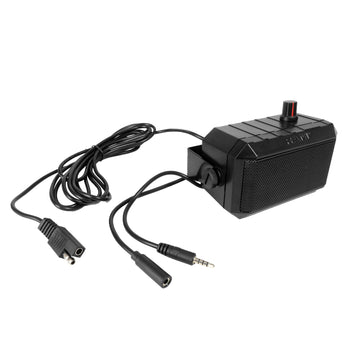

speaker specifications:
Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker
socket to socket length:
4.66"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
High strength composite
Powder-Coated Steel
packaging type:
Poly Bag
input voltage:
10-30VDC
output voltage:
5-9VDC*
output current:
2.5A max
input connector:
Charger: Female USB Type A
input cable length:
1.2 Meters including 2 Pole Flat Marine Connector
output cable length:
.2 Meters
operating temperature:
-10°C to +70°C
storage temperature:
-40°C to +70°C
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications:
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty:
3 year warranty
Weight:
4.24 lb
Additional Information:
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
