GDS® Audio™ Amplified Speaker with PTT Breakout Feature
$87.49
Overview

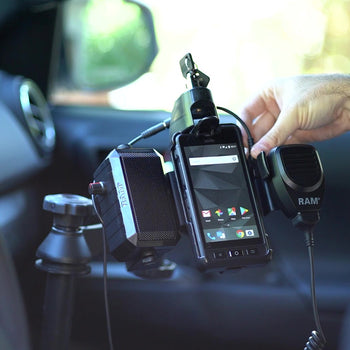

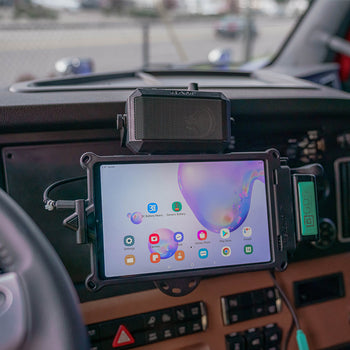

The GDS® Audio™ Amplified Speaker with PTT Breakout Feature (RAM-SPEAK-A03) delivers powerful, reliable sound for in-cab communication—no batteries required. Hardwire it directly into your vehicle or connect via a GDS® hardwire charger using the SAE connector. The built-in audio breakout feature supports an optional PTT microphone or headset (sold separately), enabling half- or full-duplex conversations depending on your setup. With an adjustable output of up to 99dB, this speaker ensures clear audio even in noisy environments. Integrated overcurrent, short circuit, and overvoltage protection provide added peace of mind. Designed as part of the GDS® Ecosystem™, the speaker easily mounts to any GDS® vehicle dock with the included short or standard bracket adapter and hardware.
Features
- PTT-enabled amplification speaker with independent adjustable volume knob

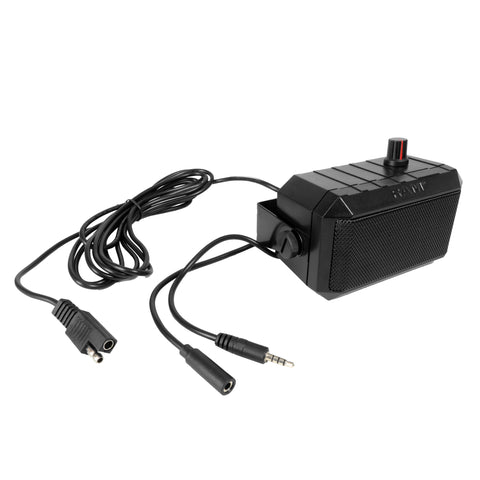

- Includes SAE hardwire power input cable, audio input cable and audio output cable
- 99db max volume level
- Backed by a 3-year warranty
hardware included:
Mounting Bracket
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
speaker specifications:
Independently adjustable volume knob
Max volume level: 99dB
8Ω / 10W rated speaker
packaging type:
Box
input voltage:
9-26VDC
power output:
Peak Power: 10W
RMS Power: 8W
input connector:
3.5mm TRRS connector, with a modified CTIA pin map for audio in/out
input cable length:
2.5 Meter SAE Cable
output cable length:
150mm long audio cable with 3.5mm mono plug jack
operating temperature:
-20°C to +80°C
storage temperature:
-40°C to +85°C
regulatory:
Over current protection, short circuit protection and over volatage protection
certifications:
FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a
Warranty:
3 year warranty
Weight:
0.99 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
