RAM® Tube™ Rod Holder with RAM® Track Ball™ Base
Part #: RAP-119-TRA1U UPC: 793442954887

Product Information

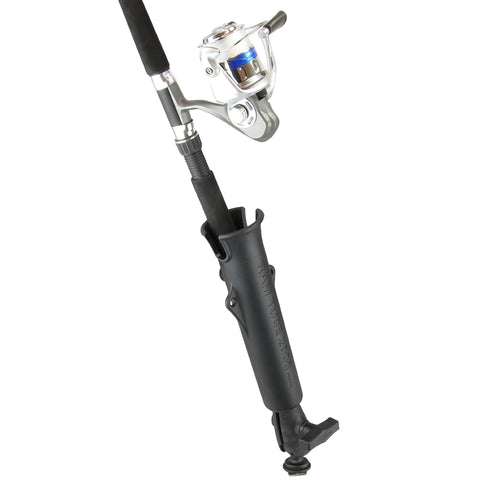

Overview	The RAP-119-TRA1U consists of the RAM-TUBE™ 2008 fishing rod holder and Track Ball™ for any track system including the RAM Tough-Track™. Offering the patented RAM rubber ball and socket feature, you can rotate the rod holder 360 degrees, while tilting the cradle forward and back for the optimum angle. The RAM-TUBE™ 2008 tube holder integrates the unique rubber ball and socket design with a self draining and quick to access tube for the butt of most any fishing rod. The tube is made of extremely durable composite. Ideally suited for anything from Kayaks to Tournament boats, this compact and simple design is ready for your next day on the water.

Product Information

Overview

The RAP-119-TRA1U consists of the RAM-TUBE™ 2008 fishing rod holder and Track Ball™ for any track system including the RAM Tough-Track™. Offering the patented RAM rubber ball and socket feature, you can rotate the rod holder 360 degrees, while tilting the cradle forward and back for the optimum angle. The RAM-TUBE™ 2008 tube holder integrates the unique rubber ball and socket design with a self draining and quick to access tube for the butt of most any fishing rod. The tube is made of extremely durable composite. Ideally suited for anything from Kayaks to Tournament boats, this compact and simple design is ready for your next day on the water.

Specifications
hardware included	(1) Friction Washer (1) 1/4"-20 x 7/8" T-Bolt
tube dimensions	Inside Diameter: 1.9" Inside Length: 10"
t bolt dimensions	.48" x .95"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	High strength composite
packaging type	Poly Bag
Weight	1.03 lb

RAM® Tube™ Rod Holder with RAM® Track Ball™ Base

Questions about our products? Email us for support.

RAM® Tube™ Rod Holder with RAM® Track Ball™ Base

Part#: RAP-119-TRA1U

UPC: 793442954887

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
