Overview

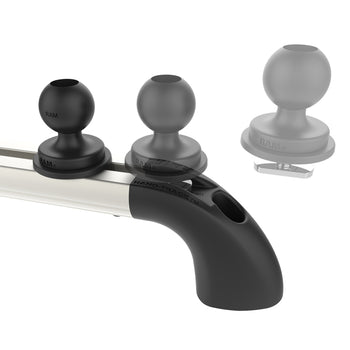

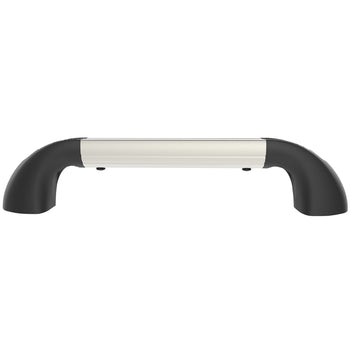

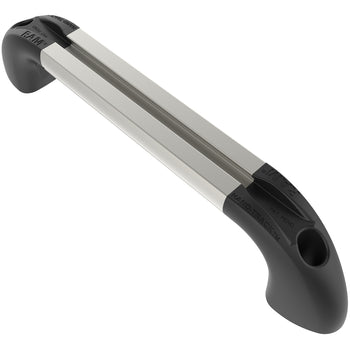

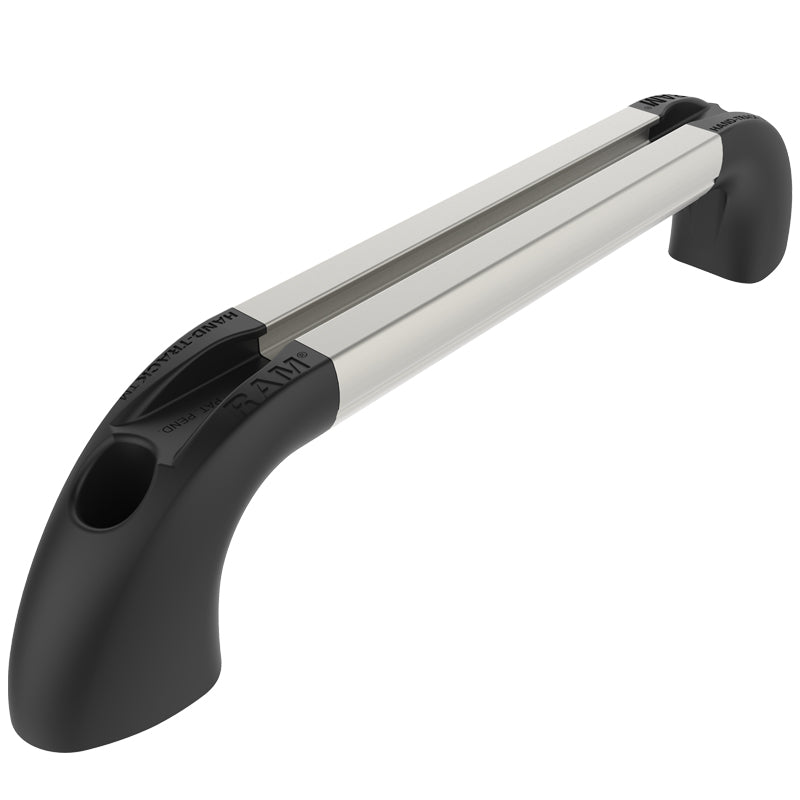

Available in lengths ranging from 4" to 30", the RAM® Hand-Track™ is an ideal track and handrail solution for ATVs, boats, kayaks and more. Compatible with all RAM track mounts, the Hand-Track includes two top-loading end caps for attaching to a flat surface. To combine multiple tracks, pair with any top-loading Hand-Track Extension with Center Connector.
hardware included:
Assembly Hardware
product dimensions:
Overall Length: 12"
Overall Width: 1.38"
Overall Height: 2.5"
Inside Track Length: 6"
hole pattern:
2-Hole 9.5" Center-to-Center
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
0.55 lb
Questions & Answers
Have a Question?
-
How long of a screw is needed?
In the resources tab you will see a HAND-TRACK INSTALLATIONGUIDE. This will have your suggested screw size.
-
If this is mounted on a flat surface, what is the distance from that surface to the underside of the track?
There is 1.5" of clearance between the bottom of the track and the flat mounting surface of the Hand-Track end bases of the RAM-TRACK-H12U.
-
What size are the mounting holes?
The diameter of each mounting hole is 1/4", intended to support a 1/4"-20 screw.
