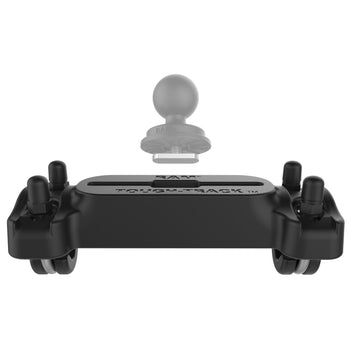

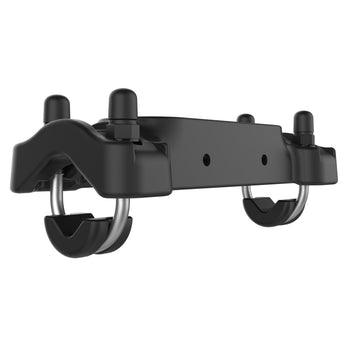

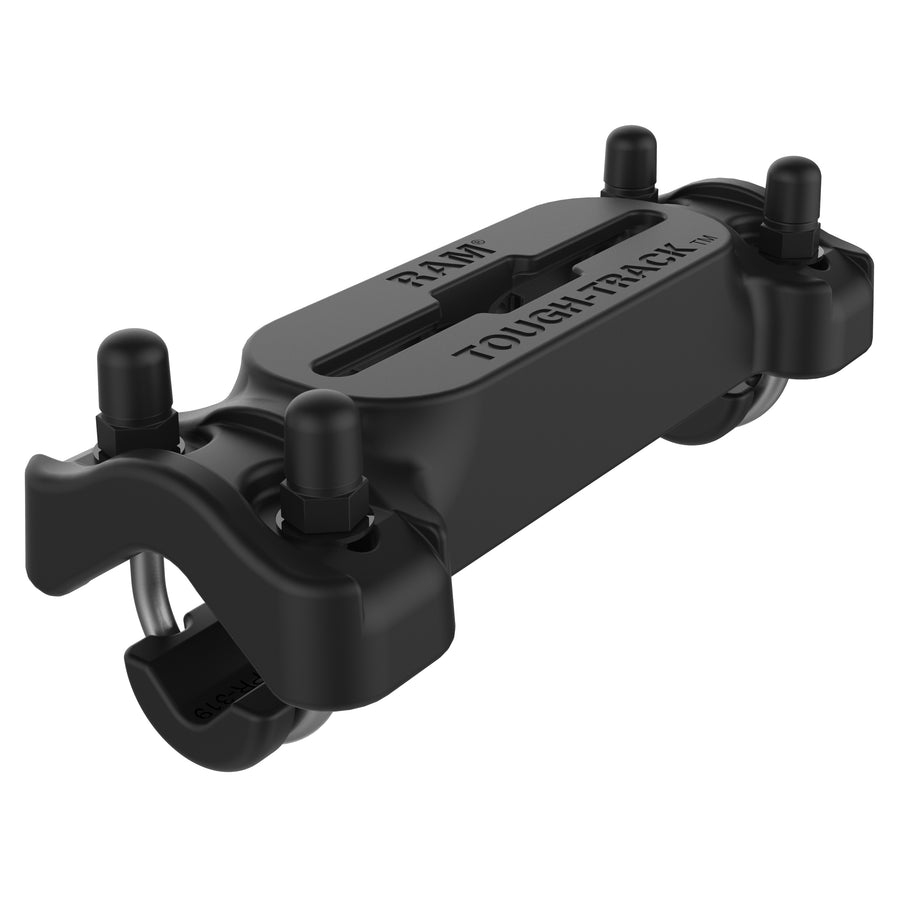

RAM® Tough-Track™ - 4" Track for 5/8" - 1 1/4" Rails | |
---|---|
Part #:
RAP-TRACK-B7U
UPC:
793442007750
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|
Overview | With the RAM® Tough-Track™ for tubes, bars, and rails, create an ideal track mounting surface compatible with a wide variety of RAM® Track Ball™ mounts and components. This 7” RAM® Tough-Track™ features a two-hole AMPS hole pattern on the side for attaching a RAM® diamond base. All necessary U-bolt hardware is included to attach the RAM® Tough-Track™ from 5/8” to 1 1/4” tubes, bars, and rails. Hardware for attaching to a 1 ½” tube, bar, or rail is available separately. Other options for attaching to irregular shaped rails include the RAM® Torque™ and strap clamp. |
Specifications | |
---|---|
hardware included | (2) 1/4"-20 U-Bolts for .625" - 1" Rails (2) 1/4"-20 U-Bolts for 1" - 1.25" Rails (2) U-Bolt Spacers (4) #12 Stainless Steel Washers (4) 1/4"-20 Nylock Washers (4) Rubber Caps |
product dimensions | Inside Track Length: 4" |
clamp range | .625" - 1.25" diameter |
materials | High strength composite |
packaging type | Poly Bag |
Weight | 0.65 lb |
Kit Components
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAP-TRACK-B7U!
We'll email you once the item is available.
Overview
With the RAM® Tough-Track™ for tubes, bars, and rails, create an ideal track mounting surface compatible with a wide variety of RAM® Track Ball™ mounts and components. This 7” RAM® Tough-Track™ features a two-hole AMPS hole pattern on the side for attaching a RAM® diamond base. All necessary U-bolt hardware is included to attach the RAM® Tough-Track™ from 5/8” to 1 1/4” tubes, bars, and rails. Hardware for attaching to a 1 ½” tube, bar, or rail is available separately. Other options for attaching to irregular shaped rails include the RAM® Torque™ and strap clamp.
Features
- 4" of usable high strength composite track for track mounts: overall length of 7"
- RAM® Tough-Track™ utilizes u-bolt hardware for 5/8"-1.25" diameter rails; ideal for rails, tubes, roll cages and grab bars
- Compatible with B and C size RAM® track bases to attach action camera mounts, fishing rods, phone mounts, tablet mounts and more
- Backed by a lifetime warranty

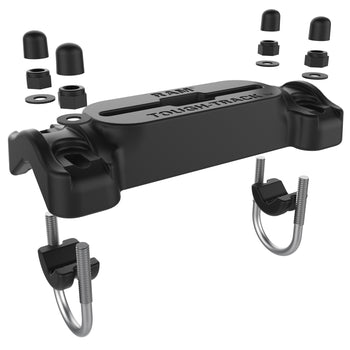

hardware included:

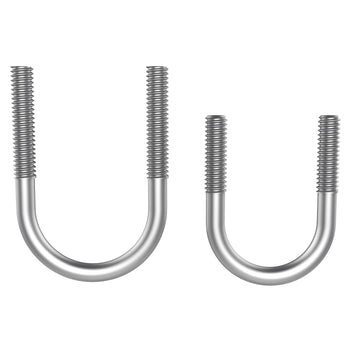

(2) 1/4"-20 U-Bolts for .625" - 1" Rails
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(2) U-Bolt Spacers
(4) #12 Stainless Steel Washers
(4) 1/4"-20 Nylock Washers
(4) Rubber Caps
product dimensions:
Inside Track Length: 4"
clamp range:
.625" - 1.25" diameter
materials:
High strength composite
packaging type:
Poly Bag
Weight:
0.65 lb
