Overview

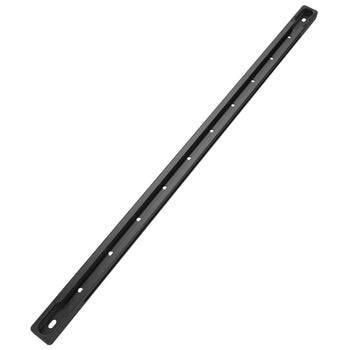

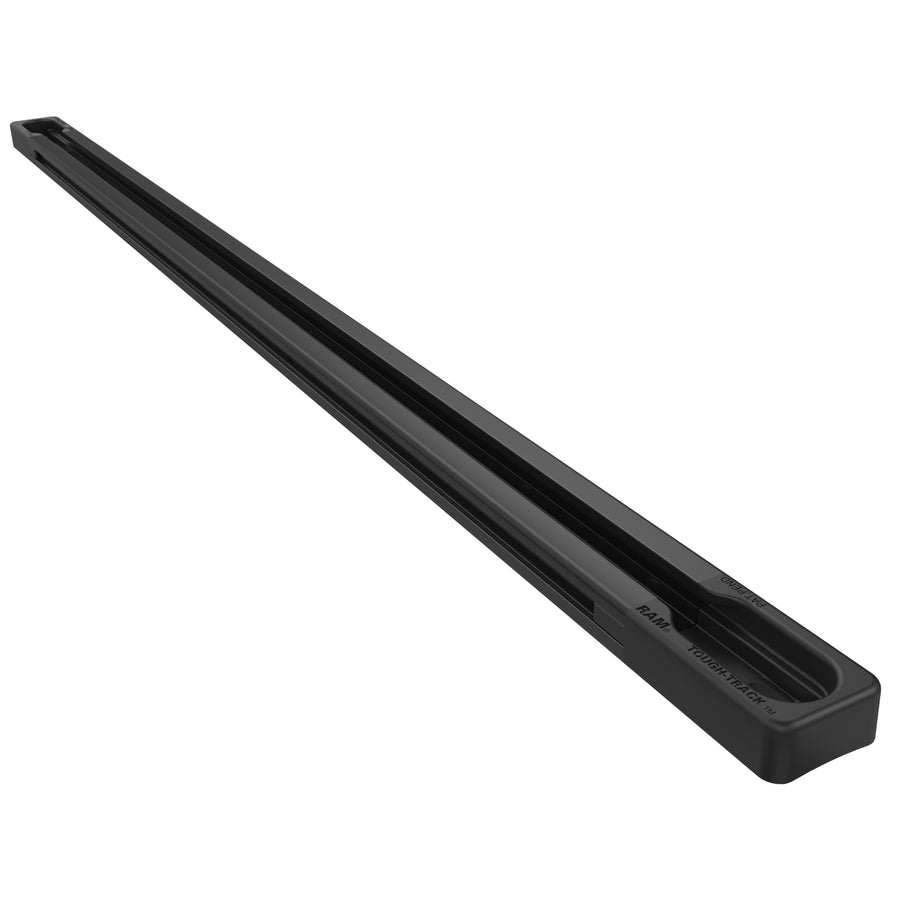

With the RAM® Tough-Track™, flat surface mounting possibilities are nearly endless for ATVs, cars, combines, motorboats, tractors, trucks, and more. The black anodized aluminum version of the RAM® Tough-Track™ can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included. Made to be a dependable and rugged mounting solution, the anodized aluminum provides a smooth slide across the track and anti-corrosion protection. The RAM-TRACK-EXA-17BU features 17” of usable track length (aluminum portion), while the included top-loading end caps add about 1.5” in length to each end (3” of additional length). Using the end caps allows for two installation options: either use both top-loading end caps to create insertion points on both ends of the track, or use one top-loading end cap and close the opposite end with the included flush end cap. This RAM® Tough-Track™ is compatible with the RAM® Center Loader and 90 Degree Connector, as well as a wide variety of RAM® track bases to attach devices like action cameras, fishing rods, phones, and tablets.
Features
- 17" of usable aluminum track for track mounts: overall length of 20"
- RAM® Tough-Track™ can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included
- Modular top-loading end caps allow for additional track extensions and 90-degree connectors

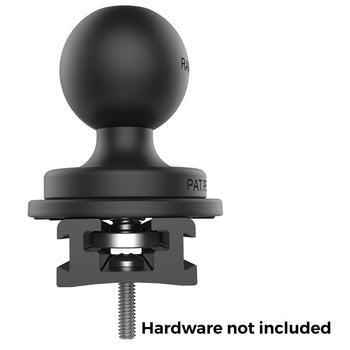

- Compatible with B and C size RAM® track bases to attach action camera mounts, fishing rods, phone mounts and tablet mounts
- Backed by a lifetime warranty
product dimensions:
Overall Length: 20"
Overall Width: .9"
Track Thickness: .43"
Inside Track Length: 17"
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
0.71 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
What is the distance between centers for the mounting holes? How thick is the t-bolt?
Hole to hole on this Tough Track are 1.75" apart.
The T-bolt is 2mm thick at the base. -
2 questions: will this track system accept other "T" track style accessories? What is the recommended load capacity of the track?
This made to fit t-bolts .48" x .95", as long as the t-bolts you're using are approximately the same dimensions they should work well. Our weight capacities are based on the weight that the ball connection will support under most conditions, we do not have specific weight tolerances for the tracks themselves. Our B size ball bases (1" diameter ball) is recommended for devices up to 2 lbs or 1lb in very dynamic conditions. The C size ball bases (1.5" diameter ball) are rated at 4lbs or 3lbs in very dynamic conditions.
