Overview

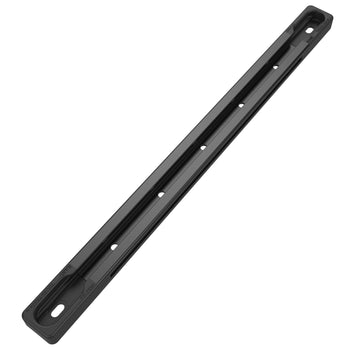

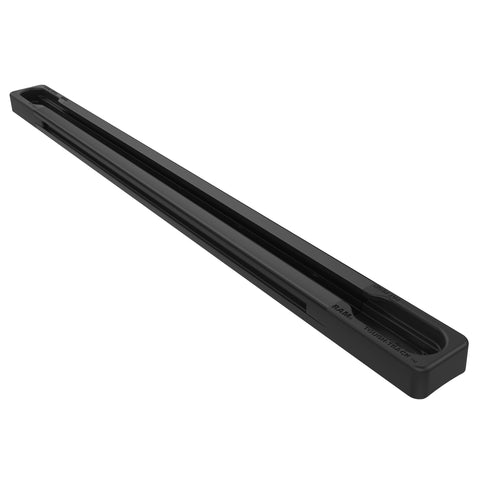

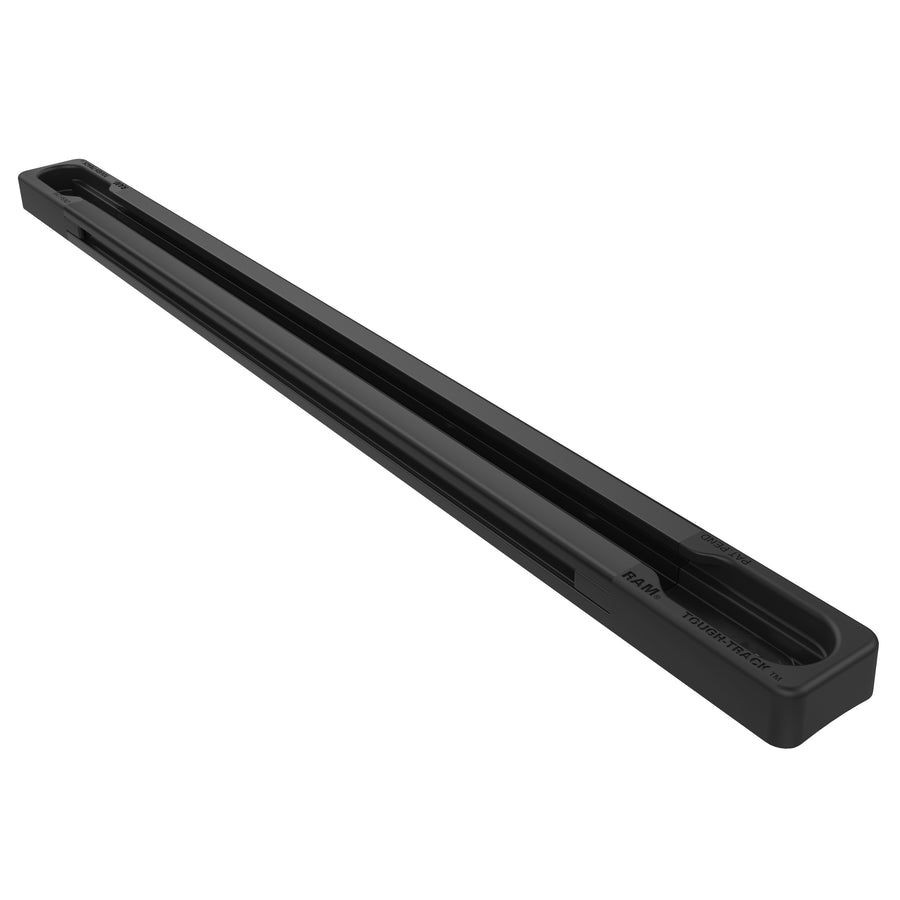

With the RAM® Tough-Track™, flat surface mounting possibilities are nearly endless for ATVs, cars, combines, motorboats, tractors, trucks, and more. The black anodized aluminum version of the RAM® Tough-Track™ can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included. Made to be a dependable and rugged mounting solution, the anodized aluminum provides a smooth slide across the track and anti-corrosion protection. The RAM-TRACK-EXA-9BU features 9” of usable track length (aluminum portion), while the included top-loading end caps add about 1.5” in length to each end (3” of additional length). Using the end caps allows for two installation options: either use both top-loading end caps to create insertion points on both ends of the track, or use one top-loading end cap and close the opposite end with the included flush end cap. This RAM® Tough-Track™ is compatible with the RAM® Center Loader and 90 Degree Connector, as well as a wide variety of RAM® track bases to attach devices like action cameras, fishing rods, phones, and tablets.
Features
- 9" of usable aluminum track for track mounts: overall length of 12"

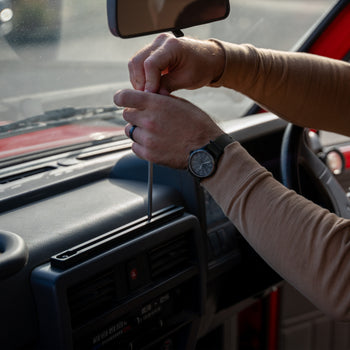

- RAM® Tough-Track™ can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included
- Modular top-loading end caps allow for additional track extensions and 90-degree connectors

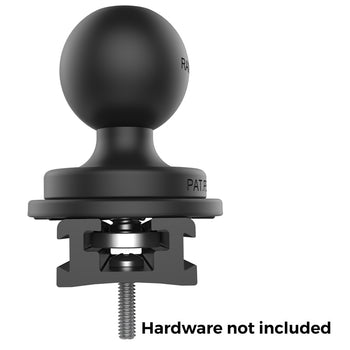

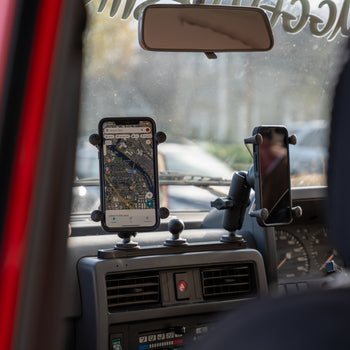

- Compatible with B and C size RAM® track bases to attach action camera mounts, fishing rods, phone mounts and tablet mounts
- Backed by a lifetime warranty
product dimensions:
Overall Length: 12"
Overall Width: .9"
Track Thickness: .43"
Inside Track Length: 9"
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
0.28 lb
Questions & Answers
Have a Question?
-
Is the bottom of the track flat or is it slightly concave?
This track is flat on the bottom.
-
Can the track be customize and cut to length?
We do not customize the tracks, but we have lots of different lengths and styles of tracks that can be found in this link:
https://rammount.com/collections/shop?query=track -
What is the width of the track? 1"?
Our RAM-TRACK-EXA-9BU track is 0.875" wide.
-
What is the size of the T-Bolt that would be used on this track? Can just the T-Bolt be ordered?
The t-bolts RAM uses with the Tough Tracks like the RAM-TRACK-EXA-9BU are a 1/4"-20 x 7/8" long threaded posts with a "T" that is .48" x .95" x .11". Those t-bolts are not available separately.
