RAM® Powered Dock + USB-A for Honeywell CT40/45/47
$149.99
Power + Peripheral
Features
- Spring-loaded form-fit dock perfectly secures the Honeywell CT40/45/47 Handheld Computer; provides power through 1-meter long DC connector and supports a single peripheral via USB Type-A pigtail connector
- Compatible with the Honeywell hand strap accessory
- Compatible with RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

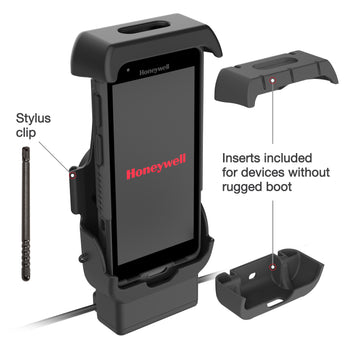

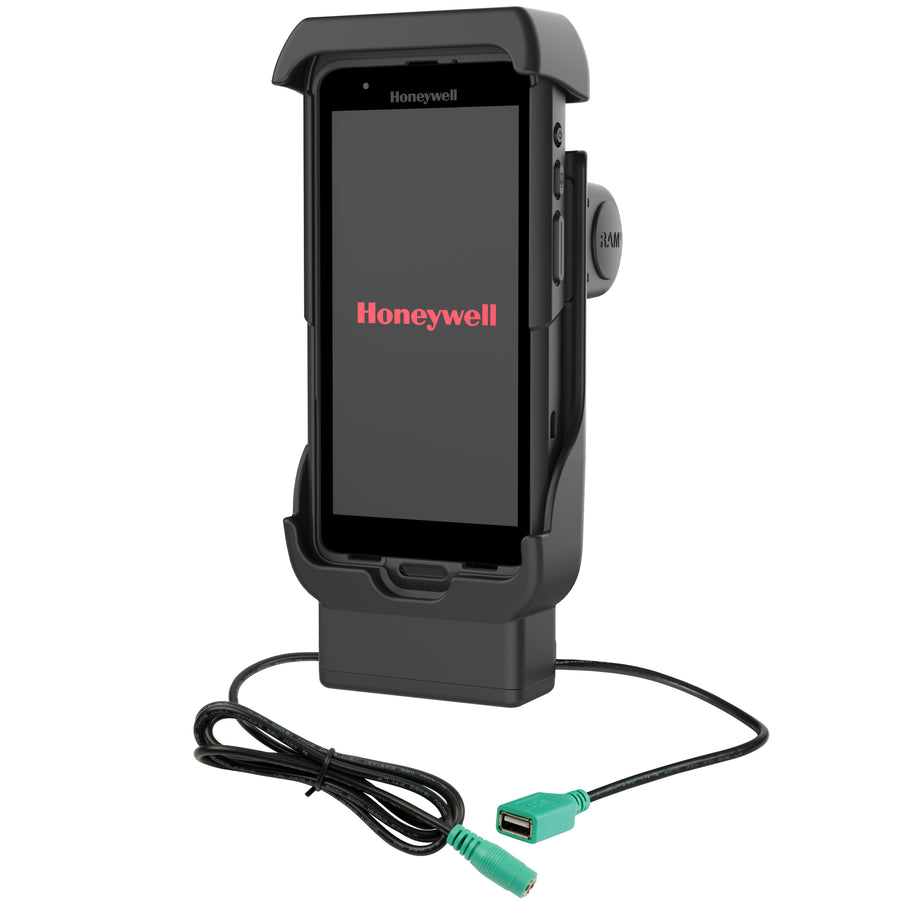

The RAM® Powered Dock + USB-A for Honeywell CT40/45/47 (RAM-HOL-HON12PDU) is a spring-loaded, form-fit powered dock that allows workers to secure and charge their Honeywell device. Power to the device is delivered via a 1m long female 5.5mm DC barrel connector and supports a single peripheral device via USB-A female connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use and is designed to accommodate OEM accessories, such as the hand strap. The top cup of the holder features a cut-out, so workers can utilize the device's scanner while docked. This holder comes with optional inserts to support devices with or without the protective rubber boot. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond base and double ball mount, allowing for a wide variety of mounting options (hardware included).
RAM® Powered Dock + USB-A for Honeywell CT40/45/47
Overview
The RAM® Powered Dock + USB-A for Honeywell CT40/45/47 (RAM-HOL-HON12PDU) is a spring-loaded, form-fit powered dock that allows workers to secure and charge their Honeywell device. Power to the device is delivered via a 1m long female 5.5mm DC barrel connector and supports a single peripheral device via USB-A female connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use and is designed to accommodate OEM accessories, such as the hand strap. The top cup of the holder features a cut-out, so workers can utilize the device's scanner while docked. This holder comes with optional inserts to support devices with or without the protective rubber boot. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond base and double ball mount, allowing for a wide variety of mounting options (hardware included).
hardware included
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
product dimensions
Overall Height: 7.83"
Overall Width: 3.7"
Overall Depth: 3.17"
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
dock power specs
5VDC
input voltage
5 VDC
input connector
5.5mm DC Connector
input cable length
1 Meter
output connector
USB 2.0 Type A Female
output cable length
1 Meter
peripheral output
500mAh
certifications
FCC, IC, CE, UKCA, RoHS, WEEE
Warranty
3 year warranty
Weight
0.8 lb
