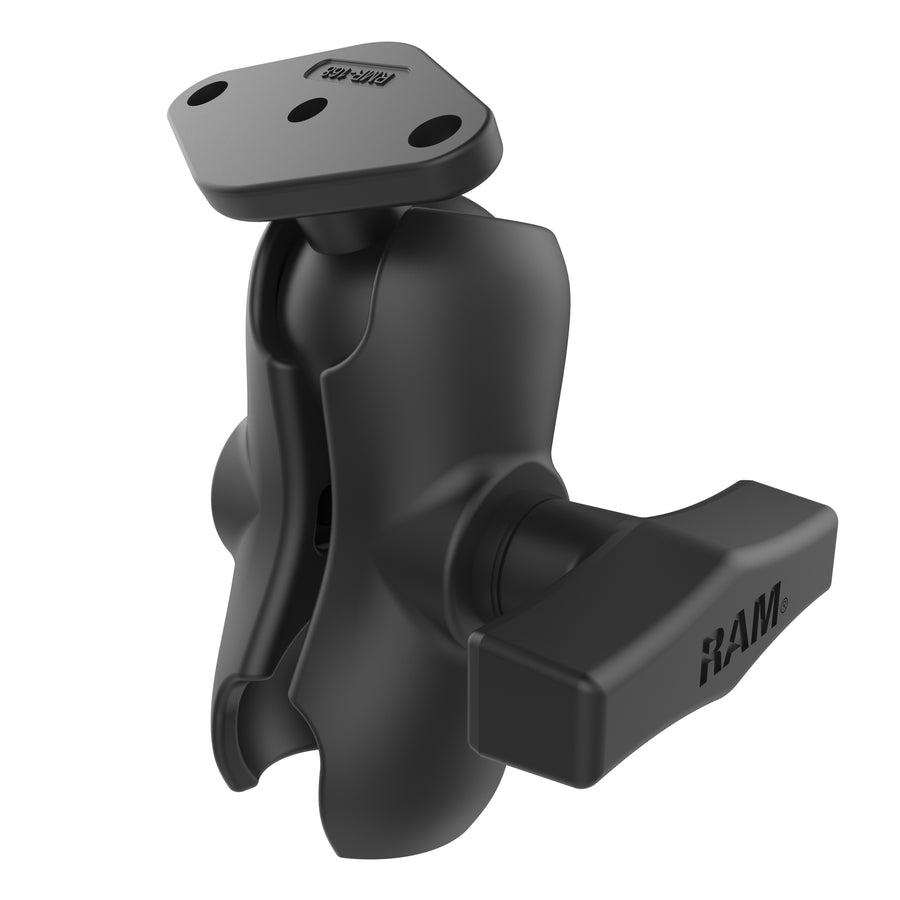

RAM^® Double Socket Arm with Diamond Ball Plate - C Size Short
Part #: RAM-103-B-238U UPC: 793442011337 Features Diamond plate connects to RAM^® device holders containing the universal AMPS 2-hole pattern Includes C size short length double socket arm 3.56" end to end with 2.5" socket-to-socket length; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Double Socket Arm with Diamond Ball Plate - C Size Short

Part #: RAM-103-B-238U UPC: 793442011337

Features

Diamond plate connects to RAM^® device holders containing the universal AMPS 2-hole pattern
Includes C size short length double socket arm 3.56" end to end with 2.5" socket-to-socket length; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Double Socket Arm with Diamond Ball Plate - C Size Short

Product Information
Overview	The RAM-103-B-238U consists of the 1.5" C size diameter ball and socket system with one open socket end; RAM-201U-B socket arm is short length at 3.56" end to end with 2.5" socket-to-socket length. This mount is designed to be used with any of the C size RAM^® Mount bases or cradles with a 1.5" diameter rubber ball. The RAM-238U RAM^® Diamond Ball Base features industry standard AMPS 2-hole pattern and can be used as an adapter to attach a holder, or a mounting drill-down base.

Product Information

Overview

The RAM-103-B-238U consists of the 1.5" C size diameter ball and socket system with one open socket end; RAM-201U-B socket arm is short length at 3.56" end to end with 2.5" socket-to-socket length. This mount is designed to be used with any of the C size RAM^® Mount bases or cradles with a 1.5" diameter rubber ball. The RAM-238U RAM^® Diamond Ball Base features industry standard AMPS 2-hole pattern and can be used as an adapter to attach a holder, or a mounting drill-down base.

Specifications
socket to socket length	2.5"
hole pattern	2-Hole AMPS 1.912"
plate size	2.43" x 1.31"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.67 lb

Questions about our products? Email us for support.

RAM^® Double Socket Arm with Diamond Ball Plate - C Size Short

Part#: RAM-103-B-238U

UPC: 793442011337

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
